TS 20 Tiller Attachment

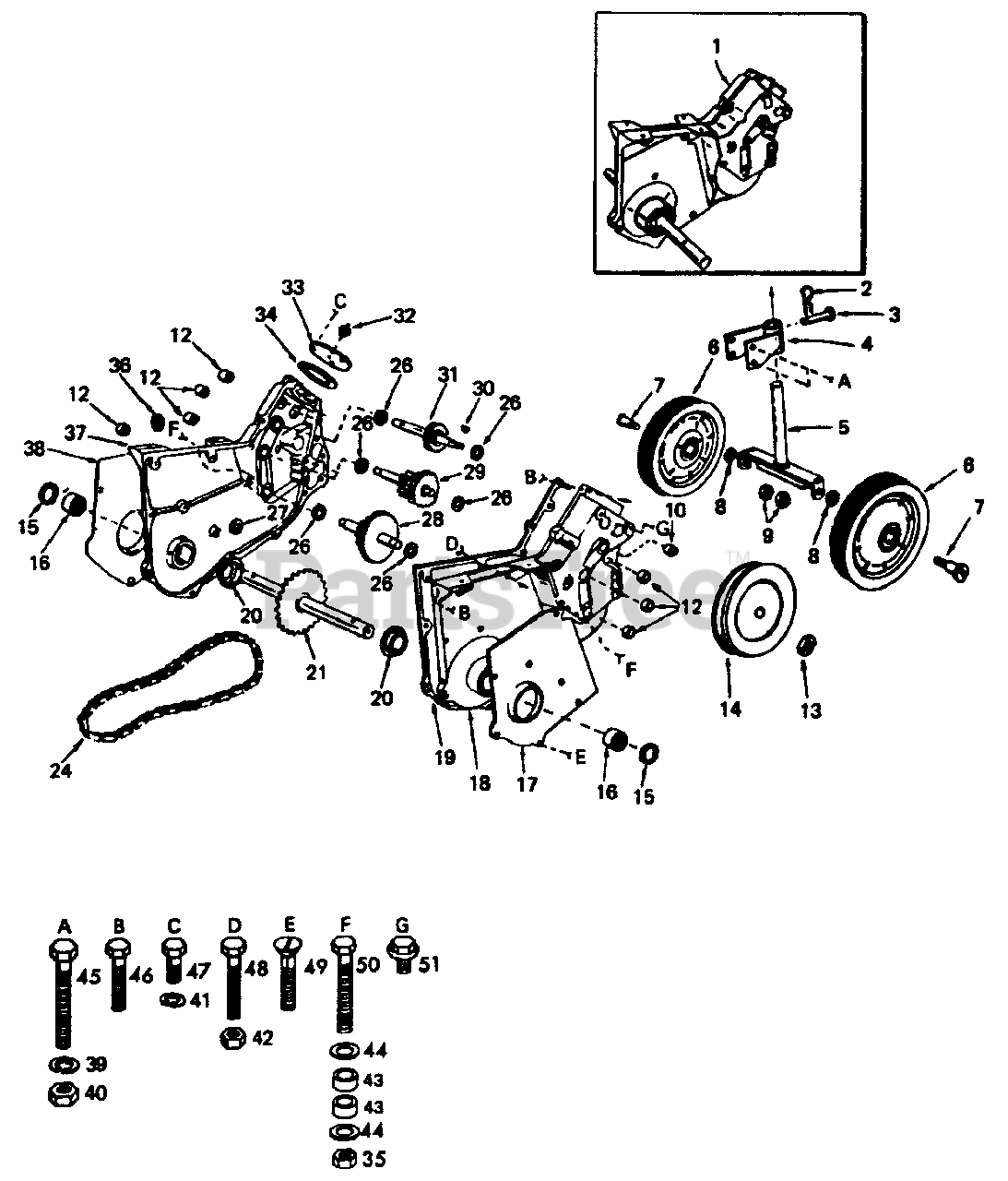

Transmission And Gauge Wheels Parts Diagram

  • Title

1

Husqvarna 634A562

Transmission

$

$

Not available

2

Husqvarna 9135R

Retainer Spring
(Superseded to 532009135)

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 4929H

Drilled Pan Head Rivet 3/8 x 1-3/4
(Superseded to 532004929)

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 634A61

Gauge Wheel Sleeve and Brackets

$

$

Currently unavailable

5

Husqvarna 634A559

Gauge Wheel Adjusting Shaft and Bracket

$36.99

$

Usually ships in 3-10 days

0

6

Husqvarna 2557J

Wheel

$

$

Currently unavailable

7

Husqvarna 4898H

Shoulder Bolt
(Superseded to 532004898)

$

$

Not available

8

Husqvarna 19131311

Washer 13/32 x 13/16 x 11 Ga.
(Superseded to 582732401)

$6.99

$

In Stock, Qty 12

0

9

Husqvarna 73560600

Locknut 3/8-16 UNC Nylock

$

$

Not available

10

Husqvarna 5020J

Needle Bearing
(Superseded to 532005020)

$17.99

$

In Stock, Qty 6

0

12

Husqvarna 4895H

Needle Bearing
(Superseded to 532004895)

$17.99

$

In Stock, Qty 15

0

13

9204H

Locknut 1/2-20 UNF

$

$

Not available

14

Husqvarna 4932H

Input Sheave

$

$

Not available

15

Husqvarna 4910H

Oil Seal

$

$

Not available

16

Husqvarna 3039R

Needle Bearing
(Superseded to 532003039)

$12.99

$

In Stock, only 3 left!

0

17

Husqvarna 4877H1

Gear Case Shield L.H.

$

$

Currently unavailable

18

Husqvarna 634A553

Gear Case and Bearings L.H. Half

Note: (Inc. Key No's. 10,12,16 & 20)

$

$

Not available

19

Husqvarna 2601R

Gasket

$

$

Not available

20

Husqvarna 4870H

Thrust Cap

$

$

Not available

21

Husqvarna 634A555

Tine Shaft and Sprocket

$

$

Not available

24

Husqvarna 2600R

Roller Chain
(Superseded to 532002600)

$

$

Not available

26

Husqvarna 1370H

Thrust Washer
(Superseded to 532001370)

$6.49

$

In Stock, only 2 left!

0

27

Husqvarna 4912H

Gasket

$

$

Not available

28

Husqvarna 634A59

2nd Reduction Shaft and Gears

$

$

Not available

29

Husqvarna 634A58

1 st Reduction Shaft and Gears

$

$

Not available

30

Husqvarna 9858M1

Woodruff Key. 3/16 x 5/8

$

$

Not available

31

Husqvarna 634A57

Input Shaft and Pinion

$

$

Not available

32

Husqvarna 5855H

Relief Valve
(Superseded to 532005855)

$

$

Not available

33

Husqvarna 6672H

Gear Shift Cover

$

$

Currently unavailable

34

Husqvarna 4913H

Gasket
(Superseded to 532004913)

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 1685H

Locknut 5/16-18 UNC

$

$

Not available

36

Husqvarna 13060400

Pipe Plug 1/2-14 N.P.T.
(Superseded to 813060400)

$

$

Not available

37

Husqvarna 634A554

Gear Case and Bearings R.H. Half

Note: (Inc. Key No's. 12, 16 & 20)

$

$

Not available

38

Husqvarna 4878H1

Gear Case Shield R.H.

$

$

Not available

39

Husqvarna 10040600

Washer Lock 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

40

Husqvarna 73220600

Hex Nut 3/8-16 UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

41

Husqvarna 10040500

Washer Lock, Hvy. Hel. Spring
(Superseded to 810040500)

$3.99

$

In Stock, only 3 left!

0

42

Husqvarna 73220500

Hex Nut 5/16-18 UNC
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 7850H

Spacer

$

$

Not available

44

Husqvarna 19111116

Washer 11/32 x 11/16 x 16 Ga.

$

$

Not available

45

Husqvarna 74760636

Hex Bolt 3/8-16 x 2-1/4
(Superseded to 874760636)

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 17860524

Hex Hd. Roll-Lok Thd. Forming Screw 5/16-18 x 1-1 /2

$

$

Not available

47

Husqvarna 74760512

Hex Bolt 5/16-18 x 3/4

$

$

Not available

48

Husqvarna 74760532

Hex Bolt 5/16-18 x 2
(Superseded to 874760532)

$2.99

$

Usually ships in 3-10 days

0

49

Husqvarna 20000524

Flat Hd. Slotted Roll-Lok Thd. Forming Screws 5/16-18 x 3/4
(Superseded to 820000524)

$2.99

$

Usually ships in 3-10 days

0

50

Husqvarna 74780596

Hex Bolt 5/16-18 x 6 Gr. 5

$

$

Not available

51

Husqvarna 15760512

Screw Mach. Hex Hd. 5/16-18 x 3/4
(Superseded to 815760512)

$2.99

$

Usually ships in 3-10 days

0
