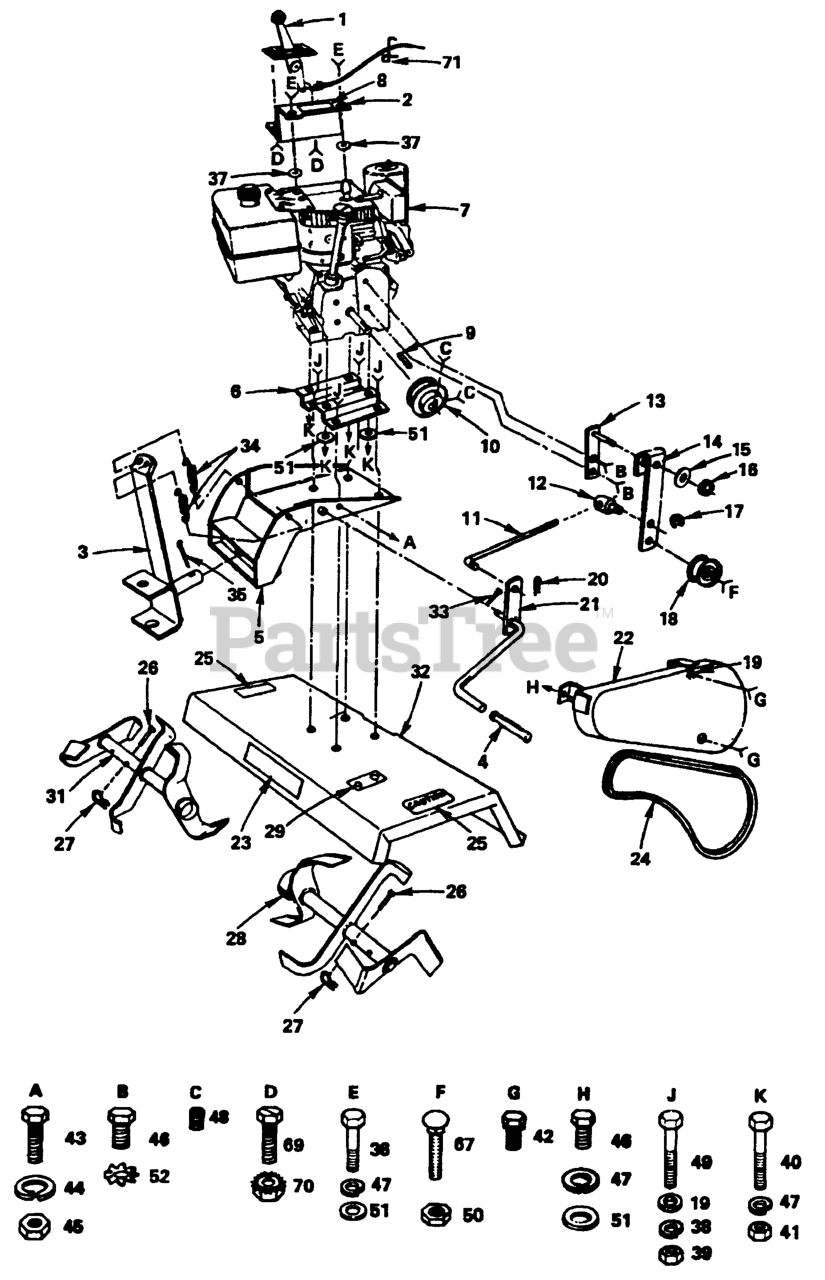

TS 200ER - Husqvarna TS 20 Tiller Attachment (1992-04) Engine And Tines Parts Diagram

TS 20 Tiller Attachment

Engine And Tines Parts Diagram

  • Title

1

Husqvarna 124533X

Control Throttle

$

$

Currently unavailable

2

Husqvarna 6924J

Bracket, Throttle Control
(Superseded to 583773901)

$6.99

$

Usually ships in 3-10 days

0

3

Husqvarna 677A860

Hitch Yoke Assembly

$

$

Not available

4

Husqvarna 4379H

Grip, Handle

$

$

Not available

5

Husqvarna 677A855

Hitch Channel Assembly

$

$

Not available

6

Husqvarna 6922R

Plate, Adapter

$

$

Not available

7

Engine 8 H.P., Tecumseh

$

$

Not available

8

Husqvarna 104867X

Decal, Instruction, Engine

$

$

Currently unavailable

9

Husqvarna 4914H

Square Key 1/4 x 1-1/4
(Superseded to 532004914)

$2.99

$

Usually ships in 3-10 days

0

10

Husqvarna 8249R

Engine Sheave

$32.99

$

Usually ships in 3-10 days

0

11

Husqvarna 6652H

Belt Tightener Link

$2.49

$

Usually ships in 3-10 days

0

12

Husqvarna 6656H

Adjusting Pin
(Superseded to 583772101)

$2.99

$

Usually ships in 3-10 days

0

13

Husqvarna 624A12

Idler Support Plate and Pivot

$

$

Not available

14

Husqvarna 2360J

Idler Arm

$

$

Not available

15

Husqvarna 19151116

Washer 15/32 x 11/16 x 16 Ga.

Note: (0 - 2 as required)

$

$

Not available

16

Husqvarna 12000015

E-Ring
(Superseded to 583607401)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 6683H

E-Ring

$

$

Currently unavailable

18

Husqvarna 4933H

Idler Pulley
(Superseded to 583768601)

$17.99

$

Usually ships in 3-10 days

0

19

Husqvarna 19131414

Washer 13/32 x 7/8 x 14 Ga.
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

20

Husqvarna 4497H

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

21

Husqvarna 626A430

Lever and Arm

$

$

Not available

22

Husqvarna 634A726

Belt Guard and Supports

$

$

Currently unavailable

23

Husqvarna 125702X

Decal, Tine Shield

$

$

Currently unavailable

24

Husqvarna 102655X

V-Belt

$

$

Currently unavailable

25

Husqvarna 1989J

Decal, Caution

$

$

Currently unavailable

26

Husqvarna 4929H

Drilled Pan Hd. Rivet 3/8 x 1-3/4
(Superseded to 532004929)

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 3146R

Clip, Hairpin
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 626A401

Tine Weldment, L.H.

$

$

Not available

29

Husqvarna 1986J

Decal, On/Off

$

$

Currently unavailable

31

Husqvarna 626A402

Tine Weldment, R.H.

$

$

Not available

32

Husqvarna 8224R

Tine Shield

$

$

Currently unavailable

33

Husqvarna 76020516

Cotter Pin 5/32 x 1

$

$

Currently unavailable

34

Husqvarna 8905R

Spring
(Superseded to 532008905)

$28.99

$

Usually ships in 3-10 days

0

35

Husqvarna 76020824

Cotter Pin 1/4 x 1-1/2

$2.49

$

Usually ships in 3-10 days

0

36

Husqvarna 74760516

Bolt, Hex 5/16-18 x 1 Gr. 2

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$

$

Not available

37

Husqvarna 19131311

Washer 13/32 x 13/16 x 11 Ga.
(Superseded to 582732401)

$6.99

$

In Stock, Qty 12

0

38

Husqvarna 10040600

Washer Lock, Hvy. Hel. Spring
(Superseded to 810040600)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$4.99

$

In Stock, Qty 15

0

39

Husqvarna 73220600

Nut, Hex 3/8-16 UNC
(Superseded to 873220600)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$6.49

$

In Stock, only 2 left!

0

40

Husqvarna 74760524

Bolt, Hex 5/16-18 x 1-1/2 Gr. 2

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$2.49

$

Usually ships in 3-10 days

0

41

Husqvarna 73220500

Nut, Hex 5/16-18 UNC
(Superseded to 873220500)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 15760512

Hex Bolt with Sems Ext. Washer Lock 5/16-18 UNC x 3/4
(Superseded to 815760512)

$2.99

$

Usually ships in 3-10 days

0

43

Husqvarna 74760416

Hex Bolt 1/4-20 x 1

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$

$

Currently unavailable

44

Husqvarna 10040400

Washer Lock 1/4
(Superseded to 810040400)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$3.99

$

In Stock, only 2 left!

0

45

Husqvarna 73220400

Hex Nut 1/4-20 UNC

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$

$

Not available

46

Husqvarna 74770512

Hex Bolt 5/16-24 x 3/4

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$

$

Not available

47

Husqvarna 10040500

Washer Lock 5/16
(Superseded to 810040500)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$3.99

$

In Stock, only 2 left!

0

48

Husqvarna 23200506

Hex Socket Set Screw 5/16-18x3/8

$2.49

$

Usually ships in 3-10 days

0

49

Husqvarna 74760624

Hex Bolt 3/8-16 x 1-1/2

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$

$

Not available

50

Husqvarna 73350600

Hex Jam Nut 3/8-16 UNC

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$

$

Not available

51

Husqvarna 19111116

Washer 11/32 x 11/16 x 16 Ga.

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$

$

Not available

52

Husqvarna 11050500

Washer Lock External Tooth 5/16

$

$

Currently unavailable

67

Husqvarna 72250614

Bolt, Carriage 3/8-16 x 1-3/4

$

$

Currently unavailable

69

Husqvarna 71091008

Screw

$

$

Not available

70

Husqvarna 73731000

Nut, Keps #10-24 UNC

$2.49

$

Usually ships in 3-10 days

0

71

Husqvarna 4171R

Clip - Insulated

$

$

Not available

72

Husqvarna 104304X

Decal, Throttle

$

$

Not available

Husqvarna 136650

Owner's Manual, English

$7.99

$

Usually ships in 3-10 days

0

Husqvarna 136651

Owner's Manual, French

$

$

Not available
