TS 1846 A - Electrolux/AYP Lawn Tractor (1996) ENGINE Parts Diagram

Lawn Tractor

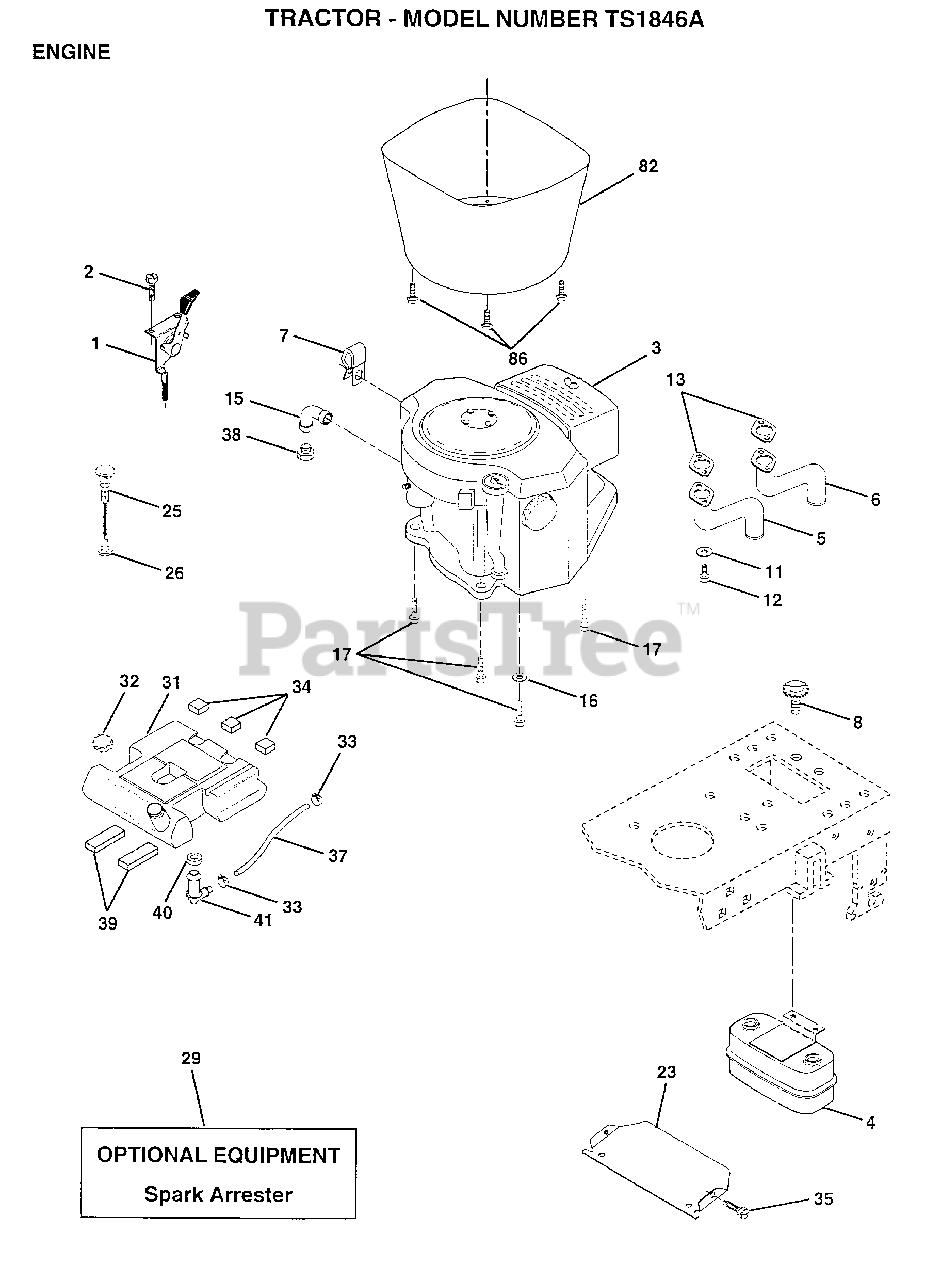

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 132747

SUB= 532132748
(Superseded to 532132747)

$

$

Not available

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

REFER TO IMAGE

$

$

Not available

4

Electrolux/AYP 149723

MUFFLER.TW.LOTONE
(Superseded to 532149723)

$74.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 146702

TUBE MANIFOLD LH

$

$

Not available

6

Electrolux/AYP 146701

TUBE MANIFOLD RH

$

$

Not available

7

Electrolux/AYP 138129

CLAMP.TUBE.DBL.EN
(Superseded to 532138129)

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 150176

BOLT.5/16-18.UNC
(Superseded to 532149741)

$7.49

$

In Stock, Qty 5

0

11

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 74570512

SCREW
(Superseded to 874570512)

$3.99

$

In Stock, only 4 left!

0

13

Electrolux/AYP 148428

GASKET-MUFFLER )

$

$

Not available

15

Electrolux/AYP 13240300

STREET ELBOW LT
(Superseded to 813240300)

$7.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

23

Electrolux/AYP 150554

SUB= 157405
(Superseded to 582989401)

$18.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 138672

"CONTROL.CHOKE.51"""
(Superseded to 532138672)

$

$

Not available

26

Electrolux/AYP 73920600

"NUT,KEPS 3/8-24IM"
(Superseded to 873920600)

$3.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 151346

TANK FUEL REAR
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 140527

CAP ASM FUEL
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

34

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

35

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 8543R

FUEL LINE T
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 13290300

PLUG T
(Superseded to 813290300)

$

$

Not available

39

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 139277

STEM.TANK.FUEL
(Superseded to 532139277)

$8.99

$

In Stock, Qty 8

0

82

Electrolux/AYP 151573

DUCT, AIR ONAN

$

$

Not available

86

Electrolux/AYP 152927

"SCREW-TT,10-32 FL"
(Superseded to 532152927)

$7.49

$

In Stock, only 2 left!

0
