TS 15H42 A - Electrolux/AYP Lawn Tractor (1996) ENGINE Parts Diagram

Lawn Tractor

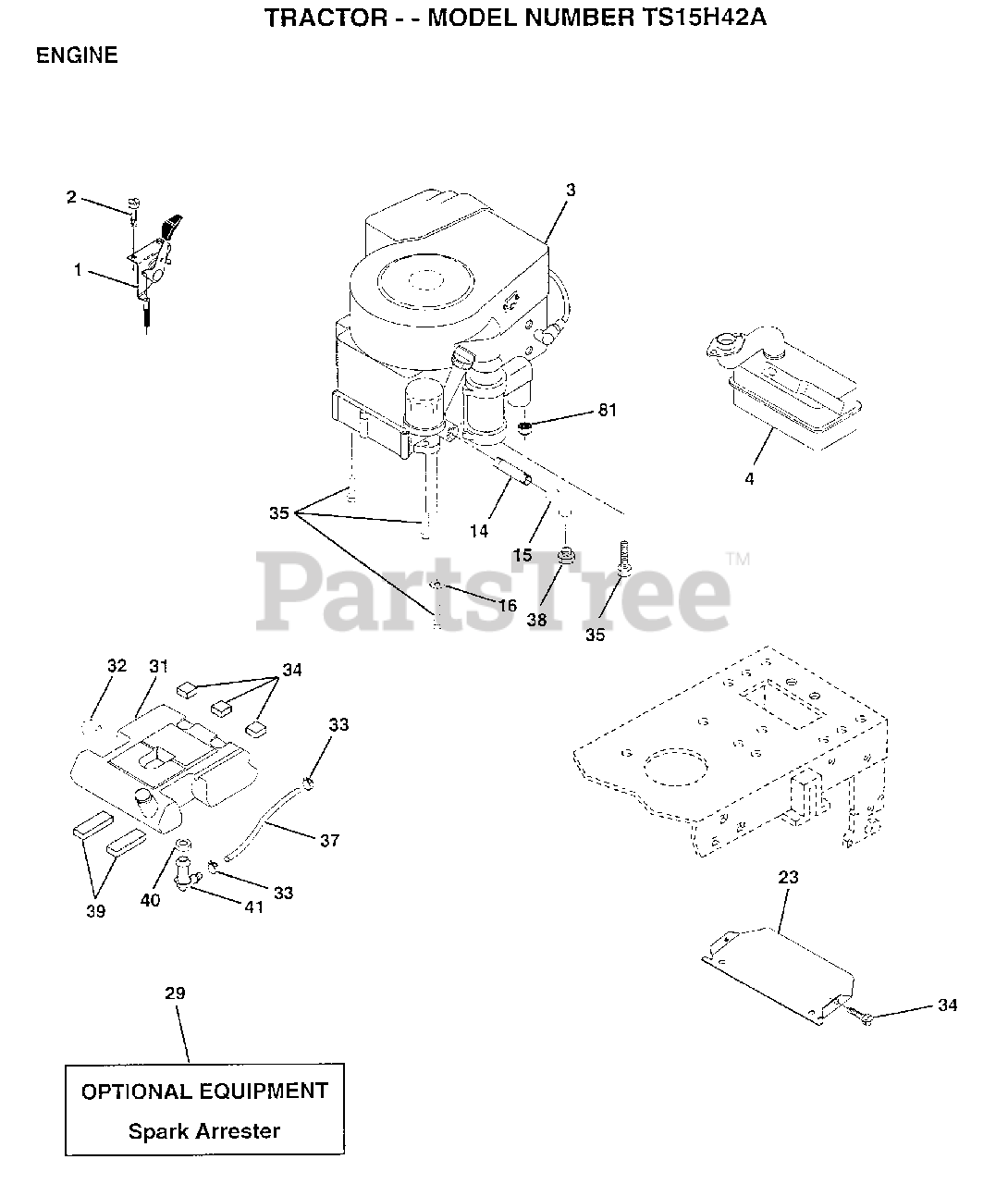

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 132752

"CONTROL,THROTTLE"
(Superseded to 532132752)

$

$

Not available

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

REFER TO IMAGE

$

$

Not available

4

Electrolux/AYP 147047

MUFFLER EXHAUST

$

$

Not available

13

$

$

Not available

14

Electrolux/AYP 13280324

PIPE NIPPLE
(Superseded to 813280324)

$

$

Not available

15

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 150554

SUB= 157405
(Superseded to 582989401)

$18.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 151346

TANK FUEL REAR
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 140527

CAP ASM FUEL
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

34

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

35

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 8543R

FUEL LINE T
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

38

REFER TO IMAGE

$

$

Not available

39

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 139277

STEM.TANK.FUEL
(Superseded to 532139277)

$8.99

$

In Stock, Qty 5

0

81

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available
