TS 148 (960410441-00) - Husqvarna 48" Garden Tractor (2019-08) STEERING Parts Diagram

48" Garden Tractor

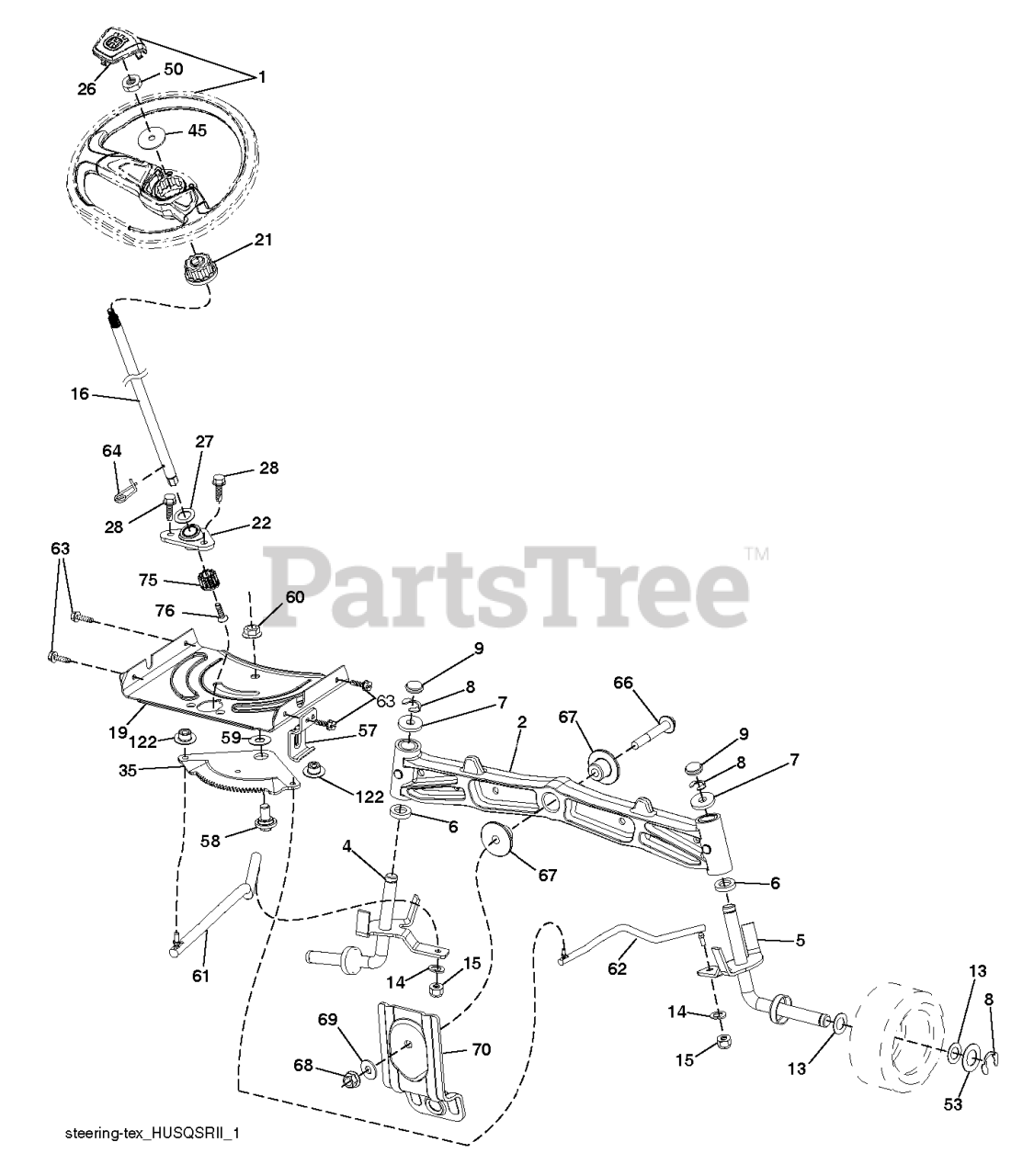

STEERING Parts Diagram

  • Title

60

Husqvarna 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 1 left!

0

19

Husqvarna 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

8

Husqvarna 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532444962

CAP.GEAR.SECTOR.TEX
(Superseded to 583576601)

$6.49

$

In Stock, only 3 left!

0

53

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532403088

SPINDLE.WELDED.RH.15"T
(Superseded to 538691201)

Note: RH

$22.99

$

In Stock, only 2 left!

0

76

Husqvarna 580683601

SCREW HEAD SOCKET LRVB

$4.99

$

In Stock, only 1 left!

0

45

Husqvarna 587016401

WASHER.3/8ID.2-3/8OD.12GA.PLTD

$4.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532197246

BRKT.UPSTOP.GT/LT.TEX

$12.99

$

In Stock, only 1 left!

0

70

Husqvarna 585338801

BRACKET.FRT.DECK.SUSP.RR.MT431

$9.99

$

Usually ships in 3-10 days

0

28

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 594949101

Steering

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 585029802

BEARING.SHAFT.STEER.LOWER.625
(Superseded to 587738901)

$17.99

$

In Stock, only 4 left!

0

50

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, only 3 left!

0

14

Husqvarna 596238701

Washers

$4.99

$

In Stock, Qty 19

0

1

Husqvarna 597866101

Service Kit

$74.99

$

Usually ships in 3-10 days

0

27

Husqvarna 596933401

Washers

$3.99

$

In Stock, only 1 left!

0

21

Husqvarna 586840201

ADAPTER.WHEEL.STEER.SPLND.ALUM
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

63

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

4

Husqvarna 532403087

SPINDLE.WELDED.LH.15"TEX
(Superseded to 596873601)

Note: LH

$17.99

$

In Stock, Qty 12

0

58

Husqvarna 532194747

BOLT.SHOULDER.SECTOR.P

$9.49

$

In Stock, only 3 left!

0

16

Husqvarna 587016002

SHAFT.STEER.2HIGH.SPLND.PLATED
(Superseded to 587738904)

$40.99

$

In Stock, Qty 14

0

9

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

61

Husqvarna 597070202

Links

Note: LH

$56.99

$

Usually ships in 3-10 days

0

62

Husqvarna 597070302

Links

Note: RH

$56.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532194737

BUSHING.PM.FRONT AXLE

$

$

Not available

7

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532006266

WASHER THRUST

$7.49

$

In Stock, Qty 11

0

35

Husqvarna 532194732

GEAR.SECTOR.PLATE.DDL.

$31.99

$

In Stock, Qty 20+

0

75

Husqvarna 580683701

PINION.ZINC PLATED
(Superseded to 587738906)

$5.99

$

In Stock, only 2 left!

0

68

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 13

0

2

Husqvarna 532195968

AXLE.CAST.IRON
(Superseded to 532413591)

Note: FRONT

$145.99

$

In Stock, only 2 left!

0

66

Husqvarna 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, only 4 left!

0

69

Husqvarna 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, only 1 left!

0

64

Husqvarna 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

13

Husqvarna 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0
