TS 142 TX (960410434-00) - Husqvarna 42" Garden Tractor (2019-06) CHASSIS & ENCLOSURES Parts Diagram

42" Garden Tractor

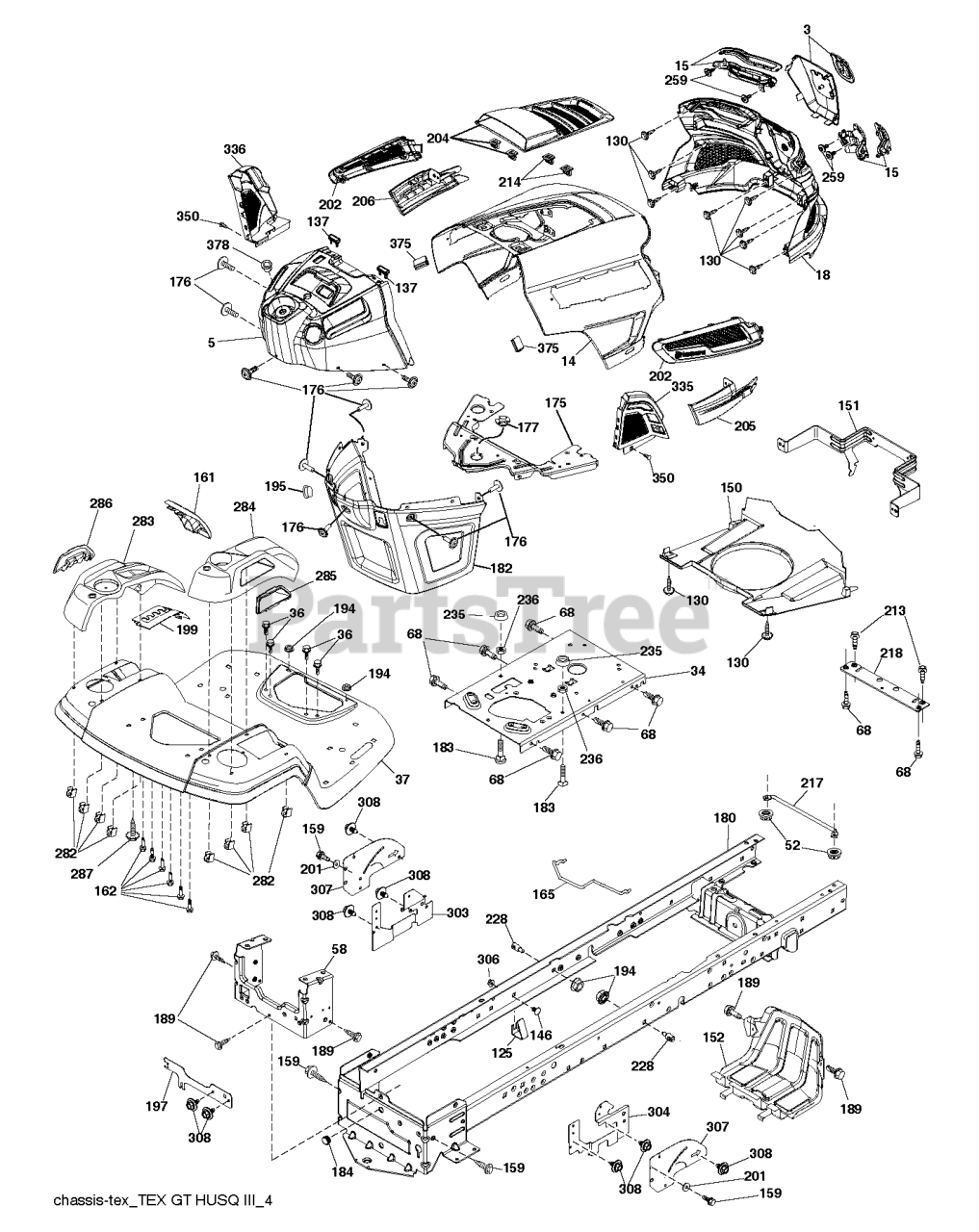

CHASSIS & ENCLOSURES Parts Diagram

  • Title

182

Husqvarna 586738602

DASH LOWER.HUSQ.PRED NO CRUISE

$79.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 597688201

Covers

$34.99

$

In Stock, only 2 left!

0

201

Husqvarna 819132016

WASHER
(Superseded to 819132012)

$3.49

$

In Stock, Qty 20+

0

378

Husqvarna 590849801

BUSHING FLANGE; PLASTIC

$4.99

$

In Stock, only 1 left!

0

37

Husqvarna 532441178

FENDER.TLT.FS.W/CPH/FW/RSF.668
(Superseded to 532423694)

$227.99

$

Usually ships in 3-10 days

0

304

Husqvarna 589009002

SHIELD.LWR.RH.LTGT.NON30.NOTCH

$20.99

$

Usually ships in 3-10 days

0

228

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

259

Husqvarna 596434001

Screws

$3.99

$

Usually ships in 3-10 days

0

161

Husqvarna 532439781

WINDOW.FUEL.LT.HUSQ.TEX.498

$7.99

$

In Stock, Qty 9

0

235

Husqvarna 596564201

Spacers

$5.99

$

Usually ships in 3-10 days

0

194

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

183

Husqvarna 595305701

Screws

$4.99

$

In Stock, Qty 20+

0

184

Husqvarna 587554101

PLUG.DEMO.625

$6.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532196826

SUPPORT.TANK.REAR.W/TEX

$31.99

$

Usually ships in 3-10 days

0

336

Husqvarna 532445309

COVER-LH.LOWER.DASH.GT2.BLACK

$37.99

$

In Stock, Qty 19

0

15

Husqvarna 597867901

Service Kit

$62.99

$

Usually ships in 3-10 days

0

197

Husqvarna 589204602

SHIELD.DRAWBAR.LT.REAR.TANK

$13.99

$

Usually ships in 3-10 days

0

162

Husqvarna 596134101

Screws

$3.99

$

In Stock, Qty 19

0

205

Husqvarna 532439730

SIDE.TRIM.RH.GT.HUSQ.II

$17.99

$

In Stock, only 4 left!

0

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 14

0

34

Husqvarna 580910801

PLATE.ENGINE.WELDED.CHASSIS

$74.99

$

Usually ships in 3-10 days

0

202

Husqvarna 597867701

Vents

$39.99

$

In Stock, only 4 left!

0

152

Husqvarna 532439870

SHIELD.BROWNING.PNT.GT.V2

$22.99

$

In Stock, Qty 20+

0

282

Husqvarna 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 15

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

283

Husqvarna 532439861

CONSOLE.DECK.LIFT.R.SDFL.HUSQ
(Superseded to 532413491)

$60.99

$

Usually ships in 3-10 days

0

146

Husqvarna 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

$6.49

$

Usually ships in 3-10 days

0

307

Husqvarna 587494601

SHIELD.UPPER.LT.GT.ISO

$22.99

$

Usually ships in 3-10 days

0

18

Husqvarna 597407102

Grilles

$170.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532436670

BRACKET.PIVOT.HOOD.GT.HUSQ.II

$54.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532415064

CHASS.WLDMNT.TLT.12GA/2PC.20"

$145.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

213

Husqvarna 596030501

SCREW HEXAGON HEAD SCREW 5/16-

$4.99

$

In Stock, Qty 20+

0

285

Husqvarna 532416315

CONSOLE INSERT RH

$28.99

$

In Stock, only 1 left!

0

177

Husqvarna 532195228

BUSHING STEERING

$5.99

$

In Stock, Qty 20+

0

303

Husqvarna 589008102

SHIELD.LWR.LH.LTGT.NON30

$22.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, Qty 7

0

335

Husqvarna 532448204

COVER.LOWER.DASH.RH.BLACK

$37.99

$

In Stock, Qty 16

0

204

Husqvarna 597408001

Vents

$28.99

$

In Stock, only 1 left!

0

125

Husqvarna 581684801

CLIP.FUEL.LINE

$3.99

$

Usually ships in 3-10 days

0

284

Husqvarna 532439823

CONCOLE.CNTRL.PDL.HUSQ.LT.498
(Superseded to 532439150)

$74.99

$

Usually ships in 3-10 days

0

308

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 18

0

375

Husqvarna 586908201

BUMPER CLIP-ON. DASH 1"

$4.99

$

In Stock, Qty 9

0

52

Husqvarna 596040501

Hardware

$3.99

$

In Stock, Qty 20+

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 590748821

DASHBOARD.UPPER.ASM.GT2.498

$51.99

$

Usually ships in 3-10 days

0

68

Husqvarna 596030701

Screws

$3.99

$

In Stock, Qty 12

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532439729

SIDE.TRIM.LH.GT.HUSQ.II.GRAY

$20.99

$

In Stock, Qty 5

0

58

Husqvarna 532412280

DRAWBAR UPPER 2PC SMALL FENDER

$46.99

$

Usually ships in 3-10 days

0

175

Husqvarna 590607702

PLATE.PNT.CROSSMEMBER.HUSQ/PRE

$39.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532413485

PLATE.DECK.LIFT.HUSQ.LT

$13.99

$

In Stock, Qty 6

0

286

Husqvarna 532416317

CONSOLE.INSRT.LH.HUSQ.LT.BLACK

$13.99

$

Usually ships in 3-10 days

0

306

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

195

Husqvarna 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532441177

HOOD.ASM.HUSQVARNA.GT.TEX.ORAN
(Superseded to 587483301)

$113.99

$

Usually ships in 3-10 days

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 3 left!

0

350

Husqvarna 532445143

CLIP.X-MAS.TREE

$4.99

$

In Stock, Qty 20+

0

130

Husqvarna 596321701

Screws

$3.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532439774

AIR.DUCT.GTV.BLACK

$53.99

$

In Stock, Qty 6

0

287

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, Qty 9

0
