TS 142 (960410440-00) - Husqvarna 42" Garden Tractor (2019-09) ENGINE Parts Diagram

42" Garden Tractor

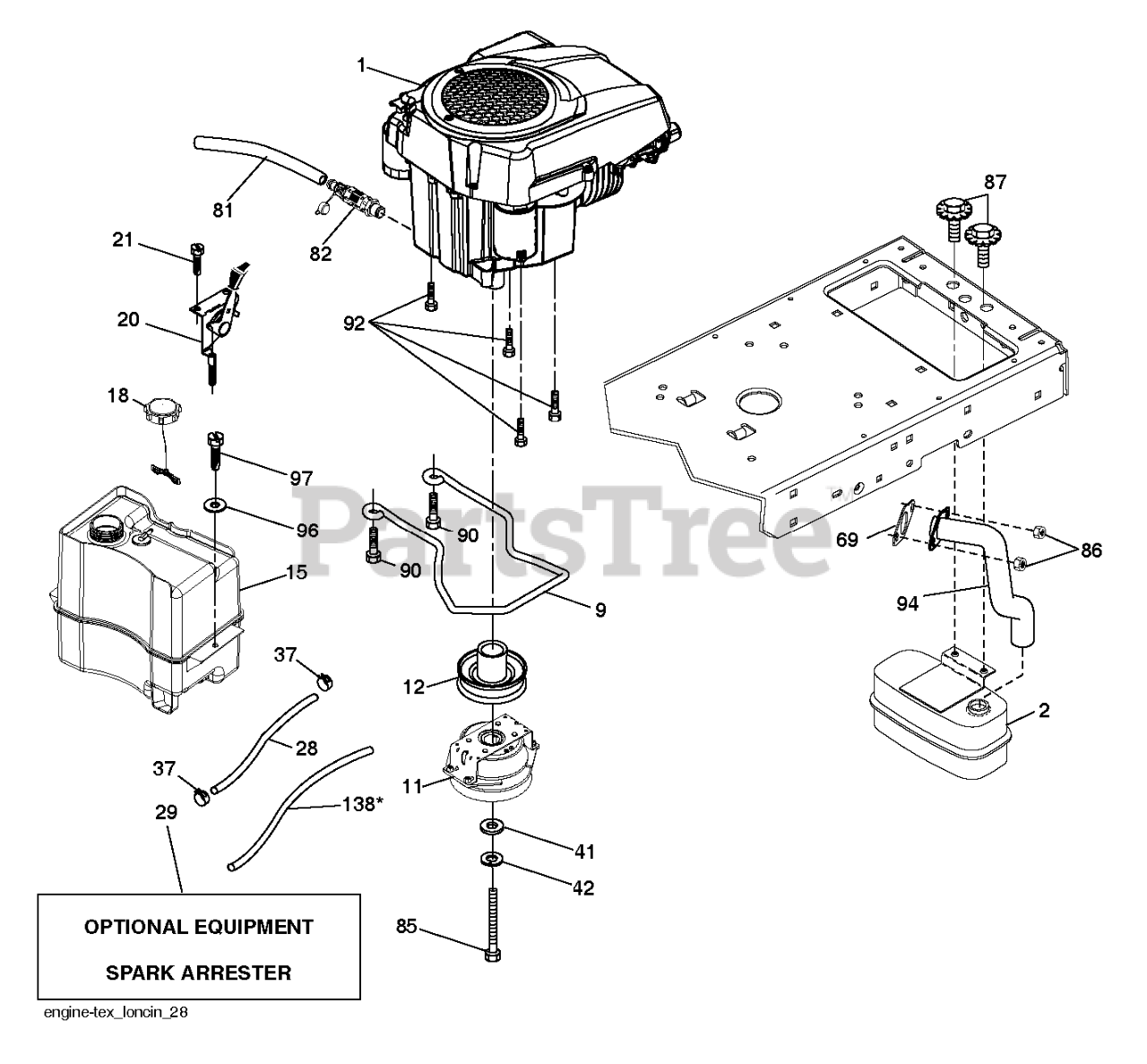

ENGINE Parts Diagram

  • Title

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 3 left!

0

15

Husqvarna 581289901

FUEL.TANK.ASM.NON-EPA

Note: Non-EPA

$87.99

$

In Stock, only 1 left!

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$37.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 5

0

69

Husqvarna 590863601

GASKET GASKET.EXHAUST. LONCIN

$3.99

$

Usually ships in 3-10 days

0

94

Husqvarna 590864801

TUBE TUBE.EXHAUST.LONCIN 608.T

$22.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 6

0

2

Husqvarna 590645301

MUFFLER.ASM.SINGLE
(Superseded to 590645302)

$45.99

$

Usually ships in 3-10 days

0

85

Husqvarna 581332804

CLUTCH BOLT7/16-20X3.5 GR524HR

$7.99

$

In Stock, only 2 left!

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 6

0

15

Husqvarna 597952201

Tanks
(Superseded to 597952202)

Note: EPA

$96.99

$

Usually ships in 3-10 days

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

138*

Husqvarna 587044531

NEEDS DESCRIPTION

Note: Only equipped with unit using EPA TANK

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431

$

$

Not available

96

Husqvarna 596135301

Washers

$3.99

$

In Stock, Qty 6

0

1

Husqvarna 598693901

ENGINES

Note: HUSQVARNA MODEL NO. HS608 (COMPLETE IPL AVAILABLE SEPARATELY)

$1456.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

11

Husqvarna 587241501

CLUTCH.OGURA.4.4PD.GT1.5-EH13V

$278.99

$

In Stock, only 1 left!

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0
