TS 138 M (960410420-00) - Husqvarna 38" Garden Tractor (2018-07) DRIVE Parts Diagram

38" Garden Tractor

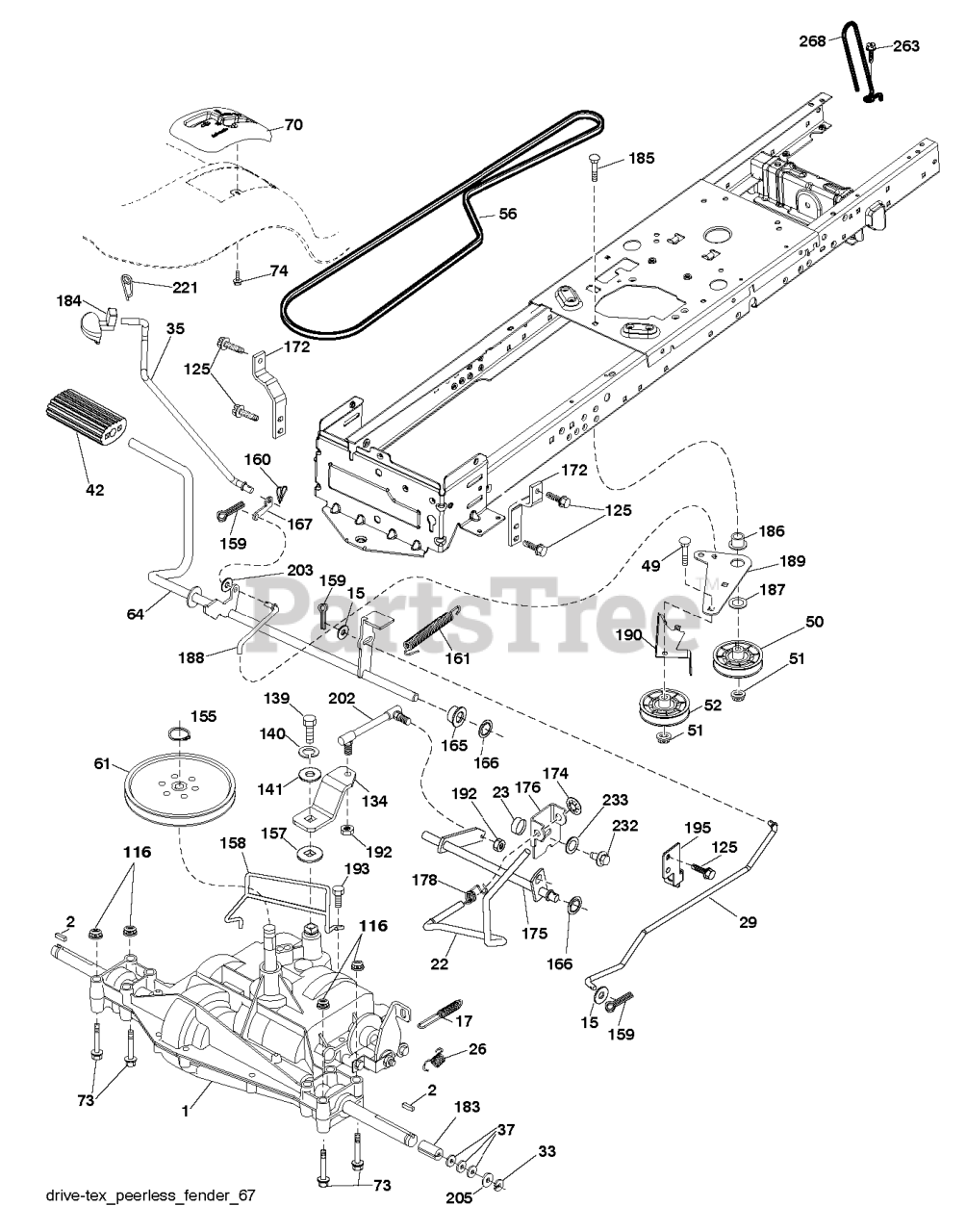

DRIVE Parts Diagram

  • Title

$4.99

$

In Stock, Qty 10

0

203

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

$3.99

$

In Stock, Qty 11

0

64

Husqvarna 532196200

SHAFT.ASM.PEDAL.BRAKE.

$56.99

$

Usually ships in 3-10 days

0

172

Husqvarna 532197657

STRAP.TRQ.LH.GEAR.DRIV

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532197455

SPRING.BRAKE.RTN.GR.DR

$4.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

160

Husqvarna 596029401

GSPW Retainers

$4.99

$

In Stock, only 1 left!

0

116

$3.99

$

In Stock, only 2 left!

0

176

Husqvarna 532196214

ARM.CLEVIS.ROD.SHIFT

$7.99

$

Usually ships in 3-10 days

0

268

$2.49

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532123666

PULLEY TRANS

$45.99

$

In Stock, only 1 left!

0

141

$3.99

$

In Stock, only 2 left!

0

158

$10.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532196374

CONSOLE ASM.STL.6SP.ROS.TEX.GR

$

$

Not available

188

Husqvarna 582217001

LINK.CLUTCH.GROUND DRIVE.LONG
(Superseded to 532194323)

$5.99

$

In Stock, Qty 10

0

$4.99

$

In Stock, only 1 left!

0

$3.99

$

In Stock, only 2 left!

0

$9.49

$

Usually ships in 3-10 days

0

157

Husqvarna 532105701

WASH-SHFT PLT LT

$6.49

$

Usually ships in 3-10 days

0

187

$5.99

$

In Stock, Qty 12

0

$3.99

$

In Stock, only 3 left!

0

$14.99

$

Usually ships in 3-10 days

0

1

000000000

Note: Transaxle, Peerless 206-565 (532197941)

$

$

Not available

192

Husqvarna 532150360

NUT LOCK CENTER 1/4 -28 FNTHD

$

$

Not available

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

42

Husqvarna 532008883

PEDAL COVER
(Superseded to 510089501)

$6.49

$

In Stock, Qty 14

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

193

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

178

Husqvarna 532197456

SPRING.SHIFT.GT2006

$6.49

$

Usually ships in 3-10 days

0

174

Husqvarna 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

$2.49

$

In Stock, only 1 left!

0

175

Husqvarna 532197858

SHAFT ASM SHIFT

$39.99

$

Usually ships in 3-10 days

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$10.99

$

Usually ships in 3-10 days

0

205

$4.99

$

In Stock, Qty 20+

0

233

$3.99

$

Usually ships in 3-10 days

0

33

$4.99

$

Usually ships in 3-10 days

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

195

Husqvarna 532197332

BRKT.ROD.BRAKE.PEERLES

$5.99

$

Usually ships in 3-10 days

0

186

Husqvarna 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

$3.99

$

In Stock, only 1 left!

0

183

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

17

Husqvarna 532197297

SPRING.BRAKE.PEERLESS.TEX

$9.49

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 3 left!

0

165

Husqvarna 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.99

$

Usually ships in 3-10 days

0

263

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

56

Husqvarna 532194346

V-BELT.TRACTOR.DRIVE.P

$43.99

$

In Stock, only 3 left!

0

155

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 7

0

$7.99

$

Usually ships in 3-10 days

0

134

$7.99

$

Usually ships in 3-10 days

0

184

Husqvarna 532411484

HANDLE.PARKNG BRK.PRED.LT.428

$66.99

$

Usually ships in 3-10 days

0

161

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

140

Husqvarna 596029801

WASHER SPRING LOCK WASHER WITH

$3.99

$

In Stock, only 2 left!

0

22

Husqvarna 532197660

ROD.SHIFT.FENDER.TLT.2006

$182.99

$

Usually ships in 3-10 days

0

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 2 left!

0
