TS 138 L - Husqvarna 38" Garden Tractor (Original) MOWER DECK / CUTTING DECK Parts Diagram

38" Garden Tractor

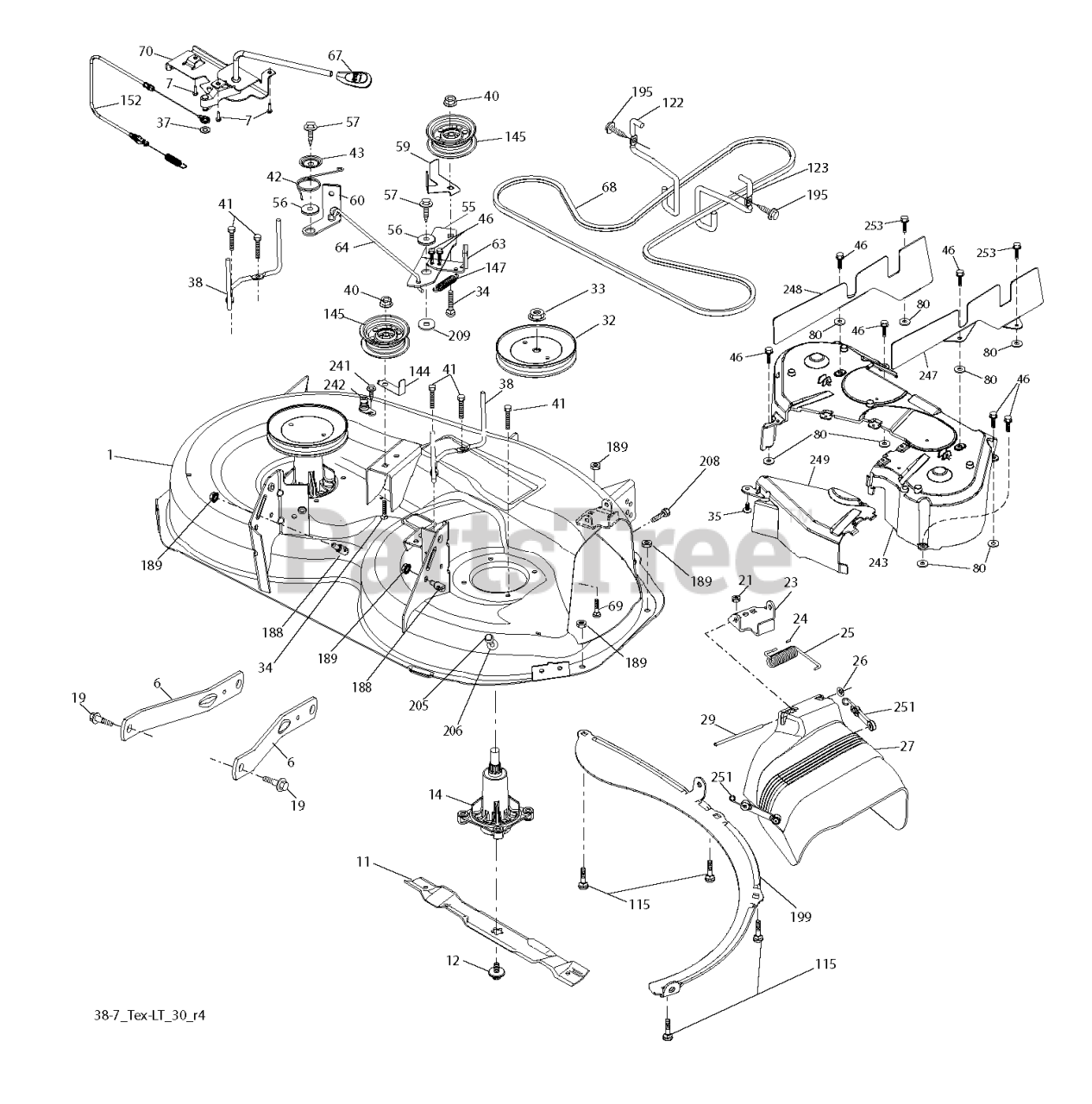

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

247

Husqvarna 589009402

GUARD DECK.38IN.RH.ISO X431 BL

Note: For 96041043100

$13.99

$

Usually ships in 3-10 days

0

205

Husqvarna 817490416

SCREW
(Superseded to 817640416)

Note: For 96041043100

$

$

Not available

67

Husqvarna 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

243

Husqvarna 583298801

COVER.DECK.38"FRENCH.TEX

Note: For 96041043100

$51.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532192572

SHIELD.DEFLECTOR.MOWER.38"

Note: For 96041043900

$80.99

$

In Stock, only 1 left!

0

21

Husqvarna 596040501

Hardware

$3.99

$

In Stock, Qty 20+

0

68

Husqvarna 532408381

V-BELT

$60.99

$

In Stock, only 1 left!

0

209

Husqvarna 596135501

Washers

$5.99

$

In Stock, Qty 12

0

35

Husqvarna 532133835

FASTENER.XMAS.TREE

Note: For 96041043100

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532434463

Weldments

$

$

Not available

14

Husqvarna 587819701

KIT.MANDREL.NONGREASE.TALL

$56.99

$

In Stock, Qty 17

0

189

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, only 2 left!

0

199

Husqvarna 531170401

SERVICE KIT BAFFLE BAFFLE.VORT

$17.99

$

Usually ships in 3-10 days

0

188

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 6

0

59

Husqvarna 531165901

SERVICE KIT GUARD

$5.99

$

In Stock, only 2 left!

0

253

Husqvarna 583441001

TULFLOK.RIVET

Note: For 96041043100

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

69

Husqvarna 596136401

Bolts

$3.99

$

In Stock, Qty 20+

0

56

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 16

0

208

Husqvarna 817670608

SCREW 3/8-16X1/2

Note: For 96041043100

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 8

0

43

Husqvarna 532197256

SRPING.TORSION.RETAINE

$6.49

$

In Stock, Qty 7

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 529846401

SERVICE.KIT ARM.SUSPENSION.MOW

$17.99

$

In Stock, Qty 10

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 17

0

147

Husqvarna 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 7

0

122

Husqvarna 531169501

SERVICE KIT BELT KEEPER

$7.49

$

In Stock, only 4 left!

0

38

Husqvarna 532400140

BELT KEEPER.MANDREL.38"COATED

$53.99

$

In Stock, only 1 left!

0

145

Husqvarna 532177968

PULLEY.IDLER.FLAT

$31.99

$

In Stock, Qty 9

0

12

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532400130

BRAKE.ARM.LH.38"TEX.COATED

$18.99

$

In Stock, only 2 left!

0

- -

Husqvarna 583498101

DECK.SVCX 38-8"HP.CC.NGW.WP498

Note: For 96041043900

$848.99

$

Usually ships in 3-10 days

0

115

Husqvarna 596039401

BOLT ROUND HEAD SQUARE NECK BO

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 20+

0

152

Husqvarna 532435111

CABLE.CLUTCH.MANUAL.

$34.99

$

In Stock, only 2 left!

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

144

Husqvarna 531148901

SERVICE.KIT KEEPER BELT KEEPER

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 581116302

BLADE.2 IN 1.38"DECK.BLACK

$17.99

$

Usually ships in 3-10 days

0

29

Husqvarna 595297001

Rods

$5.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532423062

PALNUT 1/4

Note: For 96041043100

$4.99

$

In Stock, only 2 left!

0

249

Husqvarna 583298901

COVER.CABLE.CLUTCH.38/42"TEX

Note: For 96041043100

$20.99

$

Usually ships in 3-10 days

0

7

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

27

Husqvarna 597316601

Shields

Note: For 96041043100

$51.99

$

Usually ships in 3-10 days

0

37

Husqvarna 596565301

WASHER PLAIN WASHER 3/8 X 0.08

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 531170001

SERVICE KIT PULLEY PULLEY.MAND
(Superseded to 532199789)

$20.99

$

Usually ships in 3-10 days

0

248

Husqvarna 589009502

GUARD.DECK.38IN.LH.X431

Note: For 96041043100

$13.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 596136101

GSPW Bolts

$3.99

$

In Stock, Qty 5

0

- -

Husqvarna 583569601

DECK.ASM..SVCX.38.CC.NGW.WP.FR

Note: For 96041043100

$970.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

123

Husqvarna 531169701

SERVICE KIT KEEPER BELT KEEPER

$7.99

$

In Stock, only 1 left!

0

251

Husqvarna 583508201

KIT.STRAP.BUNGEE.DEFLECTOR.SVC

Note: For 96041043100

$14.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532401246

CLUTCH.ASM.MANUAL.LT.PRED

$80.99

$

In Stock, only 1 left!

0

33

Husqvarna 596134801

Nuts

$4.99

$

In Stock, Qty 12

0

64

Husqvarna 532199918

LINKAGE.BRAKE.ASM.ZINC

$24.99

$

Usually ships in 3-10 days

0

55

Husqvarna 531169401

SERVICE KIT IDLER.ARM

$6.99

$

In Stock, Qty 6

0

195

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

60

Husqvarna 532199471

ARM BRAKE MOWER RH 38"
(Superseded to 532400132)

$17.99

$

In Stock, only 3 left!

0

206

Husqvarna 596135301

Washers

Note: For 96041043100

$3.99

$

In Stock, Qty 6

0
