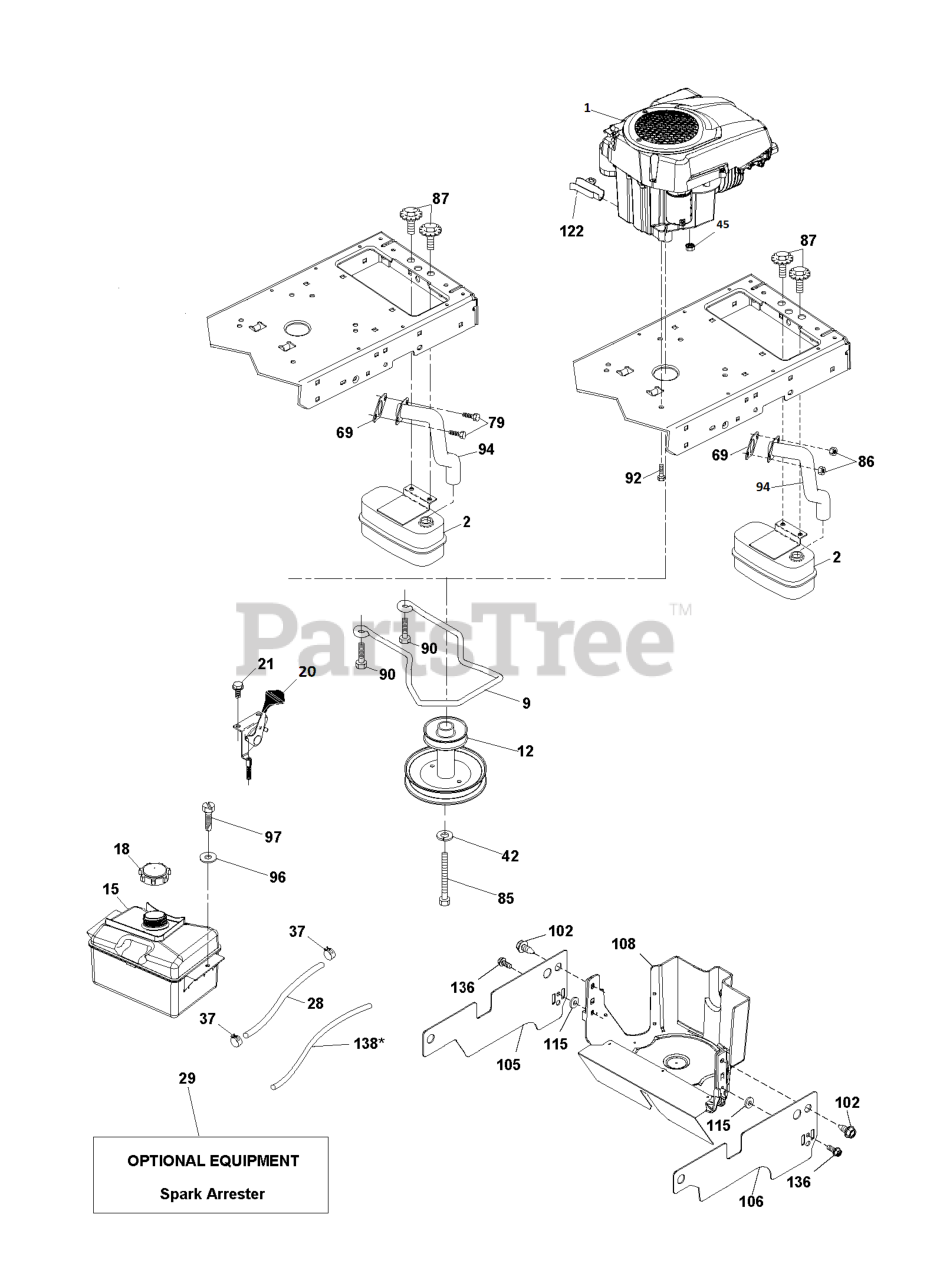

TS 138 L - Husqvarna 38" Garden Tractor (Original) ENGINE Parts Diagram

38" Garden Tractor

ENGINE Parts Diagram

  • Title

15

Husqvarna 597952203

FUEL TANK

Note: EPA

$96.99

$

Usually ships in 3-10 days

0

138*

Husqvarna 587044531

NEEDS DESCRIPTION

Note: only quipped with unit using EPA TANK

$3.99

$

Usually ships in 3-10 days

0

136

Husqvarna 596434001

Screws

Note: For 96041043100

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 590645301

MUFFLER.ASM.SINGLE
(Superseded to 590645302)

$45.99

$

Usually ships in 3-10 days

0

18

Husqvarna 581075501

CAP.2.25'.VENTED.RATCHET.EPA

$26.99

$

Usually ships in 3-10 days

0

94

Husqvarna 590864701

TUBE TUBE.EXHAUST.LONCIN 452.T

$28.99

$

Usually ships in 3-10 days

0

1

Husqvarna 598694001

NEEDS DESCRIPTION

Note: 96041043100. ENGINE HUSQVARNA MODEL NO. HS452 (COMPLETE IPL AVAILABLE SEPARATELY)

$

$

Currently unavailable

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$4.99

$

In Stock, only 1 left!

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0

108

Husqvarna 587179509

COVER ENGINE PULLEY COVER WITH

Note: For 96041043100

$79.99

$

Usually ships in 3-10 days

0

79

Husqvarna 596134202

Screws

Note: For 96041043900

$3.99

$

In Stock, only 2 left!

0

106

Husqvarna 501268202

SHIELD.SIDE.LH.3842"TEX FRN.BK

Note: For 96041043100

$13.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

96

Husqvarna 596135301

Washers

$3.99

$

In Stock, Qty 6

0

20

Husqvarna 532176636

CONTROL.TH/CK.C.BLACK

$37.99

$

Usually ships in 3-10 days

0

115

Husqvarna 532431761

RETAINER

Note: For 96041043100

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 586478501

ENGINE.PULLEY

$40.99

$

In Stock, only 2 left!

0

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 8

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

1

Husqvarna 593230401

ENGINE.LONCIN.SPARE/452

Note: 96041043900. ENGINE HUSQVARNA MODEL NO. HS452 (COMPLETE IPL AVAILABLE SEPARATELY)

$

$

Not available

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

Note: For 96041043100

$6.49

$

In Stock, only 1 left!

0

45

Husqvarna 593356401

NUT HEXAGON WITH FLANGE, SERRA

$2.49

$

Usually ships in 3-10 days

0

28

Husqvarna 587044820

HOSE 1/4" LOW PERMEATION FUEL

$11.99

$

In Stock, Qty 11

0

69

Husqvarna 590863501

GASKET GASKET.EXHAUST.LONCIN 3

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 581289901

FUEL.TANK.ASM.NON-EPA

Note: Non-EPA

$87.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

102

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

Note: For 96041043100

$6.49

$

In Stock, Qty 11

0

105

Husqvarna 501267202

SHIELD.SIDE.LH.3842"TEX FRN.BK

Note: For 96041043100

$14.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

9

Husqvarna 596501502

Keepers

$11.99

$

In Stock, Qty 5

0
