TS 138 - Husqvarna 38" Garden Tractor (Original) SEAT Parts Diagram

38" Garden Tractor

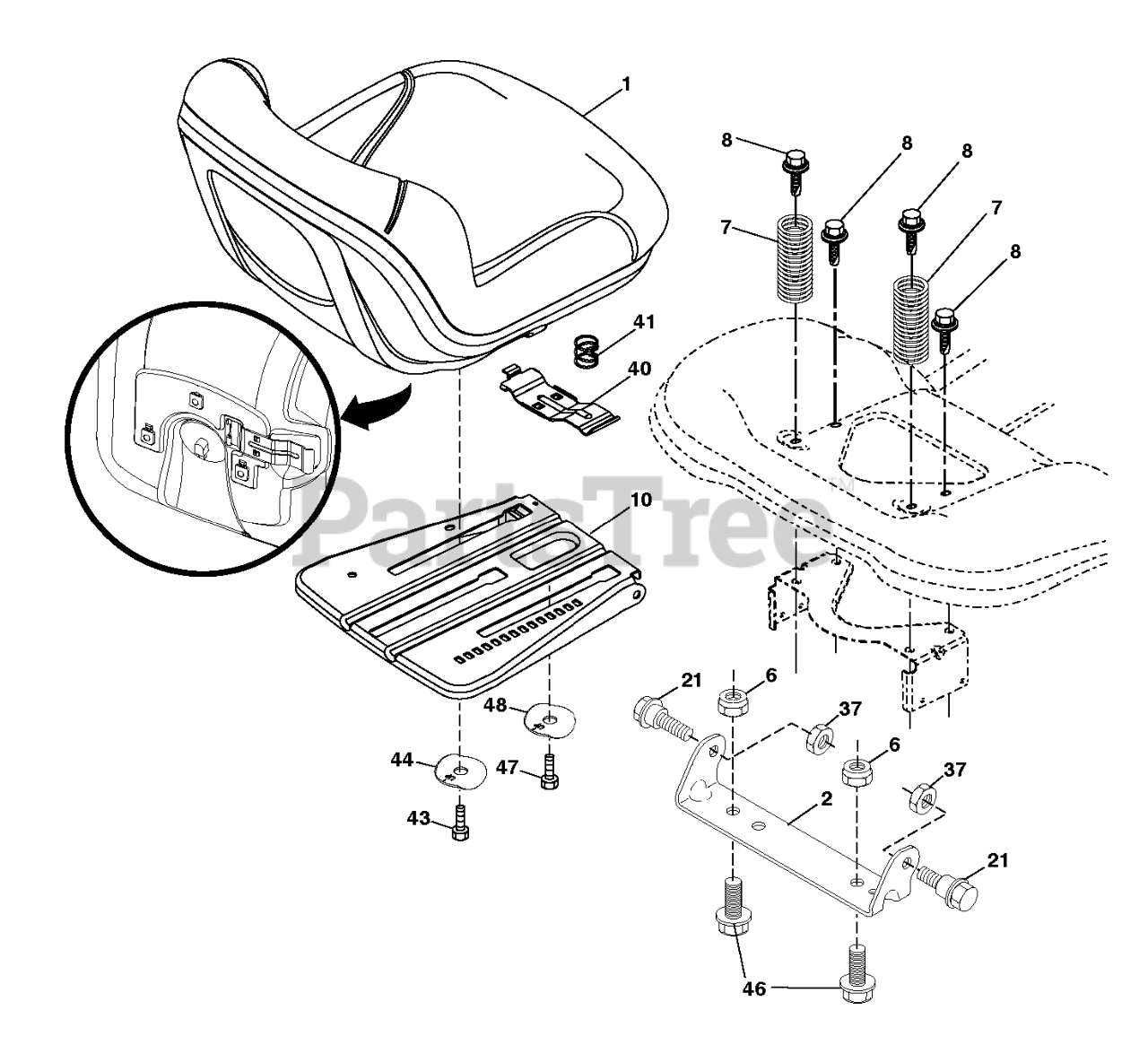

SEAT Parts Diagram

  • Title

7

Husqvarna 589483501

SPRING.COMPRESS.SEAT.TAPERED

$9.49

$

In Stock, only 2 left!

0

40

Husqvarna 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$

$

Not available

41

Husqvarna 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 874760612

BOLT

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 587907801

BOLT.5/16-18X5/8.SHOULDER

$4.99

$

In Stock, Qty 8

0

40

Husqvarna 595088102

Handles

$5.99

$

In Stock, Qty 7

0

44

Husqvarna 819133812

WASHER 13/32 X 2-3/8 X 12GA
(Superseded to 583789501)

Note: For 96041036700, 96041038300, 96041036701

$

$

Not available

48

Husqvarna 501051801

WASHER.WINGED.3/8ID.1.5OD

$4.99

$

In Stock, only 1 left!

0

44

Husqvarna 501051801

WASHER.WINGED.3/8ID.1.5OD

Note: For 96041036702, 96041038301, 96041041700, 96041042100, 96041042900, 96041045400

$4.99

$

In Stock, only 1 left!

0

1

Husqvarna 532439819

SEAT.TH130.GREY.HUSQ.TEX

Note: For 96041038300, 96041038301, 96041041700, 96041042100, 96041042900, 96041045400

$239.99

$

Usually ships in 3-10 days

0

10

Husqvarna 596768801

KIT.PLATE.SEAT

$56.99

$

Usually ships in 3-10 days

0

1

Husqvarna 583544801

SEAT.TH110.HUSQ.TEX.GREY

Note: For 96041036700, 96041036701, 96041036702

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532180166

BRKT.PIVOT.FENDER

$13.99

$

In Stock, only 1 left!

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, only 2 left!

0

7

Husqvarna 587613301

SPRING.COMPRESSION.SEAT.BLACK

Note: For 96041036700, 96041038300, 96041036701

$6.99

$

In Stock, only 4 left!

0

43

Husqvarna 874760612

BOLT

$4.99

$

In Stock, only 2 left!

0

46

Husqvarna 588090401

BOLT.3/8-16X1;1.25OD.WSHR.SEMS

$6.99

$

Usually ships in 3-10 days

0

37

Husqvarna 596040501

Hardware

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 596583702

Nuts

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 532439709

SEAT.TH110.HUSQ.TEX.GREY
(Superseded to 583544801)

Note: For 96041036700, 96041036701, 96041036702,

$194.99

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0
