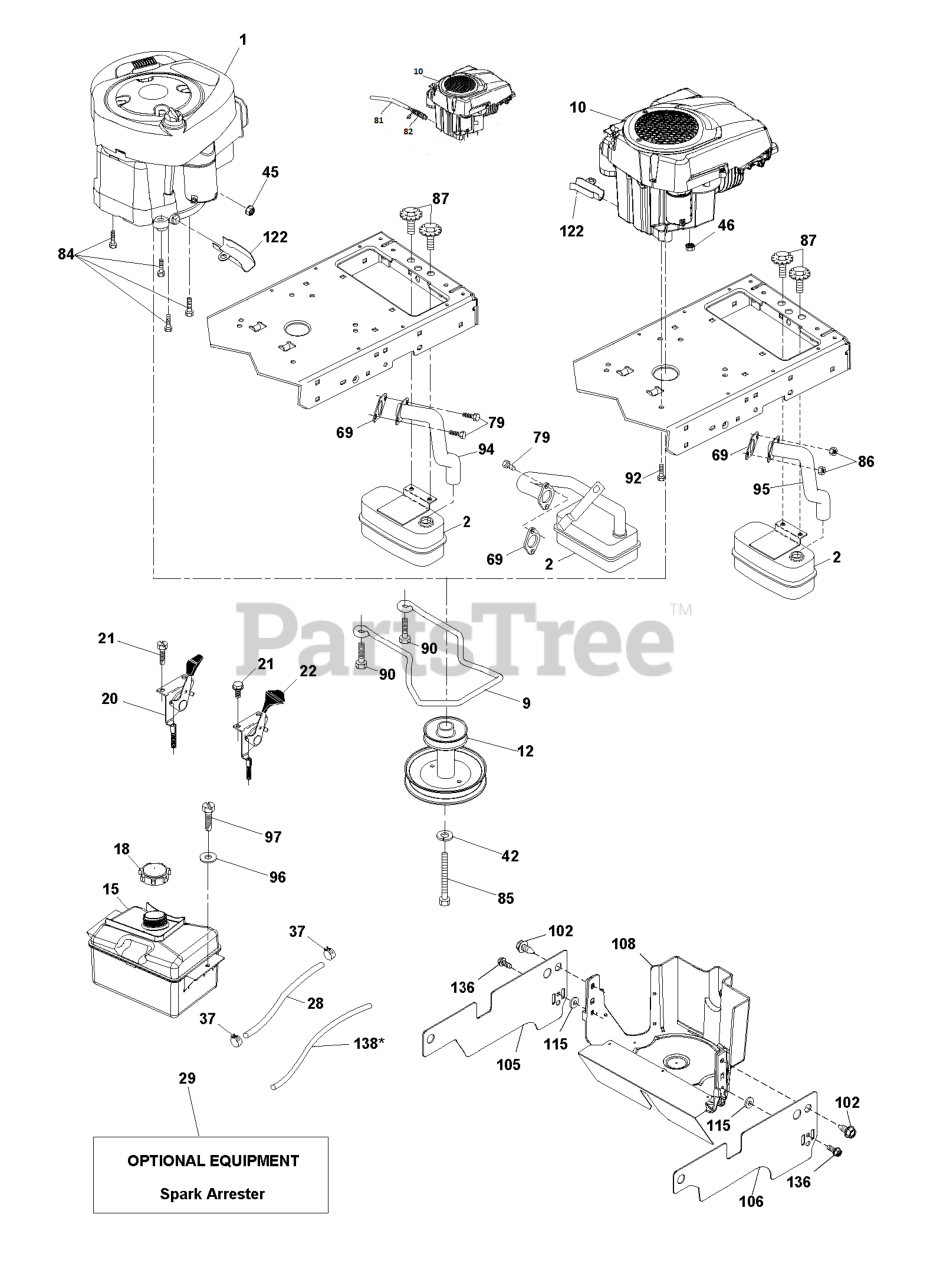

TS 138 - Husqvarna 38" Garden Tractor (Original) ENGINE 2 Parts Diagram

Husqvarna 593230401

Note: For 96041042900. HUSQVARNA MODEL NO. HS452 (COMPLETE IPL AVAILABLE SEPARATELY).

Husqvarna 596238901

Husqvarna 586478501

Note: For all except 96041038300, 96041038301

Husqvarna 817670412

Husqvarna 590863501

Note: For 96041042900, 96041045400, 96041045600

Husqvarna 532137180

Husqvarna 596133601

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

Husqvarna 587044531

Note: Only equipped with the unit using EPA tank

Husqvarna 817060620

Note: For all EXCEPT 96041042900, 96041045600

Husqvarna 582540302

Note: For 96041038300, 96041038301

000000000

Note: For 96041042100. Engine B&S Model No. 31R577-0027-B5 (597359601).

000000000

Note: For 96041036700, 96041036701, 96041036702. ENGINE B&S MODEL 31R577-0027-B1 (587333501).

Husqvarna 532428867

Note: For 96041036700, 96041036701, 96041036702, 96041042100, 96041045400

Husqvarna 532176636

Note: For 96041042900, 96041045400, 96041045600

Husqvarna 586729001

Note: For 96041038300, 96041038301

Husqvarna 532188655

Note: For 96041036701, 96041036702, 96041042100

Husqvarna 501268202

Note: For 96041036700, 96041036701, 96041036702, 96041042100, 96041045400

Husqvarna 590645301

Note: For 96041042900, 96041045400, 96041045600

Husqvarna 532184362

Note: For 96041045400, 96041045600

Husqvarna 587044822

Note: For 96041042900, 96041045600

Husqvarna 590864701

Note: For 96041042900, 96041045400

Husqvarna 596134202

Note: For 96041042900

Husqvarna 581880901

Note: For 96041036701, 96041036702, 96041042100

Husqvarna 532431761

Note: For 96041036700, 96041036701, 96041036702, 96041042100, 96041045400

Husqvarna 501606501

Husqvarna 596321701

Husqvarna 532123487

Husqvarna 532137352

Note: For 96041041700, 96041036700, 96041038300, 96041038301

Husqvarna 532272293

Note: For all EXCEPT 96041042900, 96041045400, 96041045600

Husqvarna 593356401

Note: For 96041042900, 96041045400, 96041045600

Husqvarna 597952203

Note: For 96041042900 EPA TANK

Husqvarna 581289901

Note: NON-EPA TANK

Husqvarna 532171877

Note: For 96041036701, 96041036702, 96041042100, 96041042900, 96041045400, 96041045600

Husqvarna 598694001

Note: For 96041045400. Europe Only. Engine Husqvarna Model HV 452CC. Engine IPL available separately

Husqvarna 596134201

Note: For all EXCEPT 96041042900, 96041045600

Husqvarna 598693901

Note: For 96041045600. Engine Husqvarna 608CC (598693901)

Husqvarna 817120616

Note: For 96041042900, 96041045400, 96041045600

Husqvarna 587044820

Note: For all EXCEPT 96041042900, 96041045600

Husqvarna 532148456

Note: For 96041045600

Husqvarna 581075501

Husqvarna 817000616

Husqvarna 532421922

Husqvarna 596501502

Note: For all except 96041038300, 96041038301

Husqvarna 596135301

Husqvarna 587242604

Husqvarna 501267202

Note: For 96041036700, 96041036701, 96041036702, 96041042100, 96041045400

Husqvarna 596434001

Husqvarna 532428287

Note: For 96041045600

Husqvarna 590864801

Note: For 96041045600

Husqvarna 587179509

Note: For 96041036700, 96041036701, 96041036702, 96041042100, 96041045400

000000000

Note: For 96041038300, 96041038301, 96041041700. ENGINE B&S MODEL 31R977-0046-G1 (588640801).
