TS 138 - Husqvarna 38" Garden Tractor (Original) CHASSIS & ENCLOSURES Parts Diagram

38" Garden Tractor

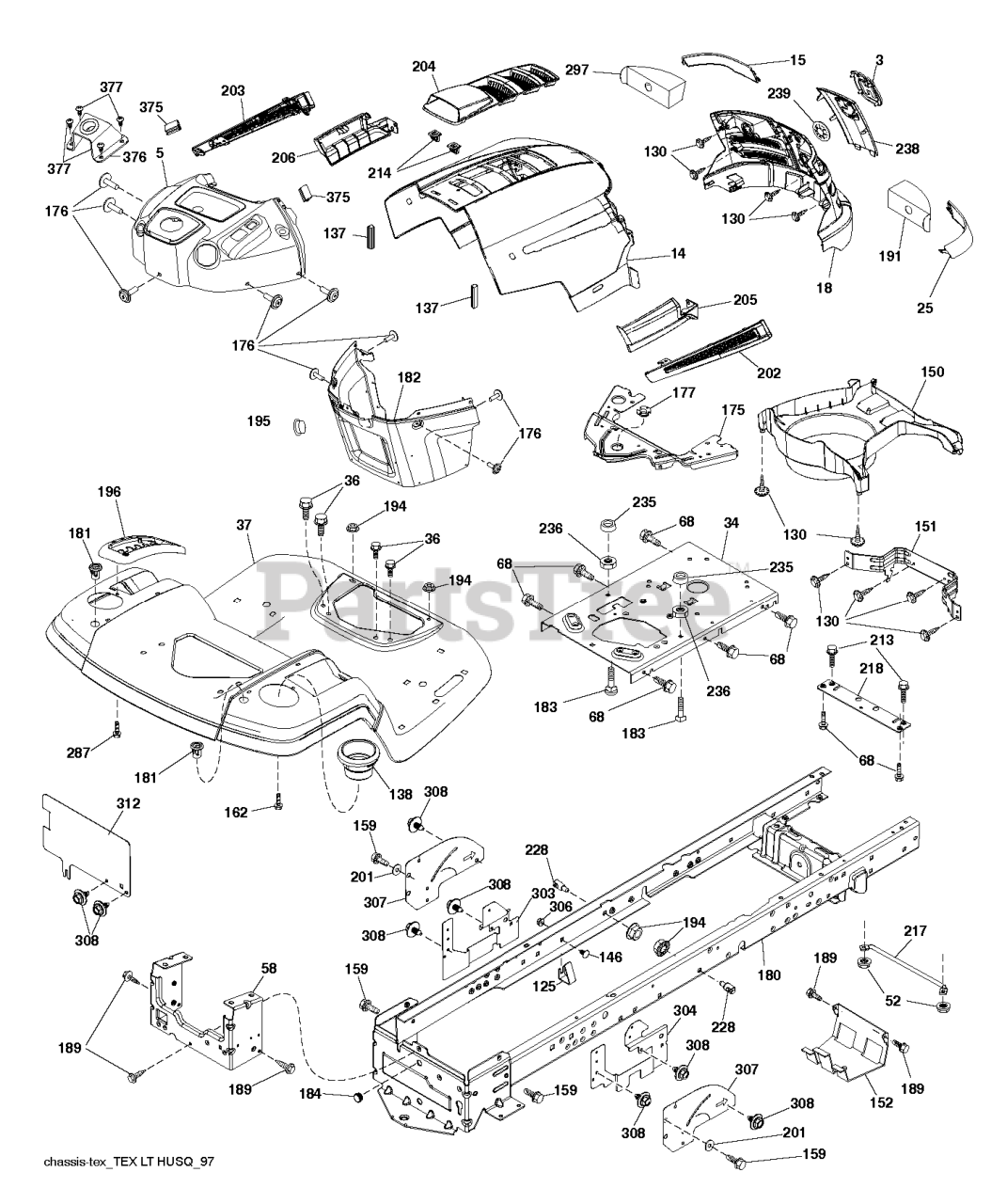

CHASSIS & ENCLOSURES Parts Diagram

  • Title

213

Husqvarna 596030501

SCREW HEXAGON HEAD SCREW 5/16-

$4.99

$

In Stock, Qty 20+

0

184

Husqvarna 587554101

PLUG.DEMO.625

Note: For 96041045400, 96041036700, 96041036701, 96041036702, 96041042100

$6.99

$

Usually ships in 3-10 days

0

183

Husqvarna 874520520

BOLT.5/16-18X1-1/4 FULL THD

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$4.99

$

Usually ships in 3-10 days

0

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 6

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

376

Husqvarna 589458701

MOUNT.ASM.HUSLT.UPPER.STRNG
(Superseded to 589458401)

Note: For 96041045400, 96041036702, 96041038301, 96041041700, 96041042100, 96041042900

$31.99

$

Usually ships in 3-10 days

0

68

Husqvarna 596030701

Screws

$3.99

$

In Stock, only 2 left!

0

235

Husqvarna 596564201

Spacers

Note: For 96041045400, 96041041700, 96041042100, 96041042900

$5.99

$

Usually ships in 3-10 days

0

308

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

Note: For 96041045400, 96041036700, 96041036701, 96041036702, 96041042100

$7.49

$

In Stock, Qty 5

0

239

Husqvarna 532404883

IS ITO

$15.99

$

Usually ships in 3-10 days

0

307

Husqvarna 587494601

SHIELD.UPPER.LT.GT.ISO

Note: For 96041045400, 96041036700, 96041036701, 96041036702, 96041042100

$20.99

$

Usually ships in 3-10 days

0

183

Husqvarna 595305701

Screws

$4.99

$

In Stock, only 2 left!

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

52

Husqvarna 596040501

Hardware

$3.99

$

In Stock, Qty 20+

0

297

Husqvarna 532406665

INSERT REFLECTIVE

$9.99

$

Usually ships in 3-10 days

0

195

Husqvarna 532439976

PLUG.TEX.DASH.SVC.MINDER.GREY

Note: For 96041036700, 96041036701, 96041036702

$6.49

$

Usually ships in 3-10 days

0

180

Husqvarna 532415063

CHASS.WLDMNT.TL.12GA/2P.48/54

$193.99

$

Usually ships in 3-10 days

0

204

Husqvarna 532441375

SUBASM.TOP.VENT.HUSQ.LT

$30.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532439421

ASM.GRILLE HUSQVARNA.LT.498

$157.99

$

Usually ships in 3-10 days

0

375

Husqvarna 586908201

BUMPER CLIP-ON. DASH 1"

Note: For all EXCEPT 96041042900

$4.99

$

In Stock, only 2 left!

0

151

Husqvarna 532407807

BRACKET PIVOT

$31.99

$

Usually ships in 3-10 days

0

228

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 581056301

LOGO.HUSQ.GT.LT.CROWN.H
(Superseded to 532430771)

$8.99

$

In Stock, only 1 left!

0

202

Husqvarna 532441342

VENT.SIDE.HUSQVARNA.LT.RT

$13.99

$

Usually ships in 3-10 days

0

304

Husqvarna 589009002

SHIELD.LWR.RH.LTGT.NON30.NOTCH

Note: For 96041042100, 96041045400, 96041036700, 96041036701, 960410367002

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532438964

SUBASM.DASH.UPPER.W/BUMPER

Note: For 96041042900, 96041045400

$78.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532441428

LENS.HUSQVARNA LT.RH
(Superseded to 532406664)

$24.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532441345

SKIRT.SIDE.HUSQVARNA.LT.LEFT

$13.99

$

Usually ships in 3-10 days

0

203

Husqvarna 532441343

VENT.SIDE.HUSQVARNA.LT.LFT
(Superseded to 532406671)

$10.99

$

Usually ships in 3-10 days

0

191

Husqvarna 532416501

INSERT.REFLECTIVE.RH.
(Superseded to 583358401)

$15.99

$

Usually ships in 3-10 days

0

146

Husqvarna 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

Note: For 96041041700, 96041042100, 96041042900, 96041045400

$6.49

$

Usually ships in 3-10 days

0

201

Husqvarna 819132016

WASHER
(Superseded to 819132012)

Note: For , 96041045400, 96041036700, 96041036701, 96041036702, 96041042100

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532441206

FENDER.TLT.PDL.CNTRL.W/CPH.ORG

$194.99

$

Usually ships in 3-10 days

0

238

Husqvarna 532441374

TRIM.HUSQ LT.668
(Superseded to 532407881)

$22.99

$

Usually ships in 3-10 days

0

213

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 585529806

DASH.UP.HU.LT.CBL.CLTCH.CHG.PT

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$74.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532199472

CROSSMEMBER

$28.99

$

Usually ships in 3-10 days

0

125

Husqvarna 581684801

CLIP.FUEL.LINE

Note: For 96041045400, 96041041700, 96041042100, 96041042900

$3.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532406662

AIR DUCT

$30.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532441427

LENS.HUSQVARNA LT.RH
(Superseded to 532406663)

$24.99

$

Usually ships in 3-10 days

0

138

Husqvarna 532439747

HOLDER.CUP.LT.GREY

$8.99

$

In Stock, only 1 left!

0

34

Husqvarna 580910801

PLATE.ENGINE.WELDED.CHASSIS

$68.99

$

In Stock, only 1 left!

0

181

Husqvarna 532439746

BUSHING.MNT.FEND.CRGO.TEX.49
(Superseded to 532403025)

$

$

Not available

228

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301, 96041041700

$

$

Not available

5

Husqvarna 585529811

NEEDS DESCRIPTION

Note: For 96041041700, 96041042100

$43.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$

$

Not available

205

Husqvarna 532441344

SKIRT.SIDE.HUSQVARNA.LT.RT

$13.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532407176

DASH.LOWER.PREDATOR LT

$79.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

194

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, only 2 left!

0

5

Husqvarna 585529805

DASH.UPPER.HUS.LT.CABLE.CLUTCH

Note: For 96041041700, 96041042100

$43.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

18

Husqvarna 584382301

GRILLE.SVC.HUSQVARNA.L

Note: For all EXCEPT 96041042900, 96041045400

$72.99

$

Usually ships in 3-10 days

0

130

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

194

Husqvarna 583612701

NUT HEX,LOCK,FLAN

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$

$

Not available

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 4 left!

0

287

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

303

Husqvarna 587493402

SHIELD.LOWER.LH/LT/GT/BLK.EDIP

Note: For 96041036700, 96041036701, 96041036702

$26.99

$

Usually ships in 3-10 days

0

303

Husqvarna 589008102

SHIELD.LWR.LH.LTGT.NON30

Note: For 96041042100, 96041045400, 96041036700, 96041036701, 96041036702

$20.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$6.49

$

Usually ships in 3-10 days

0

306

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

Note: For 96041045400, 96041041700, 96041042100, 96041042900

$4.99

$

In Stock, Qty 20+

0

312

Husqvarna 589006702

COVER DRBAR.LT.FRTTANK.ISO X43

Note: For 96041045400, 96041036700, 96041036701, 96041036702, 96041042100

$11.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532441267

HOOD.HUSQVARNA.LT.ORANGE

$91.99

$

Usually ships in 3-10 days

0

235

Husqvarna 532406129

SPACER FENDER

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$4.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532199535

SHIELD.BROWNING.W/TEX

$

$

Not available

196

Husqvarna 532439647

DECKLFT.CONSOL FULL ASSM GREY

$53.99

$

In Stock, only 1 left!

0

304

Husqvarna 587865102

SHIELD.RH.LOW.LT/GT.NON-30.PNT

Note: For 96041036700, 96041036701, 96041036702

$43.99

$

Usually ships in 3-10 days

0

377

Husqvarna 589455301

SCREW 10 X 1/2 ZN PL PHIL PAN

Note: For 96041045400, 96041036702, 96041038301, 96041041700, 96041042100, 96041042900

$3.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532412280

DRAWBAR UPPER 2PC SMALL FENDER

$46.99

$

Usually ships in 3-10 days

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

Husqvarna 597334801

Bumpers

Note: For 96041041700, 96041038300, 96041038301

$84.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

162

Husqvarna 596134101

Screws

$3.99

$

In Stock, only 3 left!

0
