TS 138 (960410429-00) - Husqvarna 38" Garden Tractor (2019-04) ENGINE Parts Diagram

38" Garden Tractor

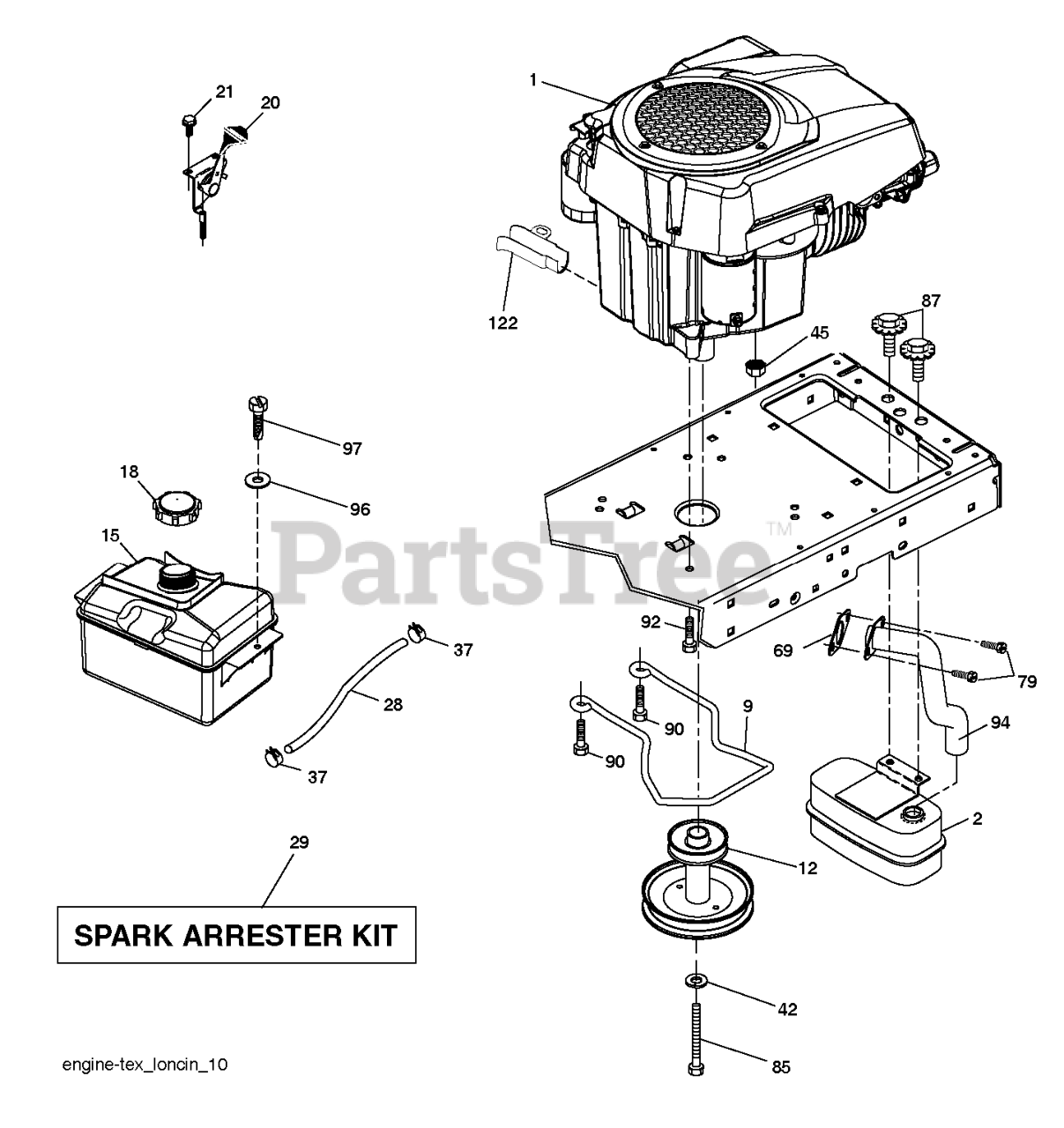

ENGINE Parts Diagram

  • Title
87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

94

Husqvarna 590864701

TUBE TUBE.EXHAUST.LONCIN 452.T

$28.99

$

Usually ships in 3-10 days

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

$3.99

$

In Stock, Qty 15

0

1

Husqvarna 593230401

ENGINE.LONCIN.SPARE/452

Note: HUSQVARNA MODEL NO. HS452 (COMPLETE IPL AVAILABLE SEPARATELY)

$

$

Not available

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$4.99

$

In Stock, only 1 left!

0

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 8

0

45

Husqvarna 593356401

NUT HEXAGON WITH FLANGE, SERRA

$2.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$11.99

$

In Stock, Qty 8

0

15

Husqvarna 581289901

FUEL.TANK.ASM.NON-EPA

$87.99

$

In Stock, only 1 left!

0

12

Husqvarna 586478501

ENGINE.PULLEY

$40.99

$

In Stock, only 2 left!

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431

$

$

Not available

42

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 590645301

MUFFLER.ASM.SINGLE
(Superseded to 590645302)

$45.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

96

$3.99

$

In Stock, Qty 6

0

1

Husqvarna 598694001

NEEDS DESCRIPTION

Note: Europe Only

$

$

Currently unavailable

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$37.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

$3.99

$

In Stock, only 2 left!

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

69

Husqvarna 590863501

GASKET GASKET.EXHAUST.LONCIN 3

$4.99

$

Usually ships in 3-10 days

0
