TS 138 (960410367-02) - Husqvarna 38" Garden Tractor (2017-04) MOWER DECK / CUTTING DECK Parts Diagram

38" Garden Tractor

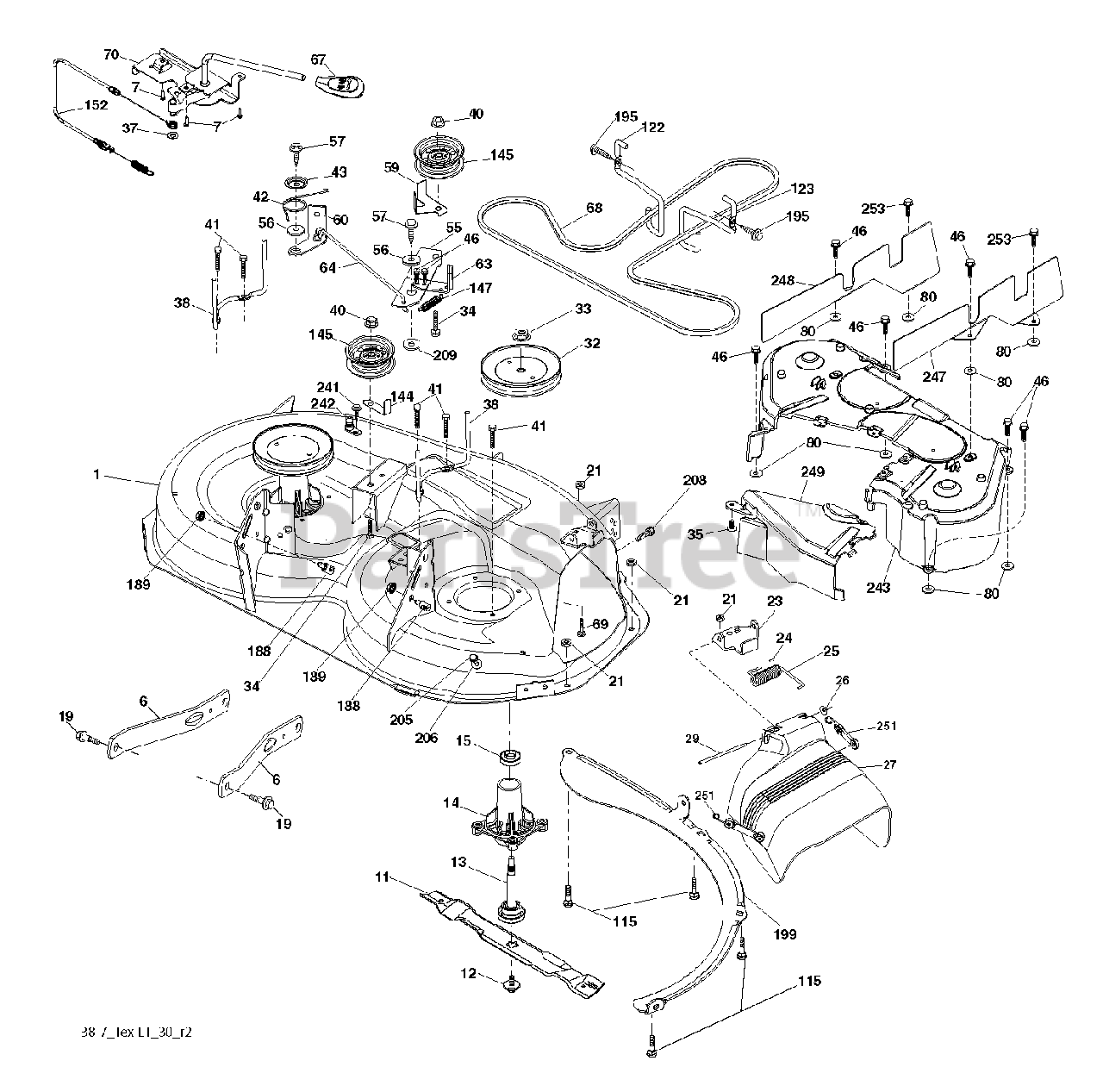

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Husqvarna 587771802

DECK.38.WELDMENT.GREY
(Superseded to 583719801)

$284.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

11

Husqvarna 581116301

BLADE.2 IN 1.38"DECK
(Superseded to 581116302)

$17.99

$

In Stock, only 1 left!

0

12

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 587256501

SHAFT ASM.MNDRL.N/GREASEABLE
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

14

Husqvarna 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

Husqvarna 585323901

BEARING.MANDREL.TOP.EXTENDED

$14.99

$

In Stock, only 2 left!

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 5

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 15

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532401618

SHIELD ASM.DFLCTR MWR.38-7"BLK

$

$

Not available

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 532199789

PULLEY.MANDREL.5.0.PD.38"

$20.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532133835

FASTENER.XMAS.TREE

$7.49

$

Usually ships in 3-10 days

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532199541

KEEPER BELT LH MANDREL
(Superseded to 532400140)

$53.99

$

In Stock, only 1 left!

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 8

0

43

Husqvarna 532197256

SRPING.TORSION.RETAINE

$6.49

$

In Stock, Qty 8

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

55

$

$

Not available

56

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0

60

Husqvarna 532199471

ARM BRAKE MOWER RH 38"
(Superseded to 532400132)

$17.99

$

In Stock, only 3 left!

0

63

Husqvarna 532199470

RP ARM.BRAKE.MOWER.38"LH.TEX
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

64

Husqvarna 532199790

LINK BRAKE
(Superseded to 532199918)

$24.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

$60.99

$

In Stock, only 1 left!

0

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

70

Husqvarna 532401246

CLUTCH.ASM.MANUAL.LT.PRED

$80.99

$

In Stock, only 1 left!

0

80

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

115

Husqvarna 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

122

Husqvarna 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

$7.49

$

In Stock, Qty 6

0

123

Husqvarna 532197259

KEEPER BELT RH

$

$

Not available

144

Husqvarna 532193414

KEEPER BELT

$6.49

$

In Stock, only 1 left!

0

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 5

0

147

Husqvarna 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 7

0

152

Husqvarna 532435111

CABLE.CLUTCH.MANUAL.

$34.99

$

In Stock, only 1 left!

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

195

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

199

Husqvarna 532400095

BAFFLE.VORTEX.FRONT.38"

$18.99

$

Usually ships in 3-10 days

0

205

Husqvarna 17490416

(Superseded to 583608301)

$6.49

$

Usually ships in 3-10 days

0

206

Husqvarna 19091416

Washer, 9/32 X 7/8 X 16 Gauge
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

208

Husqvarna 17670608

(Superseded to 817670608)

$6.49

$

Usually ships in 3-10 days

0

209

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

243

Husqvarna 532406510

COVER DECK 38-7
(Superseded to 583298801)

$51.99

$

Usually ships in 3-10 days

0

247

Husqvarna 532430258

SHIELD DECK RIGHT
(Superseded to 583457301)

$34.99

$

Usually ships in 3-10 days

0

248

Husqvarna 532430259

SHIELD DECK LEFT
(Superseded to 589009502)

$13.99

$

Usually ships in 3-10 days

0

249

Husqvarna 532406514

COVER CABLE CLUTCH
(Superseded to 583298901)

$20.99

$

Usually ships in 3-10 days

0

251

Husqvarna 532436087

ELASTIC STRAP KIT
(Superseded to 583508201)

$14.99

$

Usually ships in 3-10 days

0

253

Husqvarna 532427350

SCREW
(Superseded to 583441001)

$4.99

$

Usually ships in 3-10 days

0

--

Husqvarna 587253301

MANDREL.NONGREASEABLE.TALL
(Superseded to 587819701)

Note: MANDREL ASSEMBLY (Includes Housing (Key 14) Shaft Assembly (Key 13) and Bearing Only (Key 15)- Pulley /Nut /Washer and Blade Bolt /Wasdhers Not Included)

$56.99

$

In Stock, Qty 20+

0

--

Husqvarna 532443358

CUTTING DECK DECK.SVC.38.CC.NG
(Superseded to 583569601)

$970.99

$

Usually ships in 3-10 days

0
