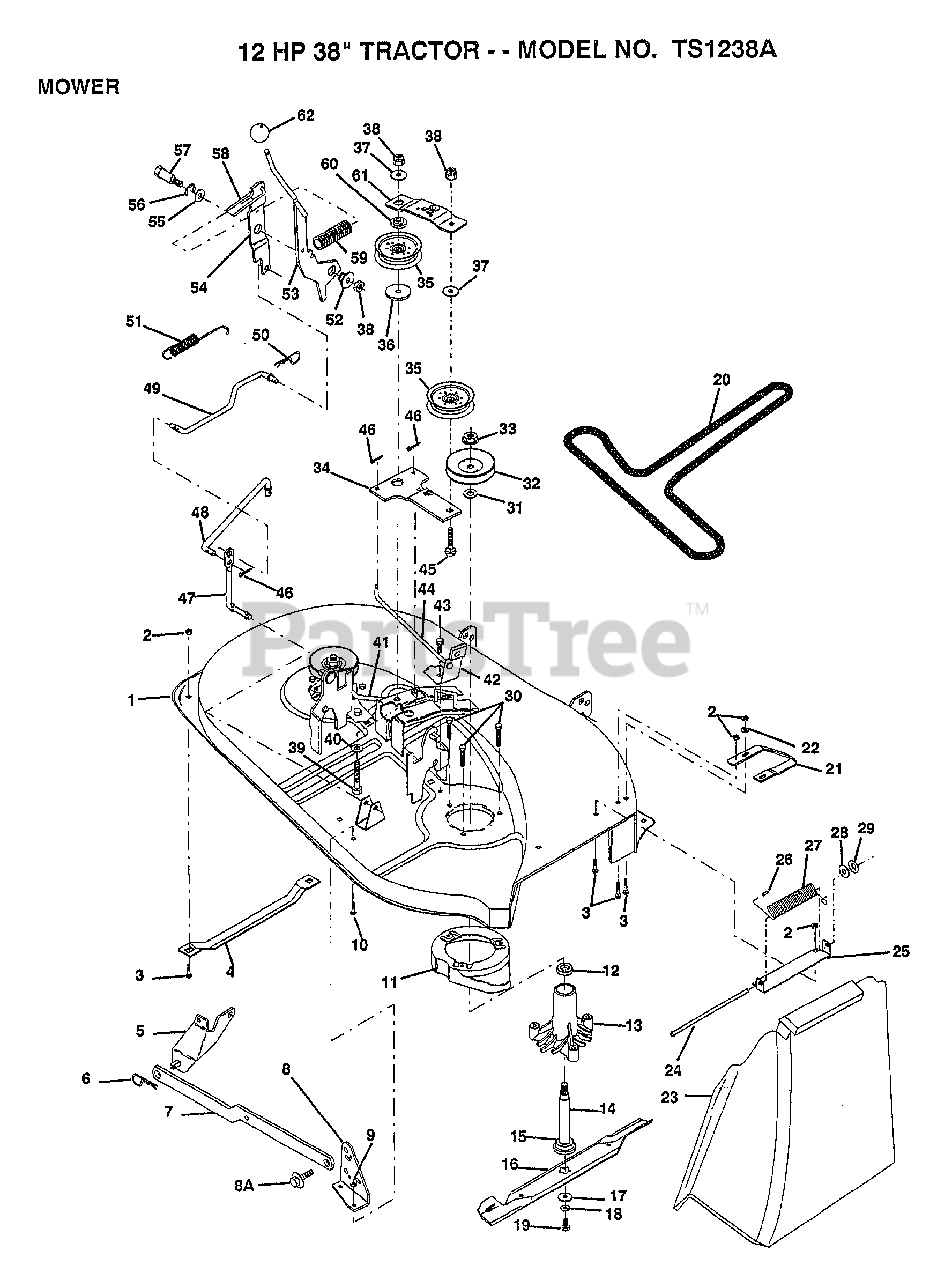

TS 1238 A - Electrolux/AYP Lawn Tractor (1993) 12HP 38"/MOWER Parts Diagram

Lawn Tractor

12HP 38"/MOWER Parts Diagram

  • Title
1

Electrolux/AYP 138026

SUB= 145775

$

$

Not available

2

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 7631J

RUNNER-LH M
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 138017

BRKT ASM SWAY BAR
(Superseded to 532138017)

$12.99

$

Usually ships in 3-10 days

0

6

Murray 4939M

SUB= 85902

$

$

Not available

7

Electrolux/AYP 130832

SUB= 130833
(Superseded to 532130832)

$

$

Not available

8

Electrolux/AYP 138440

BRKT DECK SW BAR
(Superseded to 532138440)

$6.49

$

Usually ships in 3-10 days

0

8A

Electrolux/AYP 132827

BOLT SHD 5/16-18
(Superseded to 532132827)

$

$

Not available

9

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 136929

SUB= 140329

$

$

Not available

12

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$13.99

$

In Stock, Qty 11

0

13

Electrolux/AYP 128774

HSG ASM MANDREL
(Superseded to 532128774)

$34.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 137645

SUB= 137646
(Superseded to 532137645)

$34.99

$

In Stock, only 3 left!

0

15

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 134148

"BLADE.38""V.MULCH"
(Superseded to 532134148)

$26.99

$

In Stock, only 2 left!

0

17

Electrolux/AYP 129962

WASHER BLADE
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

19

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 131290

BELT-V.88.12.MW
(Superseded to 532144200)

$45.99

$

In Stock, Qty 5

0

21

Electrolux/AYP 128772

RUNNER RH
(Superseded to 532128772)

$

$

Not available

22

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 106736X

DEFLECTOR-SHLD T
(Superseded to 532106736)

$

$

Not available

24

Electrolux/AYP 106735X

ROD-HINGE T
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

25

Electrolux/AYP 137607

BRKT DEFLECTOR
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

26

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 123713X

SPRING TORSION
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 11

0

29

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 17580520

BOLT.5/16-18X1.25
(Superseded to 817580520)

$4.99

$

In Stock, only 3 left!

0

31

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 129206

SUB= 153532
(Superseded to 532129206)

$

$

Not available

33

Electrolux/AYP 137266

SUB= 139729
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 133840

IDLER ARM ASSY
(Superseded to 532133840)

$

$

Not available

35

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

36

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

37

Electrolux/AYP 19131612

WASHER GT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 74600636

BOLT
(Superseded to 874600636)

$

$

Not available

40

Electrolux/AYP 19131612

WASHER GT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 131289

BRAKE ROD LH
(Superseded to 532131289)

$

$

Not available

42

Electrolux/AYP 130840

BRAKE ASM
(Superseded to 532130840)

$12.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

44

Electrolux/AYP 131288

BRAKE ROD RH
(Superseded to 532131288)

$8.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 72110614

BOLT
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 133551

PIVOT ROD
(Superseded to 532133551)

$8.99

$

In Stock, only 1 left!

0

48

Electrolux/AYP 133504

CLUTCH ROD SECOND
(Superseded to 532133504)

$

$

Not available

49

Electrolux/AYP 134666

"ROD, CLUTCH PRIM"

$

$

Not available

50

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

51

Electrolux/AYP 131870

RETURN SPRING
(Superseded to 532131870)

$18.99

$

In Stock, only 1 left!

0

52

Electrolux/AYP 127498

BUSHING
(Superseded to 532127498)

$

$

Not available

53

Electrolux/AYP 133573

CLUTCH ARM PRI AS

$

$

Not available

54

Electrolux/AYP 127847

CLUTCH ARM SECOND
(Superseded to 532127847)

$

$

Not available

55

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 128903

SHOULDER BOLT
(Superseded to 532128903)

$6.99

$

In Stock, only 2 left!

0

58

Electrolux/AYP 127845

SPRING KEEPER
(Superseded to 532127845)

$

$

Not available

59

Electrolux/AYP 128759

SUB= 918128759
(Superseded to 532153701)

$

$

Not available

60

Electrolux/AYP 133502

RETAINER SPACER
(Superseded to 532133502)

$6.49

$

In Stock, only 1 left!

0

61

Electrolux/AYP 133503

IDLER ARM STIFF
(Superseded to 532133503)

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 106932X

KNOB T(3/8 HOLE)
(Superseded to 532106932)

$7.99

$

In Stock, Qty 5

0

Electrolux/AYP 138360

SUB= 142820

$

$

Not available

Electrolux/AYP 130794

MANDREL ASM
(Superseded to 532130794)

$56.99

$

In Stock, only 4 left!

0
