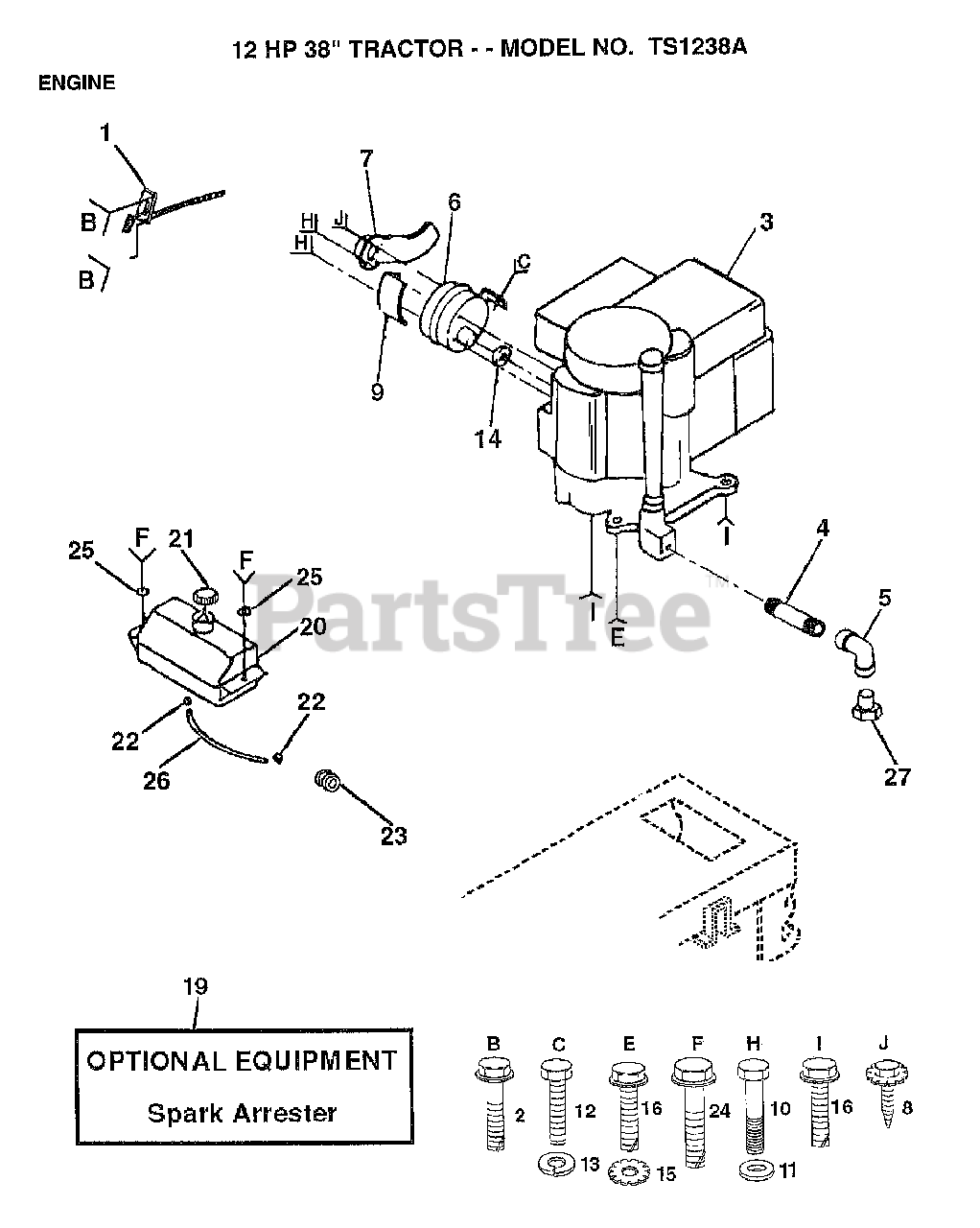

  • Title
1

Electrolux/AYP 132771

THROTTLE CONTROL

$

$

Not available

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

CHECK WITH SUPPLIER

$

$

Not available

4

Electrolux/AYP 13280324

PIPE NIPPLE
(Superseded to 813280324)

$

$

Not available

5

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

6

Electrolux/AYP 101273M

MUFFLER LTV
(Superseded to 583638801)

$72.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 108767X

DEFLECTOR MUFFLER
(Superseded to 583655701)

$42.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 17030808

SUB= 17030814
(Superseded to 817030808)

$

$

Not available

9

Electrolux/AYP 101159L

SHIELD HEAT LTV
(Superseded to 583638401)

$3.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 74780556

"BOLT,HEX"
(Superseded to 583614601)

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 19111012

WASHER T
(Superseded to 819111012)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

14

$

$

Not available

15

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

19

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

20

Electrolux/AYP 109202X

TANK.FUEL.LT.
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

23

Murray 124028X

SUB= 532124028

$

$

Not available

24

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

25

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 8548R

FUEL LINE T
(Superseded to 532008548)

$7.99

$

In Stock, only 1 left!

0

27

CHECK WITH SUPPLIER

$

$

Not available
