Trencher - BCS America Mini Trencher Attachment Mini Trencher (SN: 10000 & Above) Parts Diagram

Mini Trencher Attachment

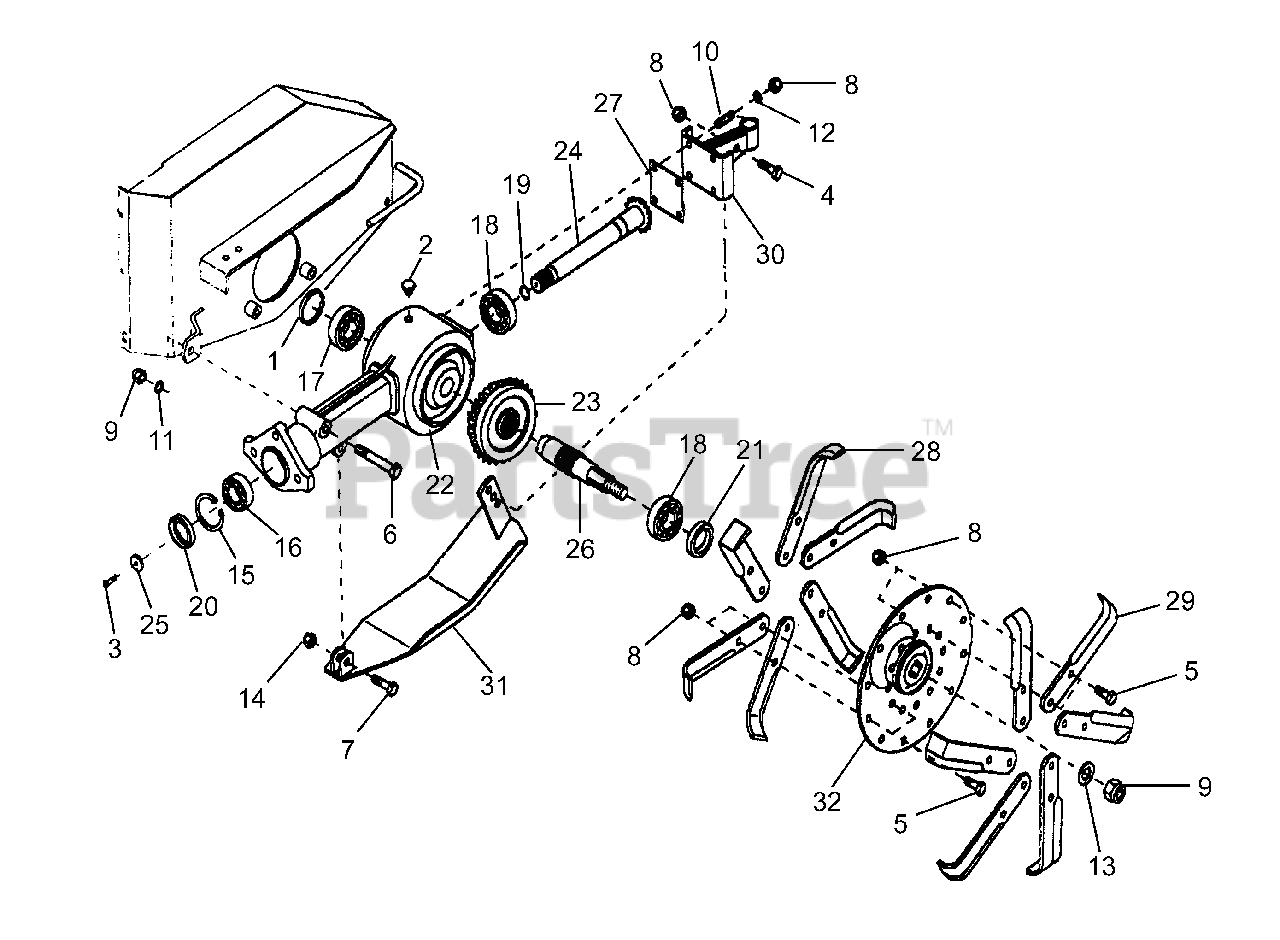

Mini Trencher (SN: 10000 & Above) Parts Diagram

  • Title

1

BCS America 300.00070

PLUG

$

$

Currently unavailable

2

BCS America 300.40001

PLUG 1/4 GAS UNI 364

$5.49

$

In Stock, only 2 left!

0

3

BCS America 311.12093

HEX SCREW M6X20 UNI 5739 8G

$0.99

$

In Stock, only 3 left!

0

4

BCS America 311.12211

HEX. SCREW M10X30 UNI 5739-8G

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 311.12219

HEX. SCREW M10X25 UNI 5739-8G

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 311.12293

HEX SCREW M12X80 UNI 5737 8G

$1.99

$

Usually ships in 5-8 days

0

7

312.12212

BOLT

$

$

Not available

8

BCS America 312.41105

SELF-LOCKING NUT

$1.99

$

Usually ships in 5-8 days

0

9

BCS America 312.41120

SELF-LOCKING NUT M12

$1.99

$

Usually ships in 5-8 days

0

10

BCS America 313.12101

STUD M10X37X19X15 8G

$7.99

$

Usually ships in 5-8 days

0

11

BCS America 314.11130

WASHER P.13X24 UNI 6592

$0.99

$

Usually ships in 5-8 days

0

12

BCS America 314.21101

TOP WASHER 10

$1.99

$

In Stock, only 3 left!

0

13

BCS America 314.21253

TOP WASHER 18

$9.49

$

Usually ships in 5-8 days

0

14

314.41100

LOCK NUT

$

$

Not available

15

BCS America 351.11052

INSIDE SEEGER D 52 DIN 472

$1.99

$

In Stock, Qty 5

0

16

BCS America 371.11255

BEARING SKF 25X52X15 6205

$15.99

$

In Stock, only 1 left!

0

17

BCS America 371.11300

BEARING

$

$

Currently unavailable

18

BCS America 371.41301

BEARING 30X62X16

$

$

Currently unavailable

19

381.11800

OR 4075 18.64X3.53

$

$

Not available

20

382.02002

OIL SEAL

$

$

Not available

21

BCS America 382.13001

OIL SEAL 30X52X10 NORMAL

$15.99

$

Usually ships in 5-8 days

0

22

BCS America 512.49675

CENTRE CULTIVATOR CASING

$1002.99

$

Usually ships in 5-8 days

0

23

524.49737

GEAR/CROWN

$

$

Not available

24

524.59227

SHAFT

$

$

Not available

25

BCS America 561.42291

WASHER 7X25X4

$1.99

$

Usually ships in 5-8 days

0

26

564.59867

SHAFT

$

$

Not available

27

BCS America 580.49696

COVER SEAL

$1.99

$

Usually ships in 5-8 days

0

28

580.59862

LH KNIFE

$

$

Not available

29

580.59863

RH KNIFE

$

$

Not available

30

BCS America 590.49697

REAR COVER

$126.99

$

Usually ships in 5-8 days

0

31

590.59843

SKID PLATE

$

$

Not available

32

590.59859

DISC/TINE MOUNTING

$

$

Not available
