Trencher - BCS America Mini Trencher Attachment Mini Trencher (SN: 10000 & Above) Parts Diagram

Mini Trencher Attachment

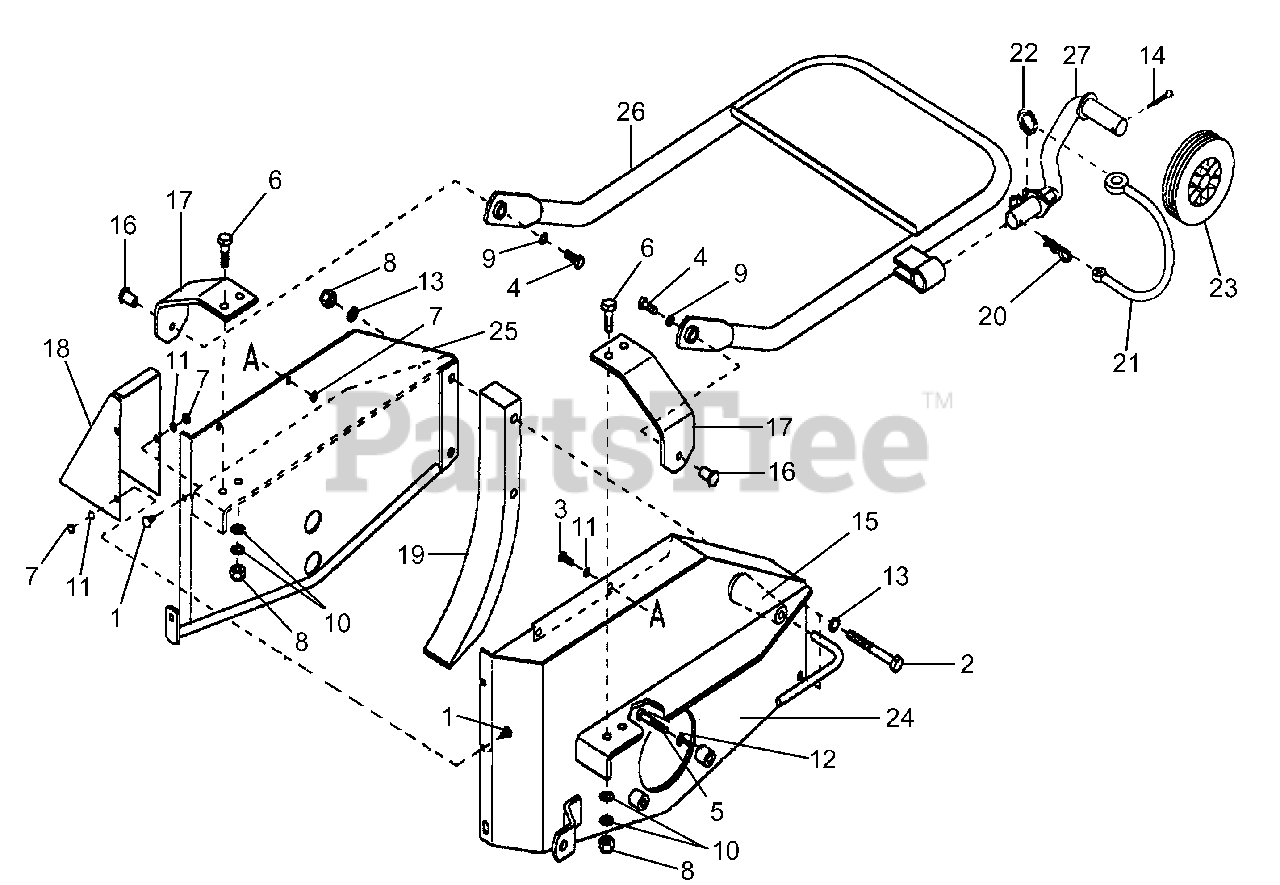

Mini Trencher (SN: 10000 & Above) Parts Diagram

  • Title

1

BCS America 311.00201

BOLT M6X12 AND SQUARE NUT

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.11224

HEX SCREW M10X85 UNI 5739 5S

$1.99

$

Usually ships in 5-8 days

0

3

BCS America 311.12090

HEX. SCREW M6X16 UNI 5739-8G

$0.99

$

In Stock, only 4 left!

0

4

BCS America 311.12150

HEX. SCREW M8X20 UNI 5739-8G

$1.49

$

In Stock, only 4 left!

0

5

BCS America 311.12157

HEX SCREW M8X50 UNI 5739-8G

$1.99

$

In Stock, only 3 left!

0

6

BCS America 311.12211

HEX. SCREW M10X30 UNI 5739-8G

$1.49

$

Usually ships in 5-8 days

0

7

BCS America 312.11060

NUT M6 UNI 5588-5S

$0.99

$

In Stock, Qty 8

0

8

BCS America 312.41100

LOCKNUT M 10

$1.49

$

In Stock, only 2 left!

0

9

BCS America 314.11084

WASHER P.8,4X17 UNI 6592

$0.99

$

In Stock, only 4 left!

0

10

BCS America 314.11104

FLAT WASHER10.5X18 UNI6592AC.

$0.99

$

In Stock, Qty 5

0

11

BCS America 314.21064

TOP WASHER 6 DIN 6796

$1.49

$

Usually ships in 5-8 days

0

12

BCS America 314.21083

SUPER WASHER 8 DIN6796 GALV.

$1.49

$

In Stock, Qty 7

0

13

BCS America 314.21101

TOP WASHER 10

$1.99

$

In Stock, only 3 left!

0

14

BCS America 341.10042

COTTER PIN 4X30

$0.99

$

Usually ships in 5-8 days

0

15

BCS America 551.42076

KNOB

$5.99

$

Usually ships in 5-8 days

0

16

BCS America 561.48287

PIN

$9.99

$

In Stock, only 2 left!

0

17

BCS America 561.59847

BRACKET

$

$

Currently unavailable

18

BCS America 561.59849

DEFLECTOR

$47.99

$

Usually ships in 5-8 days

0

19

BCS America 563.59857

DRAG BAR

$

$

Currently unavailable

20

BCS America 580.02052

PIN

$1.99

$

In Stock, only 3 left!

0

21

BCS America 580.27985

STRAP

$

$

Currently unavailable

22

BCS America 580.28125

LINK-ROD

$

$

Currently unavailable

23

BCS America 580.42468

WHEEL

$

$

Currently unavailable

24

BCS America 590.59830

SIDE PANEL LH

$

$

Currently unavailable

25

BCS America 590.59840

SIDE PANEL RH

$

$

Currently unavailable

26

BCS America 590.59850

GUARD

$262.99

$

Usually ships in 5-8 days

0

27

BCS America 590.59864

SPINDLE ARM

$

$

Currently unavailable
