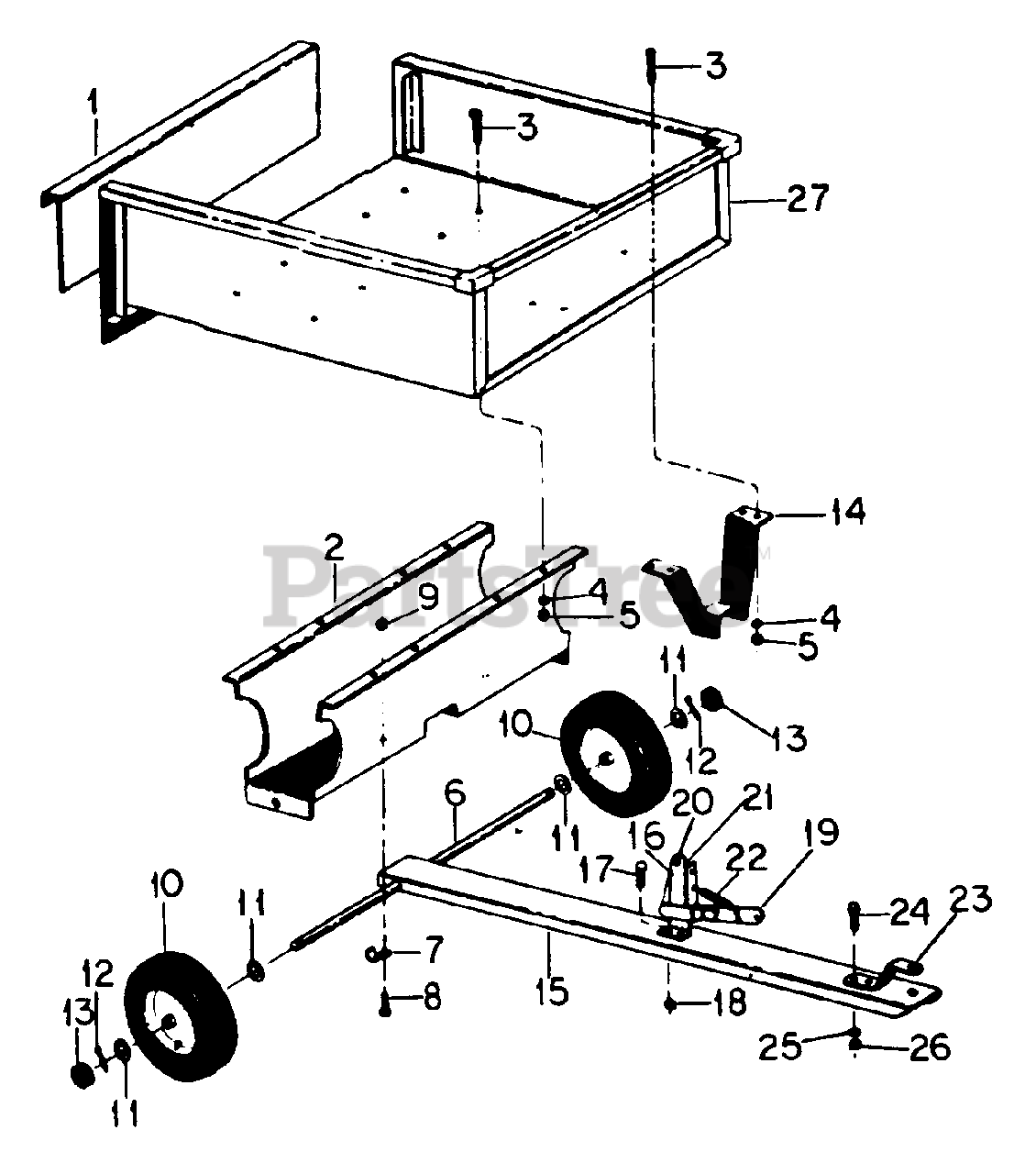

Trailer 4 - Cub Cadet Trailer (1976 - 1982) Body, Drawbar, Latch And Wheels (Part 2) Parts Diagram

Trailer

Body, Drawbar, Latch And Wheels (Part 2) Parts Diagram

  • Title
1

Cub Cadet 106821-C1

GATE, TAIL

$

$

Currently unavailable

2

Cub Cadet 106823-C1

SUPPORT, WHEEL

$

$

Currently unavailable

3

Cub Cadet 20710-R1

SCREW, 1/4 X 1/2 ZNP P/HDS MACH

$

$

Currently unavailable

4

Cub Cadet 120380

WASHER, 1/4 LOCK

$

$

Currently unavailable

5

Cub Cadet 120375

NUT, 1/4 TYPE 5

$

$

Currently unavailable

6

Cub Cadet 106825-C1

AXLE, WHEEL

$

$

Currently unavailable

7

Cub Cadet 106827-C1

CLAMP, AXLE

$

$

Currently unavailable

8

180016

BOLT, 1/4 X 1/2 TYPE 5

$

$

Not available

9

Cub Cadet 273924

NUT, 1/4 CAD P/T LOCK TYPE 5

$

$

Currently unavailable

10

Cub Cadet 106830-C91

WHEEL ASSY W/TIRE

Note: CONSISTS OF P/N 107060-C1, AND 387841-R91

$

$

Currently unavailable

Cub Cadet 107060-C1

BEARING, WHEEL

$

$

Currently unavailable

Cub Cadet 387841-R91

VALVE, TR 413

$

$

Currently unavailable

11

Cub Cadet 28585-R1

WASHER, 1.031 X 1.62 X .06 ZND

$

$

Currently unavailable

12

Cub Cadet 103386

PIN, 1/8 X 1-1/4 PLN COT

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Cub Cadet 106833-C1

BRACKET, LATCH STAND

$

$

Currently unavailable

$

$

Currently unavailable

16

Cub Cadet 106837-C1

BRACKET, LATCH LOCK

$

$

Currently unavailable

17

180016

BOLT, 1/4 X 1/2 TYPE 5

$

$

Not available

18

Cub Cadet 273924

NUT, 1/4 CAD P/T LOCK TYPE 5

$

$

Currently unavailable

19

Cub Cadet 106838-C1

BRACKET ASSY, LOCK

$

$

Currently unavailable

20

180020

BOLT, 1/4 X 3/4 TYPE 5

$

$

Not available

21

Cub Cadet 273924

NUT, 1/4 CAD P/T LOCK TYPE 5

$

$

Currently unavailable

22

Cub Cadet 106839-C1

SPRING, EXTENSION

$

$

Currently unavailable

23

Cub Cadet 106840-C1

BRACKET, HITCH

$

$

Currently unavailable

24

Cub Cadet 180122

BOLT, 3/8 X 1 TYPE 5

$

$

Currently unavailable

25

Cub Cadet 120382

WASHER, 3/8 LOCK

$

$

Currently unavailable

26

Cub Cadet 120377

NUT, 3/8 TYPE 5

$

$

Currently unavailable

27

$BODY

$

$

Not available
