Trailer 1 - Cub Cadet Trailer (1960 - 1967) 1 Trailer - Body, Chassis Dump Latch And Wheels Parts Diagram

Trailer

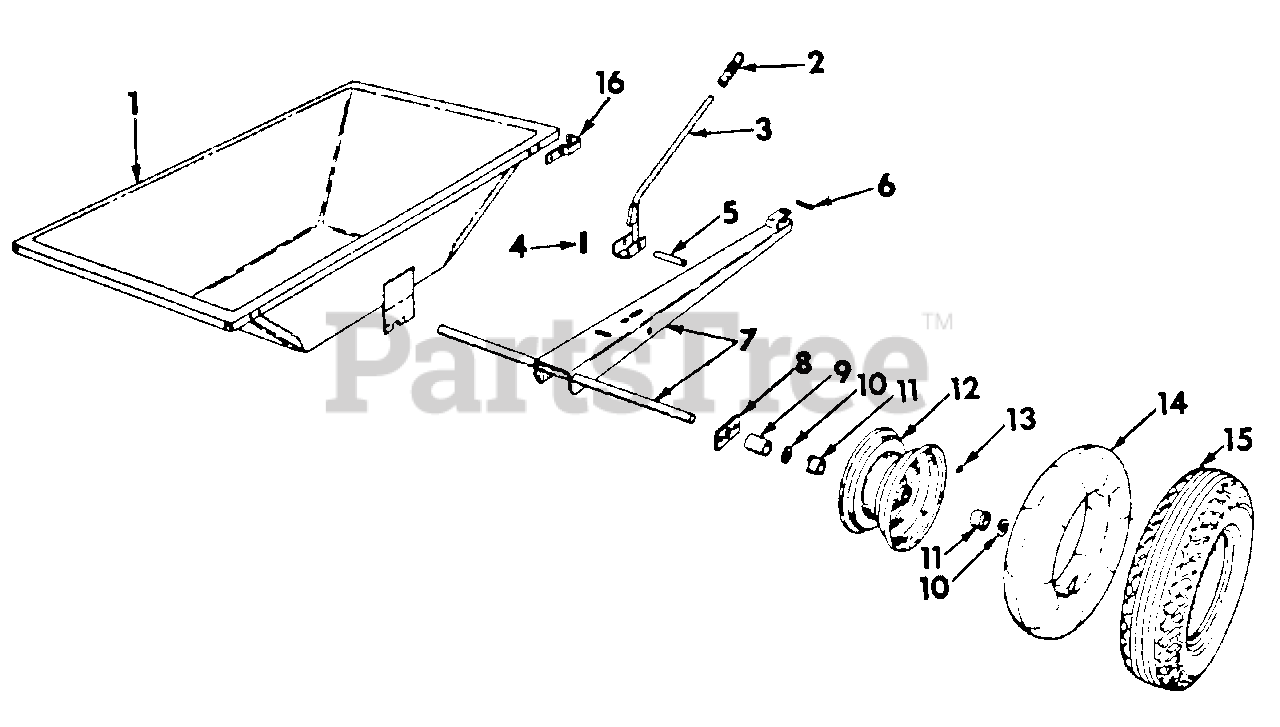

1 Trailer - Body, Chassis Dump Latch And Wheels Parts Diagram

  • Title

1

Body Assy, Trailer

Note: -Not serviced separately order complete No. 1 trailer

$

$

Not available

2

Cub Cadet IH-459386-R1

Grip, Latch Handle

$

$

Currently unavailable

3

Cub Cadet IH-464608-R1

Latch Assembly, Dump

$

$

Currently unavailable

4

Cub Cadet IH-464605-R1

Spring, Latch

$

$

Currently unavailable

5

Cub Cadet IH-464607-R1

Pin, Latch Pivot

$

$

Currently unavailable

Cub Cadet IH-137185

Pin, 1/8 X 1 C-Z
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet IH-473443-R1

Pin, Quick Attachable Cot
(Superseded to 914-3003)

$4.99

$

In Stock, only 1 left!

0

7

Cub Cadet IH-464612-R91

Chassis Assembly, Body

$

$

Currently unavailable

Cub Cadet IH-177923

Pin, 1/8 X 3/4 C-Z Cot
(Superseded to 914-0474)

$

$

Not available

Note: No Longer Available

$

$

Not available

Pin, 3/8 X 2-5/16

Note: No Longer Available

$

$

Not available

Pin, 1/2 X 1-15/16

Note: No Longer Available

$

$

Not available

Cub Cadet IH-120394

Washer, 13/32 X 13/16 X 16 Ga C-Z
(Superseded to 936-0140)

$

$

Not available

8

Cub Cadet IH-464606-R1

Retainer, Axle

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

Note: No Longer Available

$

$

Not available

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

9

Spacer, Wheel

Note: No Longer Available

$

$

Not available

10

Washer, 15/16 X 1-3/4 X 10 Ga C-Z -6

Note: Or as required. No Longer Available

$

$

Not available

11

Cub Cadet IH-376188-R1

Bearing, Wheel

Note: -Use only w/Wheel 376 187 R91

$

$

Not available

Cub Cadet IH-384881-R91

Bearing Assy, Trailer Wheel Ball

Note: -Use w/Wheel 386 188 R92

$

$

Currently unavailable

12

Cub Cadet IH-386188-R92

Wheel Assy -Will work for 376 187 R91

$

$

Not available

13

Cub Cadet IH-110146-R91

Fitting, 1/4-28 Str Lub

Note: -Used only w/Wheel 376 187 R91

$

$

Not available

14

Tire, Pneumatic Tire Inner -4.80/4.00

$

$

Not available

15

Tire, Pneumatic -4.80/4.00 X 8- -Rim tread

$

$

Not available

16

Cub Cadet IH-481608-R91

Parts Accessory, Stake Pocket

$

$

Currently unavailable

Cub Cadet IH-481607-R1

Brace, Stake Pocket

$

$

Currently unavailable

Cub Cadet IH-18508-R1

Bolt, 3/8 X 3/4 C-Z Sq-Nk Crg
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8 C-Z Hex
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet IH-1001029-R3

Product Graphics, IH Decal

$

$

Currently unavailable

Cub Cadet IH-1000693-R3

Product Graphics, IH Company of Canada Decal
(Superseded to KH-82-755-28)

$

$

Not available

Cub Cadet IH-1001718-R1

Product Graphics, Made in U.S.A.

$

$

Currently unavailable
