TR31107R37E - Toro 7" x 60" Rock and Frost Chain, Utility Trencher 7 INCH X 60 INCH ROCK AND FROST CHAIN ASSEMBLY Parts Diagram

7" x 60" Rock and Frost Chain, Utility Trencher

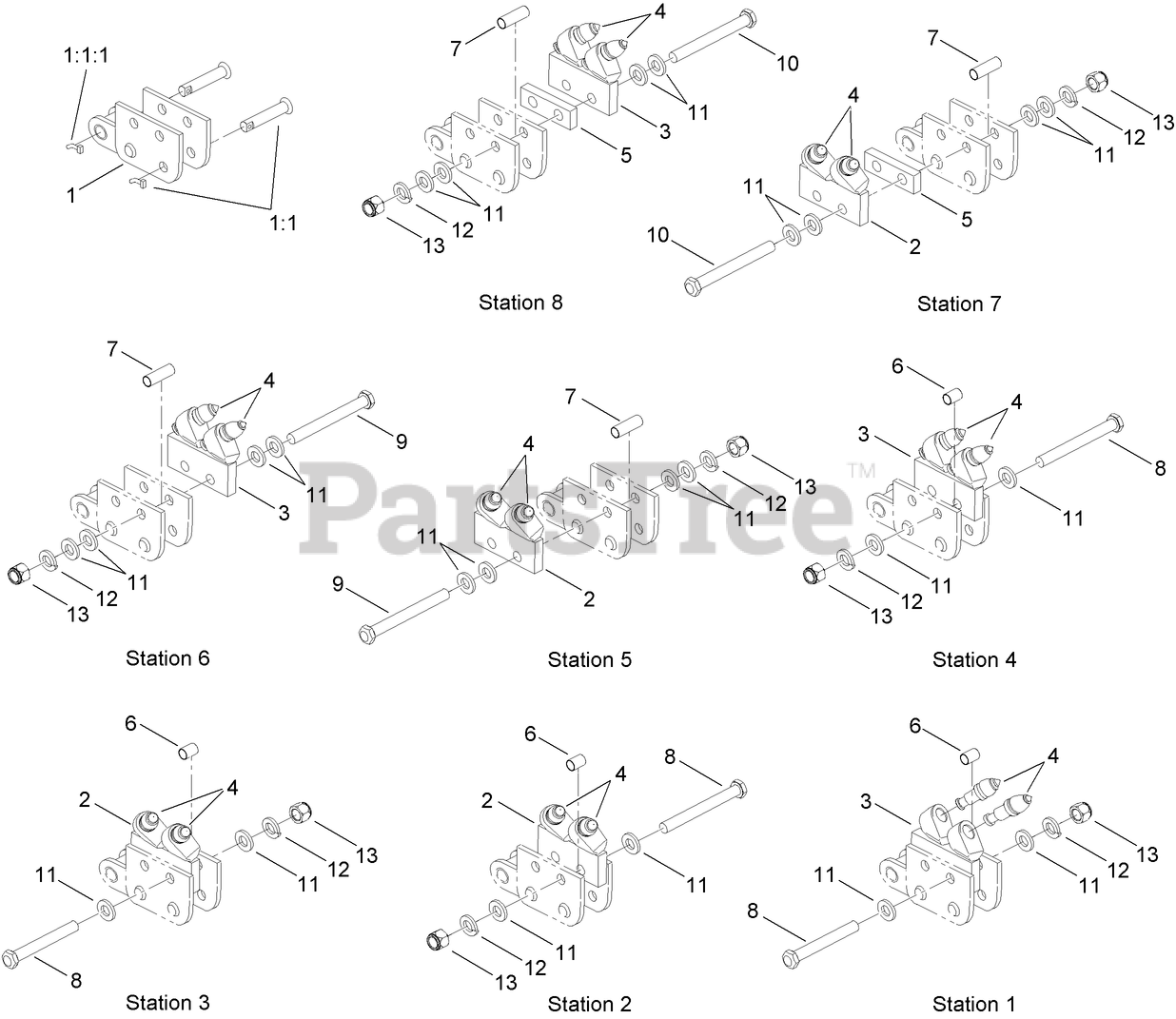

7 INCH X 60 INCH ROCK AND FROST CHAIN ASSEMBLY Parts Diagram

  • Title

1

Toro 131-6256

CHAIN REPAIR LINK ASM

$195.99

$

Usually ships in 3-6 days

0

1:1

Toro 131-6257

NOTCHED PIN AND KEEPER ASM

$29.99

$

Usually ships in 3-6 days

0

1:1:1

Toro 131-6258

PIN-KEEPER

$8.99

$

Usually ships in 3-6 days

0

2

Toro 131-1377

HOLDER-BIT, RH

$

$

Currently unavailable

3

Toro 131-1378

HOLDER-BIT, LH

$

$

Currently unavailable

4

Toro 131-1440

BIT-RETAINER, REAR

$

$

Currently unavailable

5

Toro 131-1374

SPACER-FLAT

$19.99

$

Usually ships in 3-6 days

0

6

Toro 131-1393

SPACER-TUBE, INSIDE ADAPTER

$8.99

$

Usually ships in 3-6 days

0

7

Toro 131-1405

SPACER-TUBE, OUTSIDE MOUNT

$10.99

$

Usually ships in 3-6 days

0

8

Toro 131-1416

BOLT-HH

$11.99

$

Usually ships in 3-6 days

0

9

Toro 131-1418

BOLT-HH

$17.99

$

Usually ships in 3-6 days

0

10

Toro 131-1419

BOLT-HH

$18.99

$

Usually ships in 3-6 days

0

11

Toro 131-1420

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

12

Toro 131-1422

WASHER-LOCK

$1.49

$

Usually ships in 3-6 days

0

13

Toro 131-1421

NUT-LOCK

$3.49

$

Usually ships in 3-6 days

0
