TR23KC524 - Exmark 52" Turf Ranger Front Mount Mower, 23hp Kohler (SN: 370000 - 439999) (2003) Mower Deck Cutter Housings - Outer Cutter Housing Parts Diagram

52" Turf Ranger Front Mount Mower, 23hp Kohler

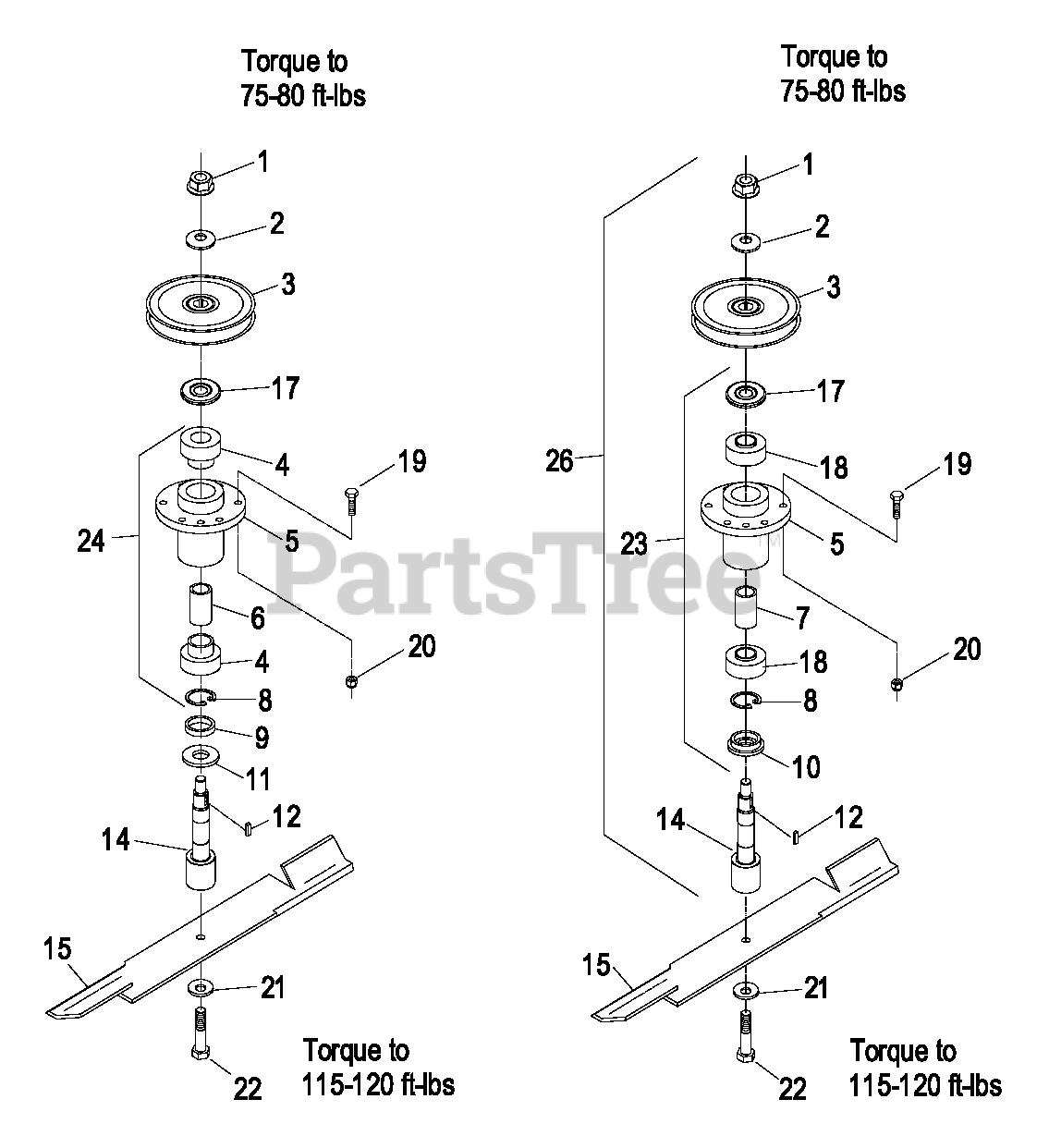

Mower Deck Cutter Housings - Outer Cutter Housing Parts Diagram

  • Title

1

Exmark 32128-58

NUT FLANGE

$2.49

$

In Stock, only 2 left!

0

2

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, Qty 9

0

3

Exmark 1-553039

SHEAVE,BLADE DRIVE

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$

$

Not available

4

Exmark 1-513016

BEARING

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$82.99

$

In Stock, Qty 20+

0

5

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$266.99

$

In Stock, only 4 left!

0

6

Exmark 1-323528

SPACER-BEARING

$9.99

$

In Stock, Qty 13

0

7

Exmark 103-2534

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

8

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

9

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 11

0

10

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 2 left!

0

11

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, Qty 8

0

12

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

13

Exmark 103-0959

DISCONTINUED

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$

$

Not available

14

Exmark 103-0958

SHAFT,SPINDLE SHORT

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$149.99

$

Usually ships in 3-6 days

0

15

Exmark 103-2528

103-6584-S
(Superseded to 103-6584-S)

$31.99

$

In Stock, Qty 20+

0

Exmark 103-1578

103-1578-S
(Superseded to 103-1578-S)

$37.99

$

In Stock, only 3 left!

0

Exmark 103-2508

103-6580-S
(Superseded to 103-6580-S)

$34.99

$

In Stock, Qty 13

0

Exmark 103-2518

103-6582-S
(Superseded to 103-6582-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. (Mulch Kit P/N MK523 or MK603)

$31.99

$

In Stock, Qty 20+

0

15

Exmark 103-2530

103-2530-S
(Superseded to 103-2530-S)

$34.99

$

In Stock, Qty 20+

0

Exmark 103-1580

103-1580-S
(Superseded to 103-1580-S)

$36.99

$

In Stock, Qty 14

0

Exmark 103-2510

103-2510-S
(Superseded to 103-2510-S)

$38.99

$

In Stock, Qty 14

0

Exmark 103-0301

103-0301-S
(Superseded to 103-0301-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. (Mulch Kit P/N MK523 or MK603)

$37.99

$

In Stock, Qty 20+

0

16

Exmark 1-603581

SHEAVE,MOWER DRIVE

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$163.99

$

Usually ships in 3-6 days

0

Exmark 103-2270

SHEAVE,DECK DRIVE

$79.99

$

Usually ships in 3-6 days

0

17

Exmark 103-1331

GUARD,BEARING TOP .880

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$6.49

$

In Stock, only 1 left!

0

18

Exmark 103-2477

BEARING-JACKSHAFT

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$59.99

$

In Stock, Qty 12

0

19

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

20

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 20+

0

22

Exmark 103-0862

SCREW-CAP

$5.99

$

In Stock, Qty 20+

0

23

Exmark 103-2547

103-8280
(Superseded to 103-8280)

$266.99

$

In Stock, only 4 left!

0

24

Cutter Housing Assy

Note: This assembly now serviced by kit number 103-2457.

$

$

Not available

25

Exmark 103-1185

ASM,CUTTER HSG SERVICE

Note: Complete cutter housings also include items 21 & 22.

$1005.99

$

Usually ships in 3-6 days

0

Exmark 103-1186

ASM,CUTTER HSG SERVICE

$

$

Not available

26

Exmark 103-1187

ASM,CUTTER HSG SERVICE

Note: Complete cutter housings also include items 21 & 22.

$792.99

$

Usually ships in 3-6 days

0
