TR23KC524 - Exmark 52" Turf Ranger Front Mount Mower, 23hp Kohler (SN: 320000 - 369999) (2002) 52" Mower Deck FMD523 Parts Diagram

52" Turf Ranger Front Mount Mower, 23hp Kohler

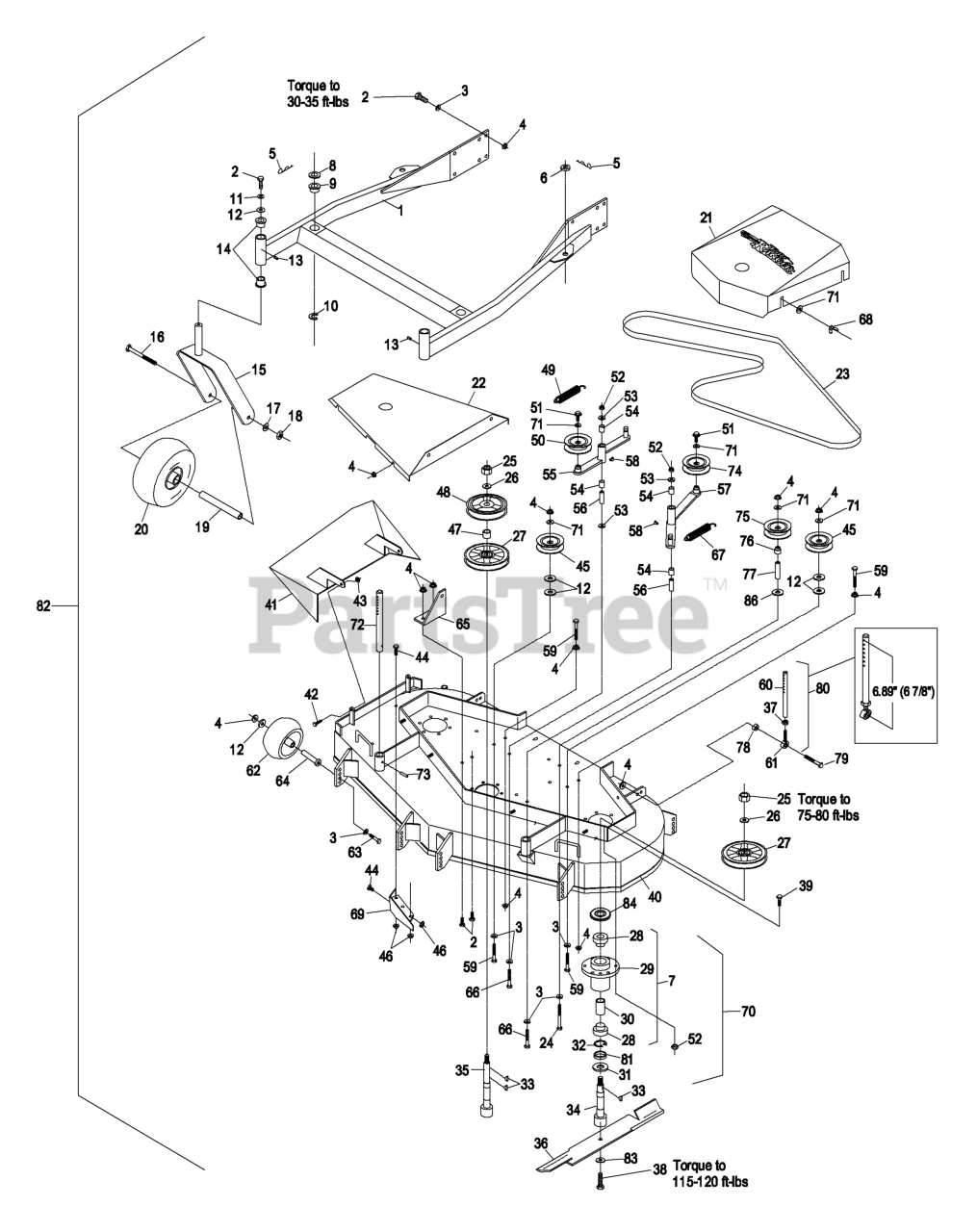

52" Mower Deck FMD523 Parts Diagram

  • Title

1

Exmark 1-604960

DISCONTINUED

$

$

Not available

2

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

3

Exmark 98-5975

WASHER-BELLEVILLE

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number.

$3.49

$

In Stock, Qty 20+

0

4

Exmark 3290-357

NUT-HHF, WHIZ

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number.

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

0

6

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

7

Exmark 1-634619

103-8280
(Superseded to 103-8280)

$266.99

$

In Stock, only 4 left!

0

8

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 20+

0

9

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 20+

0

10

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, Qty 20+

0

11

Exmark 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

12

Exmark 1-373034

WASHER

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number.

$3.49

$

In Stock, Qty 20+

0

13

Exmark 302-52

FITTING-GREASE

$6.99

$

In Stock, Qty 20+

0

14

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 20+

0

15

Exmark 1-522143-01

116-7941-01
(Superseded to 116-7941-01)

$95.99

$

In Stock, Qty 20+

0

16

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

17

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

18

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

19

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 20+

0

Exmark 103-2169

SPACER FRONT CASTER

Note: Can Be Identified By Yellow Zinc Plating.

$14.99

$

In Stock, Qty 11

0

20

Exmark 103-1224

103-2171
(Superseded to 103-2171)

Note: FMD523 & FMD603 Decks With S/N 274,506 & Above Have Semi-Pneumatic Caster Tires. FMD523 & FMD603 Decks With S/N 274,505 & Below Have Pneumatic Caster Tires.

$129.99

$

In Stock, only 3 left!

0

Exmark 1-513648

103-2171
(Superseded to 103-2171)

Note: FMD523 & FMD603 Decks With S/N 274,506 & Above Have Semi-Pneumatic Caster Tires. FMD523 & FMD603 Decks With S/N 274,505 & Below Have Pneumatic Caster Tires.

$129.99

$

In Stock, only 3 left!

0

Exmark 1-513809

BEARING

$35.99

$

In Stock, Qty 20+

0

Exmark 1-513810

BUSHING

$5.99

$

In Stock, Qty 20+

0

Exmark 103-2170

BUSHING, SP CASTER

Note: Can Be Identified By A Groove On The Face.

$9.49

$

In Stock, Qty 6

0

Exmark 1-513807

103-2171
(Superseded to 103-2171)

$129.99

$

In Stock, only 3 left!

0

Exmark 1-513808

TIRE

$43.99

$

In Stock, only 4 left!

0

21

Exmark 1-544835

COVER W/DECAL TR/FMD523

$

$

Not available

22

Exmark 1-602545-01

DISCONTINUED

$

$

Not available

23

Exmark 1-603576

BELT,BLADE DRIVE
(Superseded to 1-603576-SL)

$74.99

$

In Stock, only 3 left!

0

24

Exmark 323-16

SCREW-HH

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number; Turf Ranger S/N 319,999 & Below Only. Provided In Turf Ranger Bolt Bag.

$3.49

$

In Stock, Qty 6

0

Exmark 323-23

SCREW-HH

Note: Turf Ranger S/N 320,000 & Above Only. Provided In Turf Ranger Bolt Bag.

$5.49

$

In Stock, Qty 20+

0

25

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

26

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, Qty 9

0

27

Exmark 1-553039

SHEAVE,BLADE DRIVE

$

$

Not available

28

Exmark 1-513016

BEARING

$82.99

$

In Stock, Qty 20+

0

29

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$266.99

$

In Stock, only 4 left!

0

30

Exmark 1-323528

SPACER-BEARING

$9.99

$

In Stock, Qty 13

0

31

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, Qty 8

0

32

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

33

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

34

Exmark 103-0958

SHAFT,SPINDLE SHORT

$149.99

$

Usually ships in 3-6 days

0

35

Exmark 103-0959

DISCONTINUED

$

$

Not available

36

Exmark 1-633482

103-6584-S
(Superseded to 103-6584-S)

$31.99

$

In Stock, Qty 20+

0

Exmark 1-613251

103-1578-S
(Superseded to 103-1578-S)

$37.99

$

In Stock, only 3 left!

0

Exmark 1-633485

103-6580-S
(Superseded to 103-6580-S)

$34.99

$

In Stock, Qty 13

0

Exmark 1-633484

103-6582-S
(Superseded to 103-6582-S)

Note: Requires Installation Of Micro-Mulch Accessory For Proper Mulching. Mulch Kit P/N Mk523.

$31.99

$

In Stock, Qty 20+

0

Exmark 103-1578

103-1578-S
(Superseded to 103-1578-S)

$37.99

$

In Stock, only 3 left!

0

37

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

38

Exmark 103-0862

SCREW-CAP

$5.99

$

In Stock, Qty 20+

0

39

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

40

Exmark 1-612155

DISCONTINUED (EXMARK)

$

$

Not available

41

Exmark 1-602571-01

WLD,CHUTE DISCHARGE

$201.99

$

Usually ships in 3-6 days

0

42

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

43

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

44

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 15

0

45

Exmark 1-303516

IDLER,PULLEY

$59.99

$

In Stock, Qty 8

0

46

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

47

Exmark 1-603504

SPACER-TUBE

$19.99

$

Usually ships in 3-6 days

0

48

Exmark 1-603581

SHEAVE,MOWER DRIVE

$163.99

$

Usually ships in 3-6 days

0

49

Exmark 1-603413

SPRING-EXTENSION

$24.99

$

In Stock, only 4 left!

0

50

Exmark 1-603497

IDLER,PULLEY

$60.99

$

In Stock, only 1 left!

0

51

Exmark 3239-11

Screw, Whizlock 3/8-16 X 1

$

$

Currently unavailable

52

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

53

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

54

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

55

Exmark 1-602604

ASM,IDLER ARM

$149.99

$

Usually ships in 3-6 days

0

Exmark 1-602591-03

1-602604
(Superseded to 1-602604)

$149.99

$

Usually ships in 3-6 days

0

56

Exmark 1-603384

BUSHING-PIVOT, IDLER

$13.99

$

In Stock, Qty 20+

0

57

Exmark 1-602865

ASM,IDLER ARM

$143.99

$

In Stock, only 1 left!

0

Exmark 1-602867-03

Arm, Deck Drive Idler

$

$

Currently unavailable

58

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

59

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

60

Exmark 1-413525

LINK,SUPPORT

$49.99

$

In Stock, only 2 left!

0

61

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, Qty 8

0

62

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

63

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

64

Exmark 1-603602

BUSHING-ROLLER

$24.99

$

In Stock, Qty 20+

0

65

Exmark 1-603620-01

BRACKET,SPRING ANCHOR

$27.99

$

Usually ships in 3-6 days

0

66

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

67

Exmark 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, Qty 8

0

68

Exmark 1-543678

NUT-WING

$12.99

$

In Stock, Qty 5

0

69

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$51.99

$

In Stock, only 4 left!

0

70

Exmark 103-1185

ASM,CUTTER HSG SERVICE

Note: Includes Sheaves, Washer, Spacer & Nut.

$1005.99

$

Usually ships in 3-6 days

0

Exmark 103-1187

ASM,CUTTER HSG SERVICE

Note: Includes Sheaves, Washer & Nut.

$792.99

$

Usually ships in 3-6 days

0

71

Exmark 3256-24

WASHER-FLAT

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number.

$0.99

$

In Stock, Qty 20+

0

72

Exmark 1-603001

ROD,DECK SUPPORT

$50.99

$

In Stock, only 3 left!

0

73

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 20+

0

74

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

0

75

Exmark 1-603805

PULLEY-IDLER

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number.

$54.99

$

In Stock, Qty 11

0

76

Exmark 1-513791

BUSHING,IDLER

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number.

$5.49

$

Usually ships in 3-6 days

0

77

Exmark 1-603494

SPACER-FENDER

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number; Turf Ranger S/N 319,999 & Below Only. Provided In Turf Ranger Bolt Bag.

$

$

Not available

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

Note: Turf Ranger S/N 320,000 & Above Only. Provided In Turf Ranger Bolt Bag.

$11.99

$

In Stock, only 2 left!

0

78

Exmark 1-603050

SPACER

$7.49

$

In Stock, only 2 left!

0

79

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

80

Exmark 1-414521

1-411532
(Superseded to 1-411532)

Note: Must Be Assembled To 6.89" (Or Approx 6 7/8") Length Between Center Of Ball Joint & Center Of Furthest Hole. See Illustration.

$154.99

$

In Stock, only 3 left!

0

81

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 11

0

82

Exmark 103-1305

Asm,Complete Deck

$

$

Currently unavailable

83

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 20+

0

84

Exmark 103-1331

GUARD,BEARING TOP .880

$6.49

$

In Stock, only 1 left!

0

85

Exmark 103-2171

KIT, SP CASTER WHEEL REPL

Note: Kit 103-2171 Used To Install Semi-Pneumatic Casters On Machines Originally Fitted With Pneumatic Casters. Includes 103-1224 & 103-2169. Order 2 Per Machine.

$129.99

$

In Stock, only 3 left!

0

86

Exmark 1-373034

WASHER

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number; Turf Ranger S/N 319,999 & Below Only. Provided In Turf Ranger Bolt Bag.

$3.49

$

In Stock, Qty 20+

0

Exmark 1-601806

KIT - IDLER PULLEY

$123.99

$

Usually ships in 3-6 days

0

Exmark MK523

Mulch Kit

$

$

Currently unavailable

Exmark 1-850337

PAINT,SPRAY RED

$33.99

$

In Stock, Qty 16

0
