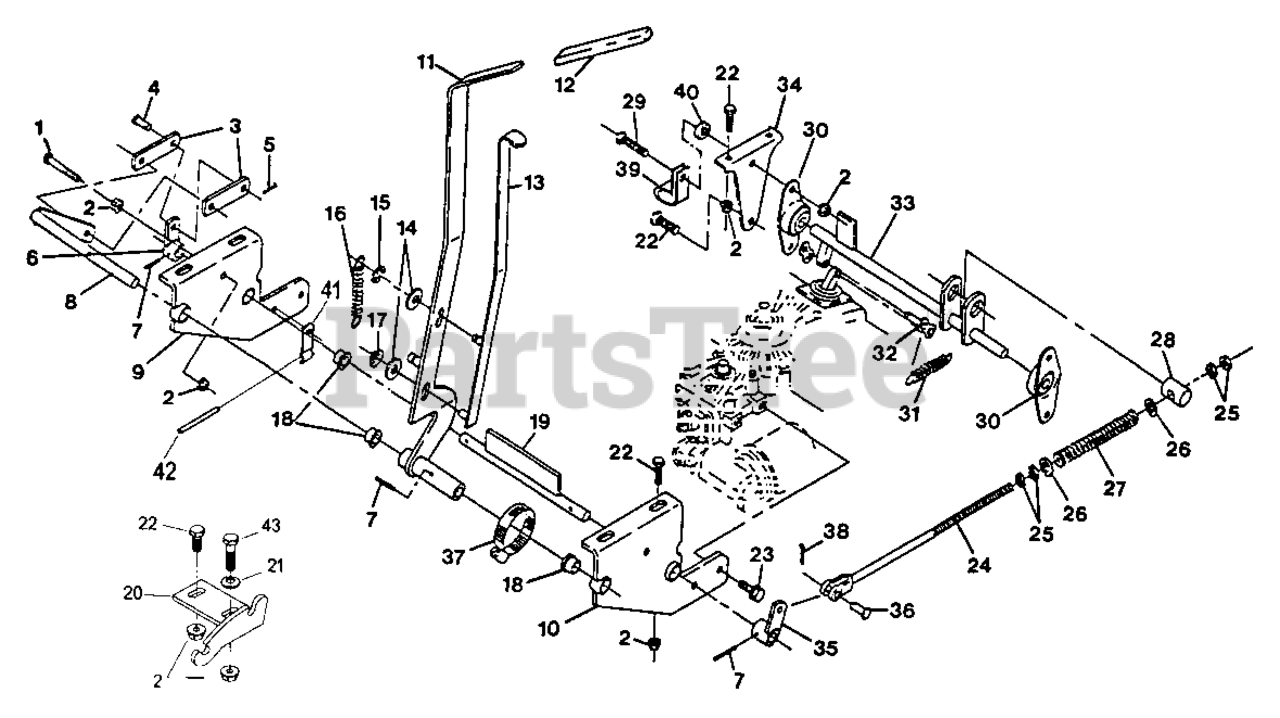

TR23KC - Exmark Turf Ranger Front Mount Mower, 23hp Kohler (SN: 440000 - 509999) (2004) Parking Brake Parts Diagram

Turf Ranger Front Mount Mower, 23hp Kohler

Parking Brake Parts Diagram

  • Title

1

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

2

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Exmark 1-543115

LINK,BRAKE PLTD

$

$

Not available

4

Exmark 1-808278

PIN-CLEVIS

$

$

Not available

5

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

6

Exmark 1-542123-01

WLD,CONTROL ARM

$

$

Not available

7

Exmark 1-806328

DISCONTINUED

$0.99

$

In Stock, only 1 left!

0

8

Exmark 1-542190

PIVOT - BRKT/LEVER

$

$

Not available

9

Exmark 1-552058-01

DISCONTINUED

$

$

Not available

10

Exmark 1-552059-01

WLD,TRANSAXLE SUPPORT RH

$

$

Not available

11

Exmark 103-3437

LEVER,PARK BRK W/DECAL

$

$

Not available

12

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

13

Exmark 1-542719-01

DISCONTINUED

$

$

Not available

14

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Exmark 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 6

0

16

Exmark 1-513468

SPRING,BRAKE HANDLE

$

$

Not available

17

Exmark 1-543798

NUT,PUSH

$

$

Not available

18

Exmark 1-513140

BEARING-CONTROL

$6.49

$

In Stock, Qty 8

0

19

Exmark 1-542125-01

WLD,BUTTERFLY

$

$

Not available

20

Exmark 1-542900-01

WLD,BRAKE QUADRANT

$

$

Not available

21

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

22

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

23

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

Note: Not Illustrated; Use On Bolt Threads

$18.99

$

Usually ships in 3-6 days

0

24

Exmark 1-543721

LINKAGE,BRAKE

$

$

Not available

25

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

26

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

27

Exmark 1-543132

SPRING,COMPRESSION

$

$

Not available

28

Exmark 1-543129

PIN,TRUNION

$

$

Not available

29

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-543514

FLANGE MTG, SIDE

$35.99

$

Usually ships in 3-6 days

0

31

Exmark 1-543543

SPRING

$

$

Not available

32

Exmark 1-543745

LINK,CONNECTING

$11.99

$

Usually ships in 3-6 days

0

33

Exmark 1-542748-01

WLD,BRAKE JACKSHAFT

$

$

Not available

34

Exmark 1-543138

DISCONTINUED (EXMARK)

$

$

Not available

35

Exmark 1-542121-01

WLD,BRAKE CONTROL ARM

$

$

Not available

36

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

37

Exmark 1-543892

CLAMP-HOSE

$7.49

$

Usually ships in 3-6 days

0

38

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

39

Exmark 1-213148

DISCONTINUED

$

$

Not available

40

Exmark 1-543007

SPACER,CLUTCH ANCHOR

$8.49

$

In Stock, only 2 left!

0

41

Exmark 1-553056

SPRING,DUMP VALVE

$

$

Not available

42

Exmark 1-806339

ROLLPIN PLTD

$

$

Not available

43

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0
