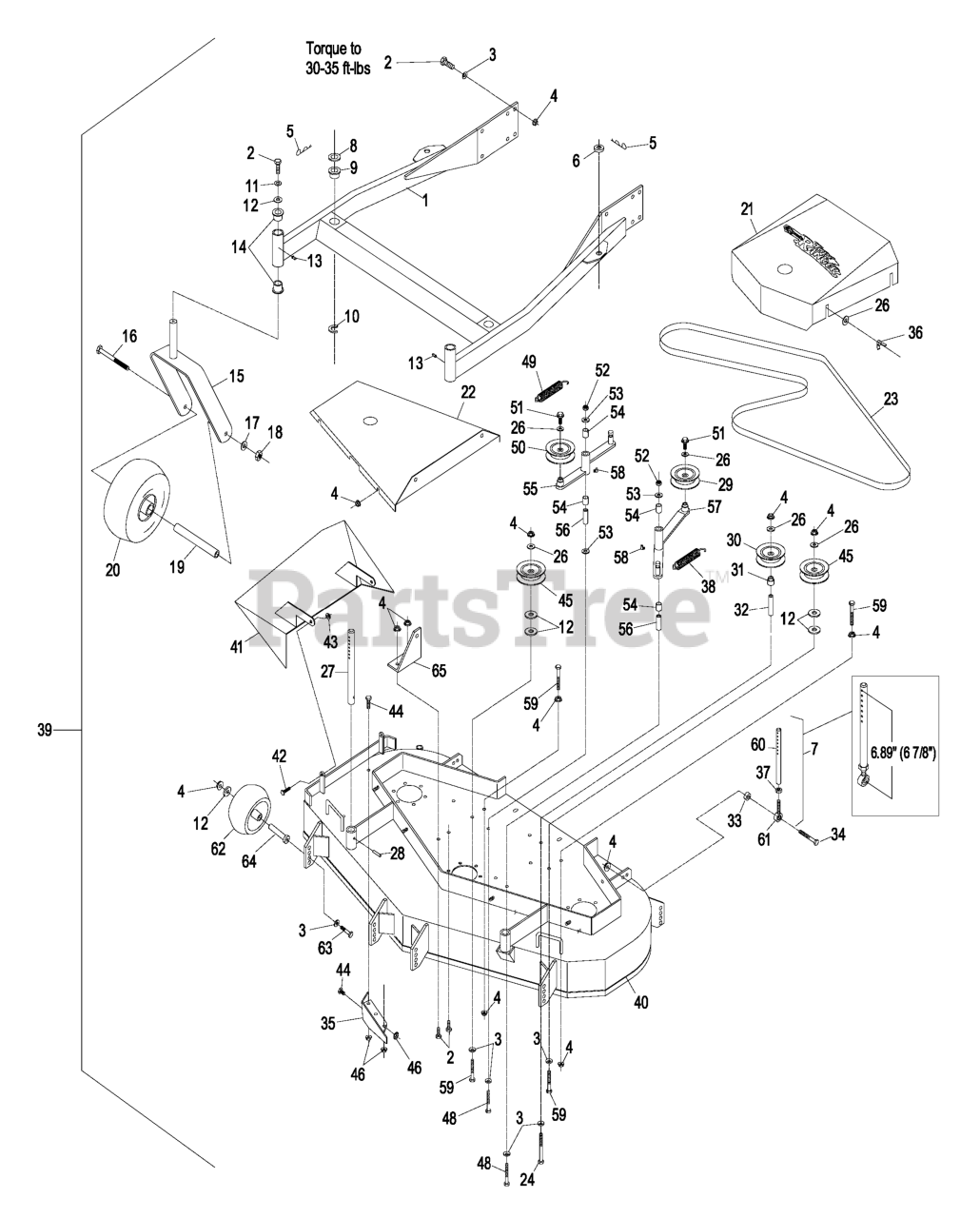

Exmark TR23KC - Exmark Turf Ranger Front Mount Mower, 23hp Kohler (SN: 370000 - 439999) (2003) 52" Mower Deck FMD523 Parts Lookup with Diagrams

1

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

2

Unknown

$

Not available 

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

4

Note: Link assembly nominal length is 6.89" (or approx. 6 7/8") between center of ball joint & center of furthest hole. See diagram on previous page. Initially adjust both links to this dimension, then adjust to where both links are equally supporting rear of m

$154.99

$

In Stock, only 3 left!

8

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 20+

9

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 20+

10

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, Qty 20+

11

Exmark 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

12

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

13

Exmark 302-52

FITTING-GREASE

$6.99

$

In Stock, Qty 20+

14

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 20+

15

Exmark 1-522143-01

116-7941-01

(Superseded to 116-7941-01) 

$95.99

$

In Stock, Qty 20+

16

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

17

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

18

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

19

Exmark 1-513547

SPACER

Note: FMD523 & FMD603 decks with S/N 274,506 & above have semi-pneumatic caster tires. FMD523 & FMD603 decks with S/N 274,505 & below have pneumatic caster tires

$12.99

$

In Stock, Qty 20+

Exmark 103-2169

SPACER FRONT CASTER

Note: Front caster spacer for semi-pneumatic caster tires can be identified by yellow zinc plating. FMD523 & FMD603 decks with S/N 274,506 & above have semi-pneumatic caster tires. FMD523 & FMD603 decks with S/N 274,505 & below have pneumatic caster tires

$14.99

$

In Stock, Qty 11

20

Exmark 103-1224

103-2171

(Superseded to 103-2171) 

Note: FMD523 & FMD603 decks with S/N 274,506 & above have semi-pneumatic caster tires. FMD523 & FMD603 decks with S/N 274,505 & below have pneumatic caster tires

$129.99

$

In Stock, only 4 left!

Exmark 1-513648

103-2171

(Superseded to 103-2171) 

Note: FMD523 & FMD603 decks with S/N 274,506 & above have semi-pneumatic caster tires. FMD523 & FMD603 decks with S/N 274,505 & below have pneumatic caster tires

$129.99

$

In Stock, only 4 left!

Exmark 1-513809

BEARING

$35.99

$

In Stock, Qty 20+

Exmark 1-513810

BUSHING

Note: FMD523 & FMD603 decks with S/N 274,506 & above have semi-pneumatic caster tires. FMD523 & FMD603 decks with S/N 274,505 & below have pneumatic caster tires

$5.99

$

In Stock, Qty 20+

Exmark 103-2170

BUSHING, SP CASTER

Note: Bushing for semi-pneumatic caster tires can be identified by a groove on the face. FMD523 & FMD603 decks with S/N 274,506 & above have semi-pneumatic caster tires. FMD523 & FMD603 decks with S/N 274,505 & below have pneumatic caster tires

$9.49

$

In Stock, Qty 6

Exmark 1-513807

103-2171

(Superseded to 103-2171) 

Note: FMD523 & FMD603 decks with S/N 274,506 & above have semi-pneumatic caster tires. FMD523 & FMD603 decks with S/N 274,505 & below have pneumatic caster tires

$129.99

$

In Stock, only 4 left!

Exmark 1-513808

TIRE

Note: FMD523 & FMD603 decks with S/N 274,506 & above have semi-pneumatic caster tires. FMD523 & FMD603 decks with S/N 274,505 & below have pneumatic caster tires

$43.99

$

In Stock, only 4 left!

21

Exmark 1-544835

COVER W/DECAL TR/FMD523

$

Not available 

22

Exmark 1-602545-01

DISCONTINUED

$

Not available 

23

Exmark 1-603576

BELT,BLADE DRIVE

(Superseded to 1-603576-SL) 

$74.99

$

In Stock, only 3 left!

24

Exmark 323-23

SCREW-HH

Note: Provided in Turf Ranger bolt bag.

$5.49

$

In Stock, Qty 20+

25

Exmark 103-1305

Asm,Complete Deck

$

Currently unavailable 

26

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

27

Exmark 1-603001

ROD,DECK SUPPORT

$50.99

$

In Stock, only 3 left!

28

Exmark 1-806332

32121-15

(Superseded to 32121-15) 

$1.99

$

In Stock, Qty 20+

29

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

30

Exmark 1-603805

PULLEY-IDLER

Note: Provided in Turf Ranger bolt bag.

$54.99

$

In Stock, Qty 11

31

Exmark 1-513791

BUSHING,IDLER

Note: Provided in Turf Ranger bolt bag.

$5.49

$

Usually ships in 3-6 days

32

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

Note: Provided in Turf Ranger bolt bag.

$11.99

$

In Stock, only 2 left!

33

Exmark 1-603050

SPACER

$7.49

$

In Stock, only 2 left!

34

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

35

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$51.99

$

In Stock, only 4 left!

36

Exmark 1-543678

NUT-WING

$12.99

$

In Stock, Qty 5

37

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

38

Exmark 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, Qty 9

39

Exmark 103-1305

Asm,Complete Deck

Note: Complete Deck Assembly includes Mower Deck Cutter Housing Assemblies & Blades. See "60" Mower Deck".

$

Currently unavailable 

40

Exmark 1-612155

DISCONTINUED (EXMARK)

$

Not available 

41

Exmark 1-602571-01

WLD,CHUTE DISCHARGE

$201.99

$

Usually ships in 3-6 days

42

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

43

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

44

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

45

Exmark 1-303516

IDLER,PULLEY

$59.99

$

In Stock, Qty 8

46

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

47

Exmark 103-2171

KIT, SP CASTER WHEEL REPL

Note: Kit 103-2171 used to install semi-pneumatic casters on machines originally fitted with pneumatic casters. Includes 103-1224 & 103-2169. Order 2 per machine.

$129.99

$

In Stock, only 4 left!
