TR23KC - Exmark Turf Ranger Front Mount Mower, 23hp Kohler (SN: 260000 - 319999) (2001) Seat Assy And Lift Actuator Parts Diagram

Turf Ranger Front Mount Mower, 23hp Kohler

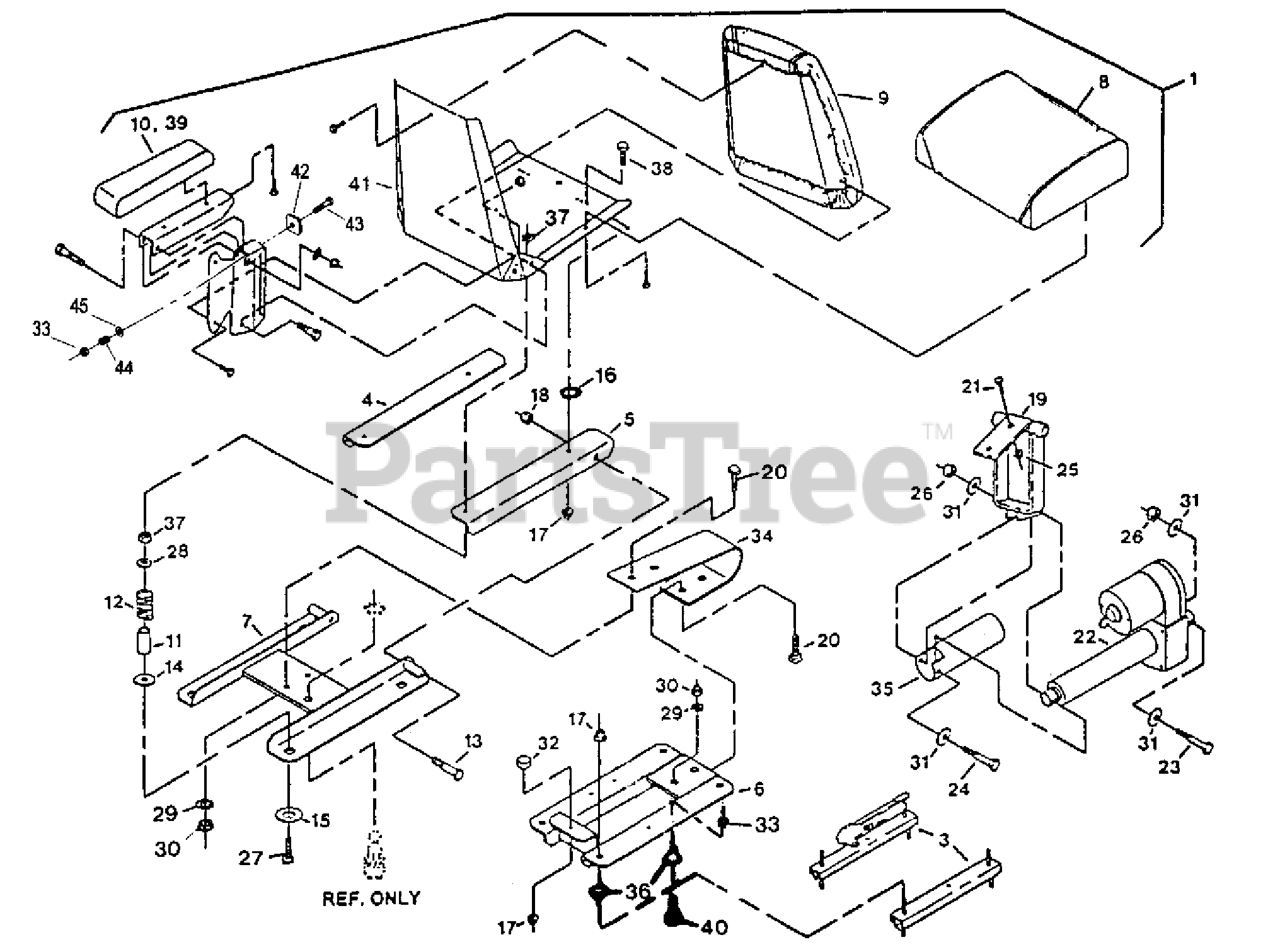

Seat Assy And Lift Actuator Parts Diagram

  • Title

1

Exmark 103-0288

103-3524
(Superseded to 103-3524)

$679.99

$

In Stock, only 1 left!

0

2

Exmark 1-543406

DISCONTINUED
(Superseded to 103-1285)

$

$

Not available

3

Exmark 1-543357

DISCONTINUED

$

$

Not available

4

Exmark 1-543319-03

RAIL,SEAT LH

$

$

Not available

5

Exmark 1-543321-03

RAIL,SEAT RH

$

$

Not available

6

Exmark 1-542307

1-542307-03
(Superseded to 1-542307-03)

$186.99

$

Usually ships in 3-6 days

0

7

Exmark 1-542315-03

DISCONTINUED

$

$

Not available

8

Exmark 103-0290

103-3521
(Superseded to 103-3521)

$259.99

$

In Stock, Qty 5

0

9

Exmark 103-0289

103-3520
(Superseded to 103-3520)

$232.99

$

In Stock, only 2 left!

0

10

Exmark 103-0292

CUSHION,ARMREST RH

$97.99

$

In Stock, only 2 left!

0

11

Exmark 1-513479

BUSHING,SPRING GUIDE

$16.99

$

Usually ships in 3-6 days

0

12

Exmark 1-513296

SPRING-INDICATOR, REVERSE

$7.99

$

Usually ships in 3-6 days

0

13

Exmark 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

14

Exmark 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

15

Exmark 1-213069

WASHER

$2.99

$

In Stock, only 2 left!

0

16

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 1-542283

1-542283-01
(Superseded to 1-542283-01)

$

$

Not available

20

Exmark 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

21

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

22

Exmark 1-543241

DISCONTINUED

$

$

Not available

23

Exmark 3212-9

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

24

Exmark 3212-12

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

25

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

26

Exmark 3296-7

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0

27

Exmark 1-800015

BOLT,TAP HH

$

$

Not available

28

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

30

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

31

Exmark 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

32

Exmark 1-543963

BUMPER-RUBBER

$23.99

$

In Stock, only 2 left!

0

33

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Exmark 1-543356

1-543356-03
(Superseded to 1-543356-03)

$

$

Not available

35

Exmark 1-543834

GUARD,ACTUATOR

$

$

Not available

36

Exmark 1-543401

SPACER-TRACK

$5.49

$

In Stock, Qty 8

0

37

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

38

Exmark 323-3

323-34
(Superseded to 323-34)

$6.49

$

In Stock, only 2 left!

0

39

Exmark 103-0291

CUSHION,ARMREST LH

$97.99

$

In Stock, only 4 left!

0

40

Exmark 32122-14

SCREW-PPH

$2.49

$

In Stock, Qty 16

0

41

Exmark 1-633859

FRAME-SEAT

$191.99

$

In Stock, only 3 left!

0

42

Exmark 103-0284

TAB,ARMREST ADJUSTMENT

$

$

Not available

43

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

44

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

45

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16
