TR23KC - Exmark Turf Ranger Front Mount Mower, 23hp Kohler (SN: 260000 - 319999) (2001) 60" Mower Deck Parts Diagram

Turf Ranger Front Mount Mower, 23hp Kohler

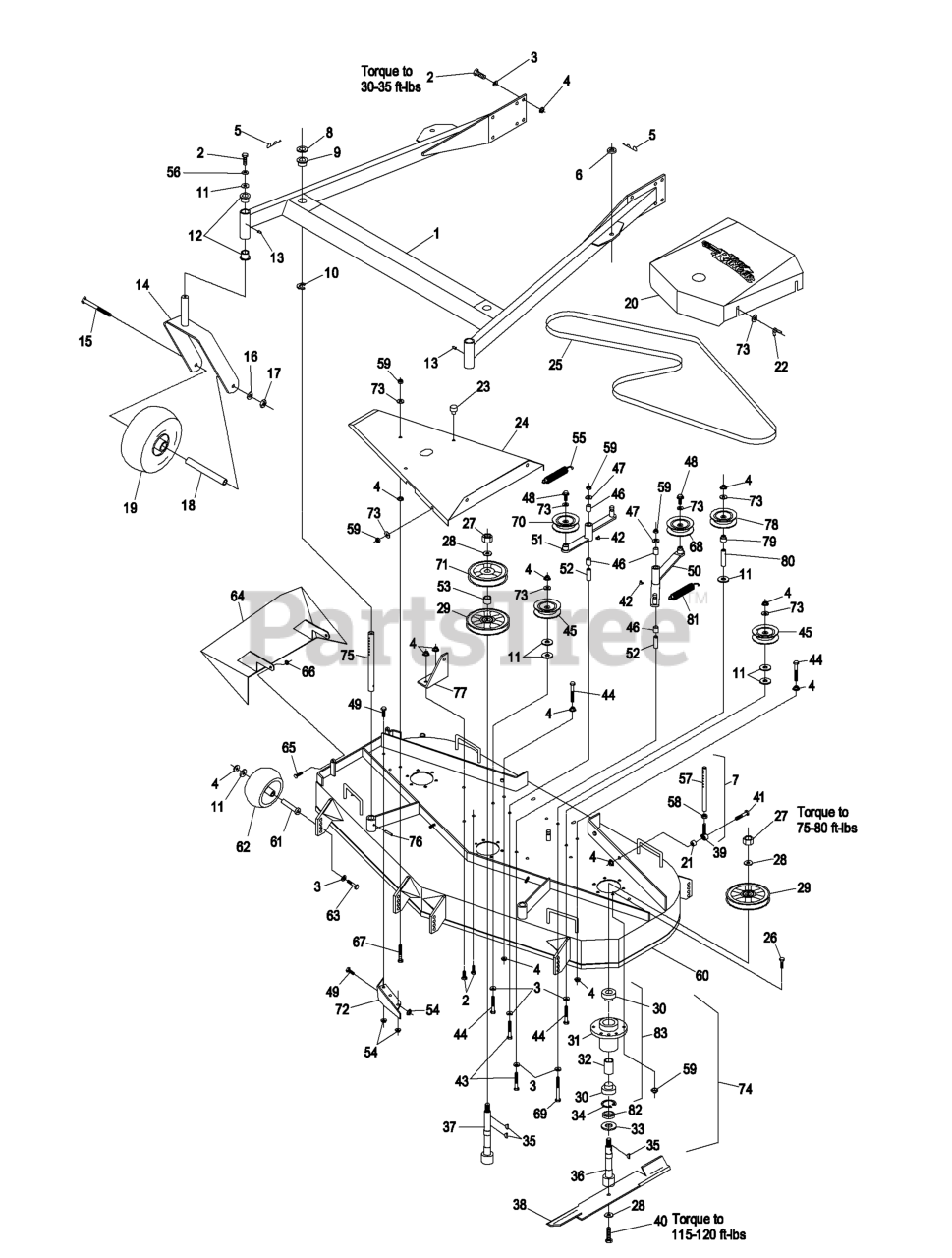

60" Mower Deck Parts Diagram

  • Title

1

Exmark 1-604847

SUPPORT ASSY-FMD60

$

$

Not available

2

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

3

Exmark 98-5975

WASHER-BELLEVILLE

Note: These parts are available in an Idler Pulley Kit (Part No. 1-601806). Each kit contains one item each of reference number 3, 4, 11, 69, 73, 78 - 80.

$3.49

$

In Stock, Qty 20+

0

4

Exmark 3290-357

NUT-HHF, WHIZ

Note: These parts are available in an Idler Pulley Kit (Part No. 1-601806). Each kit contains one item each of reference number 3, 4, 11, 69, 73, 78 - 80.

$0.99

$

In Stock, Qty 20+

0

5

Exmark 806009

Hairpin, .177

$

$

Currently unavailable

6

Exmark 1-323537

1-323539
(Superseded to 1-323539)

$2.49

$

In Stock, Qty 20+

0

7

Exmark 1-614213

1-411532
(Superseded to 1-411532)

$147.99

$

In Stock, Qty 5

0

8

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 14

0

9

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 7

0

10

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

0

11

Exmark 1-373034

WASHER

Note: These parts are available in an Idler Pulley Kit (Part No. 1-601806). Each kit contains one item each of reference number 3, 4, 11, 69, 73, 78 - 80.

$3.49

$

In Stock, Qty 20+

0

12

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 5

0

13

Exmark 302-52

FITTING-GREASE

$6.49

$

In Stock, Qty 20+

0

14

Exmark 1-522143-01

116-7941-01
(Superseded to 116-7941-01)

$90.99

$

In Stock, Qty 7

0

15

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

16

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

18

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 6

0

19

Exmark 1-513648

103-2171
(Superseded to 103-2171)

$126.99

$

In Stock, only 4 left!

0

Exmark 1-513807

103-2171
(Superseded to 103-2171)

$126.99

$

In Stock, only 4 left!

0

Exmark 1-513808

TIRE

$43.99

$

In Stock, only 4 left!

0

Exmark 1-513809

BEARING

$35.99

$

In Stock, Qty 8

0

Exmark 1-513810

BUSHING

$5.99

$

In Stock, Qty 17

0

20

Exmark 1-544849

DISCONTINUED

$

$

Not available

21

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 2 left!

0

22

Exmark 1-543678

NUT-WING

$12.99

$

In Stock, Qty 5

0

23

Exmark 1-513291

DISCONTINUED

$

$

Not available

24

Exmark 1-542588-01

WLD,DECK COVER

$210.99

$

Usually ships in 3-6 days

0

25

Exmark 1-603045

BELT-DRIVE, BLADE
(Superseded to 1-603045-SL)

$90.99

$

Usually ships in 3-6 days

0

26

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

28

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

29

Exmark 1-553039

SHEAVE,BLADE DRIVE

Note: Use antisieze on bore of sheave & bearings.

$

$

Not available

30

Exmark 1-513016

BEARING

Note: Use antisieze on bore of sheave & bearings.

$82.99

$

In Stock, Qty 20+

0

31

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 3 left!

0

32

Exmark 1-323528

SPACER-BEARING

$9.49

$

In Stock, Qty 13

0

33

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, Qty 8

0

34

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 16

0

35

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

36

Exmark 103-0958

SHAFT,SPINDLE SHORT

$136.99

$

Usually ships in 3-6 days

0

37

Exmark 103-0954

103-0954-03
(Superseded to 103-0954-03)

$

$

Not available

38

Exmark 1-633483

103-2530-S
(Superseded to 103-2530-S)

$34.99

$

In Stock, Qty 20+

0

Exmark 1-613250

103-1580-S
(Superseded to 103-1580-S)

$36.99

$

In Stock, Qty 14

0

Exmark 1-613111

103-2510-S
(Superseded to 103-2510-S)

$38.99

$

In Stock, Qty 14

0

Exmark 1-613112

Blade, Mulching
(Superseded to 103-0301-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK603.

$34.99

$

In Stock, Qty 20+

0

39

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

0

40

Exmark 103-0862

SCREW-CAP

$5.99

$

In Stock, Qty 18

0

41

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

42

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

43

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

44

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

45

Exmark 1-303516

IDLER,PULLEY

$52.99

$

In Stock, Qty 8

0

46

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

47

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

48

Exmark 3239-11

Bolt, Whizlock 3/8-16 X 1

$

$

Currently unavailable

49

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

50

Exmark 1-602867-03

Arm, Deck Drive Idler

$

$

Currently unavailable

Exmark 1-602865

ASM,IDLER ARM

$137.99

$

In Stock, only 1 left!

0

51

Exmark 1-602591-03

1-602604
(Superseded to 1-602604)

$142.99

$

Usually ships in 3-6 days

0

Exmark 1-602604

ASM,IDLER ARM

$142.99

$

Usually ships in 3-6 days

0

52

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 19

0

53

Exmark 1-603504

SPACER-TUBE

$19.99

$

Usually ships in 3-6 days

0

54

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

55

Exmark 1-603413

SPRING-EXTENSION

$23.99

$

In Stock, only 4 left!

0

56

Exmark 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 19

0

57

Exmark 1-413525

LINK,SUPPORT

$44.99

$

In Stock, only 2 left!

0

58

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

59

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 14

0

60

Exmark 1-612149

DISCONTINUED

Note: Deck weldmt DOES include welded in flow control baffles.

$

$

Not available

61

Exmark 1-603602

BUSHING-ROLLER

$23.99

$

In Stock, only 3 left!

0

62

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 16

0

63

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

64

Exmark 1-542606-01

109-2758-01
(Superseded to 109-2758-01)

$186.99

$

Usually ships in 3-6 days

0

65

Exmark 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

66

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

67

Exmark 1-800031

DISCONTINUED

$

$

Not available

68

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 7

0

69

Exmark 323-16

SCREW-HH

Note: These parts are available in an Idler Pulley Kit (Part No. 1-601806). Each kit contains one item each of reference number 3, 4, 11, 69, 73, 78 - 80.

$3.49

$

In Stock, Qty 7

0

70

Exmark 1-603497

IDLER,PULLEY

$53.99

$

Usually ships in 3-6 days

0

71

Exmark 1-613024

103-2270
(Superseded to 103-2270)

Note: Use antisieze on bore of sheave & bearings.

$70.99

$

Usually ships in 3-6 days

0

72

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

0

73

Exmark 3296-24

NUT-HEX

Note: These parts are available in an Idler Pulley Kit (Part No. 1-601806). Each kit contains one item each of reference number 3, 4, 11, 69, 73, 78 - 80.

$4.99

$

In Stock, Qty 20+

0

74

Exmark 1-554019

CUTTER HOUSING ASM,OUTER

Note: Outer complete cutter housing includes sheave, washer and nut.Center complete cutter housing includes sheaves, washer, spacer and nut.

$

$

Not available

Exmark 1-554018

CUTTERHOUSING ASM,CENTE

Note: Outer complete cutter housing includes sheave, washer and nut.Center complete cutter housing includes sheaves, washer, spacer and nut.

$

$

Not available

75

Exmark 1-603001

ROD,DECK SUPPORT

$45.99

$

In Stock, only 3 left!

0

76

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 7

0

77

Exmark 1-603620-01

BRACKET,SPRING ANCHOR

$26.99

$

Usually ships in 3-6 days

0

78

Exmark 1-603805

PULLEY-IDLER

Note: These parts are available in an Idler Pulley Kit (Part No. 1-601806). Each kit contains one item each of reference number 3, 4, 11, 69, 73, 78 - 80.

$54.99

$

In Stock, Qty 12

0

79

Exmark 1-513791

BUSHING,IDLER

Note: These parts are available in an Idler Pulley Kit (Part No. 1-601806). Each kit contains one item each of reference number 3, 4, 11, 69, 73, 78 - 80.

$5.49

$

In Stock, only 1 left!

0

80

Exmark 1-603494

SPACER-FENDER

Note: These parts are available in an Idler Pulley Kit (Part No. 1-601806). Each kit contains one item each of reference number 3, 4, 11, 69, 73, 78 - 80.

$

$

Not available

81

Exmark 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, only 2 left!

0

82

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 11

0

83

Exmark 1-634619

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 3 left!

0

Exmark 1-601806

KIT - IDLER PULLEY

$110.99

$

Usually ships in 3-6 days

0

Exmark MK603

Mulch Kit

$

$

Currently unavailable

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0
