TR18KO - Exmark Turf Ranger Front Mount Mower, 18hp Kohler (SN: 080000 - 089999) (1993) Parking Brake Parts Diagram

Turf Ranger Front Mount Mower, 18hp Kohler

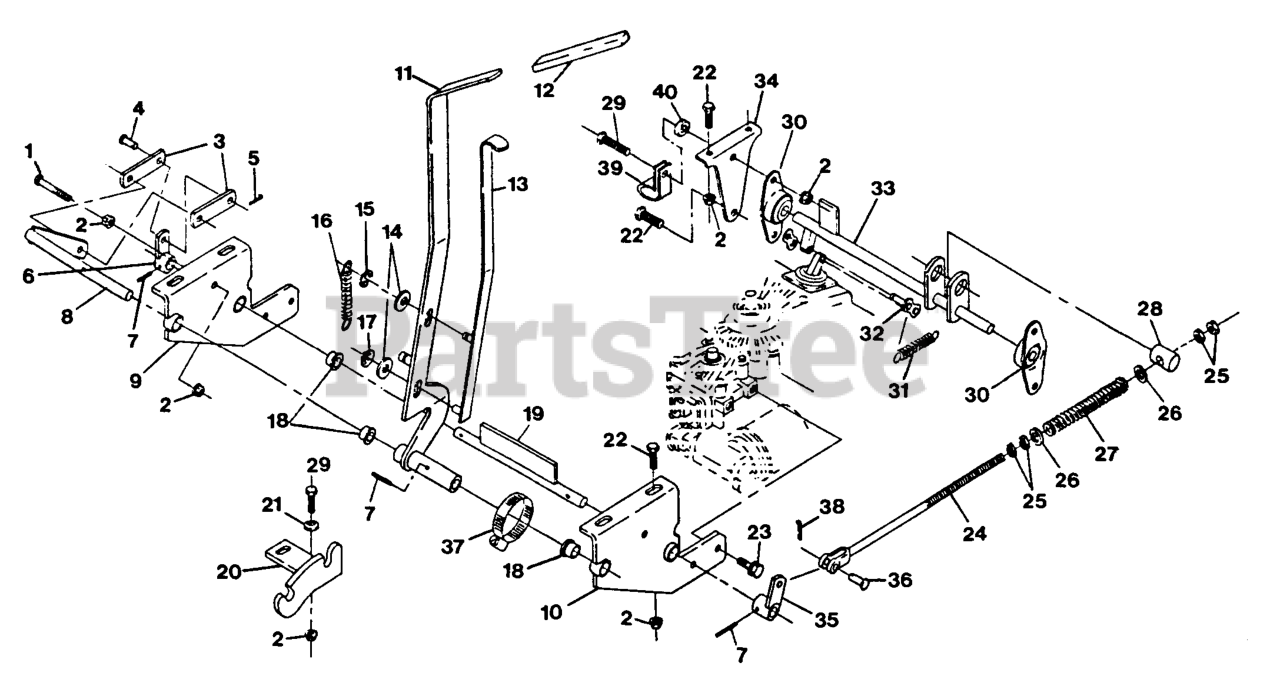

Parking Brake Parts Diagram

  • Title
1

Exmark 1-800278

322-11
(Superseded to 322-11)

$

$

Not available

2

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

3

Exmark 1-543115

LINK,BRAKE PLTD

$

$

Not available

4

Exmark 1-808278

PIN-CLEVIS

$1.99

$

Usually ships in 3-6 days

0

5

Exmark 1-806761

3272-10
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

6

Exmark 1-542123-01

WLD,CONTROL ARM

$

$

Not available

7

Exmark 1-806328

DISCONTINUED

$0.99

$

In Stock, only 1 left!

0

8

Exmark 1-542190

PIVOT - BRKT/LEVER

$

$

Not available

9

Exmark 1-542924-01

1-552058-01
(Superseded to 1-552058-01)

$

$

Not available

10

Exmark 1-542926

1-552059-01
(Superseded to 1-552059-01)

$

$

Not available

11

Exmark 1-542192-01

103-3437
(Superseded to 103-3437)

$

$

Not available

12

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

13

Exmark 1-542719-01

DISCONTINUED

$

$

Not available

14

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

15

Exmark 1-808512

32120-35
(Superseded to 32120-35)

$4.49

$

In Stock, Qty 6

0

16

Exmark 1-513468

SPRING,BRAKE HANDLE

$

$

Not available

17

Exmark 1-543798

NUT,PUSH

$

$

Not available

18

Exmark 1-513140

BEARING-CONTROL

$6.49

$

In Stock, Qty 8

0

19

Exmark 1-542125-01

WLD,BUTTERFLY

$

$

Not available

20

Exmark 1-542900-01

WLD,BRAKE QUADRANT

$

$

Not available

21

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

22

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

23

Exmark 1-803032

3234-5
(Superseded to 3234-5)

$1.49

$

In Stock, Qty 16

0

24

Exmark 1-543721

LINKAGE,BRAKE

$

$

Not available

25

Exmark 1-804760

3220-3
(Superseded to 3220-3)

$0.99

$

In Stock, Qty 17

0

26

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

27

Exmark 1-543132

SPRING,COMPRESSION

$

$

Not available

28

Exmark 1-543129

PIN,TRUNION

$

$

Not available

29

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-543514

FLANGE MTG, SIDE

$35.99

$

Usually ships in 3-6 days

0

31

$

$

Not available

32

Exmark 1-543745

LINK,CONNECTING

$11.99

$

Usually ships in 3-6 days

0

33

Exmark 1-542748

Jackshaft Wldmt - Brk

$

$

Currently unavailable

34

Exmark 1-543138

DISCONTINUED (EXMARK)

$

$

Not available

35

Exmark 1-542121-01

WLD,BRAKE CONTROL ARM

$

$

Not available

36

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 3 left!

0

37

Exmark 1-543892

CLAMP-HOSE

$6.99

$

Usually ships in 3-6 days

0

38

Exmark 1-806753

3272-5
(Superseded to 3272-5)

$1.49

$

In Stock, Qty 5

0

39

Exmark 1-213148

DISCONTINUED

$

$

Not available

40

Exmark 1-543007

SPACER,CLUTCH ANCHOR

$8.49

$

In Stock, only 2 left!

0
