TR 530 (960910033-00) - Husqvarna Rear-Tine Tiller (2017-11) TINE SHIELD Parts Diagram

Rear-Tine Tiller

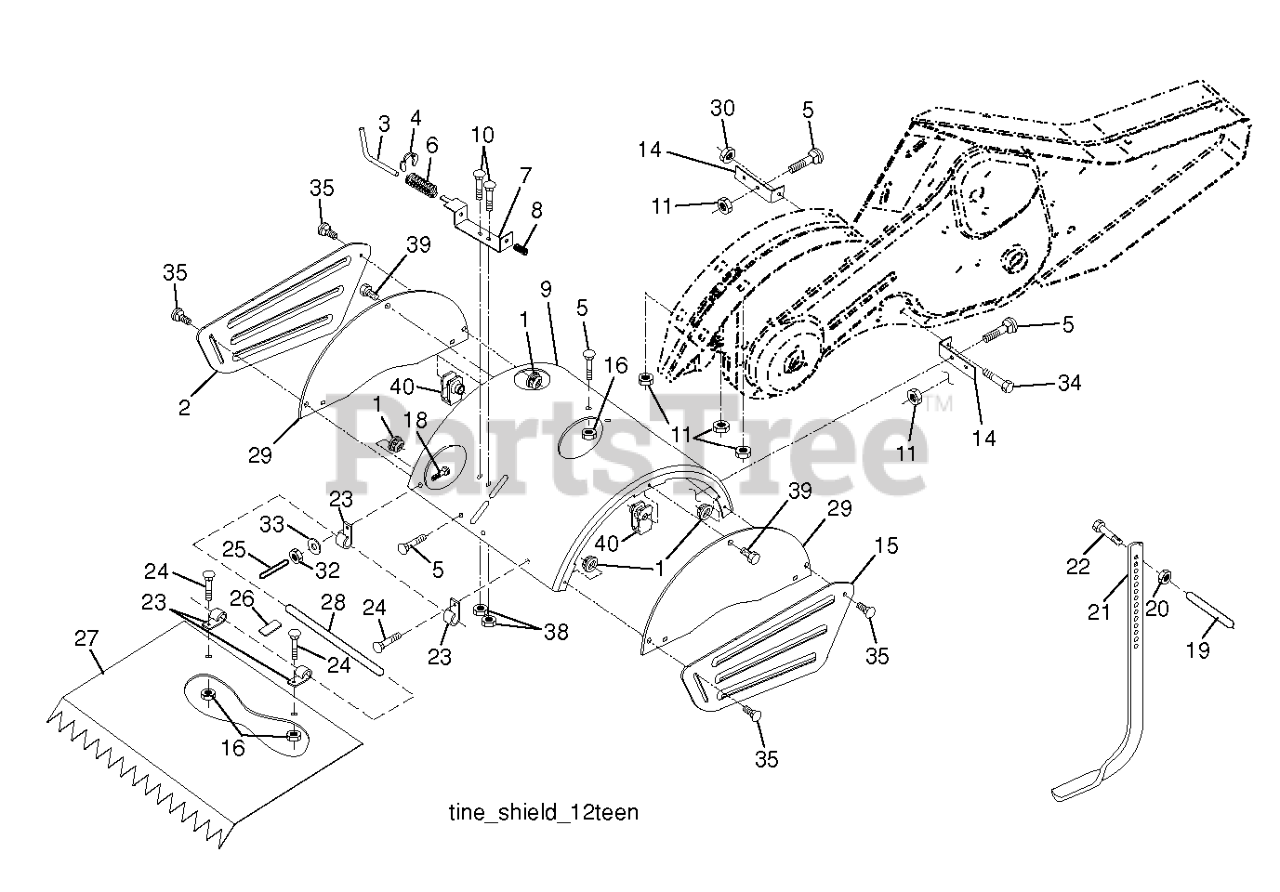

TINE SHIELD Parts Diagram

  • Title
9

Husqvarna 532442961

SHIELD.TINE.TILLER.ORANGE

$91.99

$

Usually ships in 3-10 days

0

22

Husqvarna 874930632

BOLT.375-16

$6.99

$

In Stock, only 2 left!

0

29

Husqvarna 581850902

SHIELD.SIDE.66

$

$

Not available

34

Husqvarna 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 872110505

BOLT.CARR.5/16-18X5/8.SHORT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532138609

PIN, HINGE

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532181156

NUT.SPEED.5/16-18

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

2

Husqvarna 532442966

SHIELD.SIDE.OUTER.LH.ORANGE

$24.99

$

Usually ships in 3-10 days

0

4

Husqvarna 812000035

RING, KLIP

$7.49

$

In Stock, Qty 10

0

19

$

$

Not available

15

Husqvarna 532442965

SHIELD.SIDE.OUTER.RH.ORANGE

$24.99

$

Usually ships in 3-10 days

0

20

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 2 left!

0

11

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532442990

SHIELD.PNT.LEVELING.ORANGE.668

$54.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 14

0

5

Husqvarna 532180847

BOLT, RDHD SQNK 5/16-18 X 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

33

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

21

Husqvarna 581850701

STAKE.DEPTH.ASM.CRT 19/21.BLAC
(Superseded to 532138420)

$56.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

$6.49

$

Usually ships in 3-10 days

0

6

$9.49

$

In Stock, only 1 left!

0

25

Husqvarna 532124717

VINYL CAP TI
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532008393

STAKE PIN TI

$31.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

23

$6.49

$

In Stock, only 1 left!

0

$2.99

$

Usually ships in 3-10 days

0

7

Husqvarna 581850801

BRACKET
(Superseded to 532008392)

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532109230

SPRING CRT

$6.49

$

In Stock, Qty 11

0

14

Husqvarna 581848801

BRACKET.TINE.SHIELD.BLACK
(Superseded to 584459301)

$37.99

$

Usually ships in 3-10 days

0
