TR 530 (960910017-02) - Husqvarna Rear-Tine Tiller (2011-09) MAINFRAME RIGHT SIDE Parts Diagram

Rear-Tine Tiller

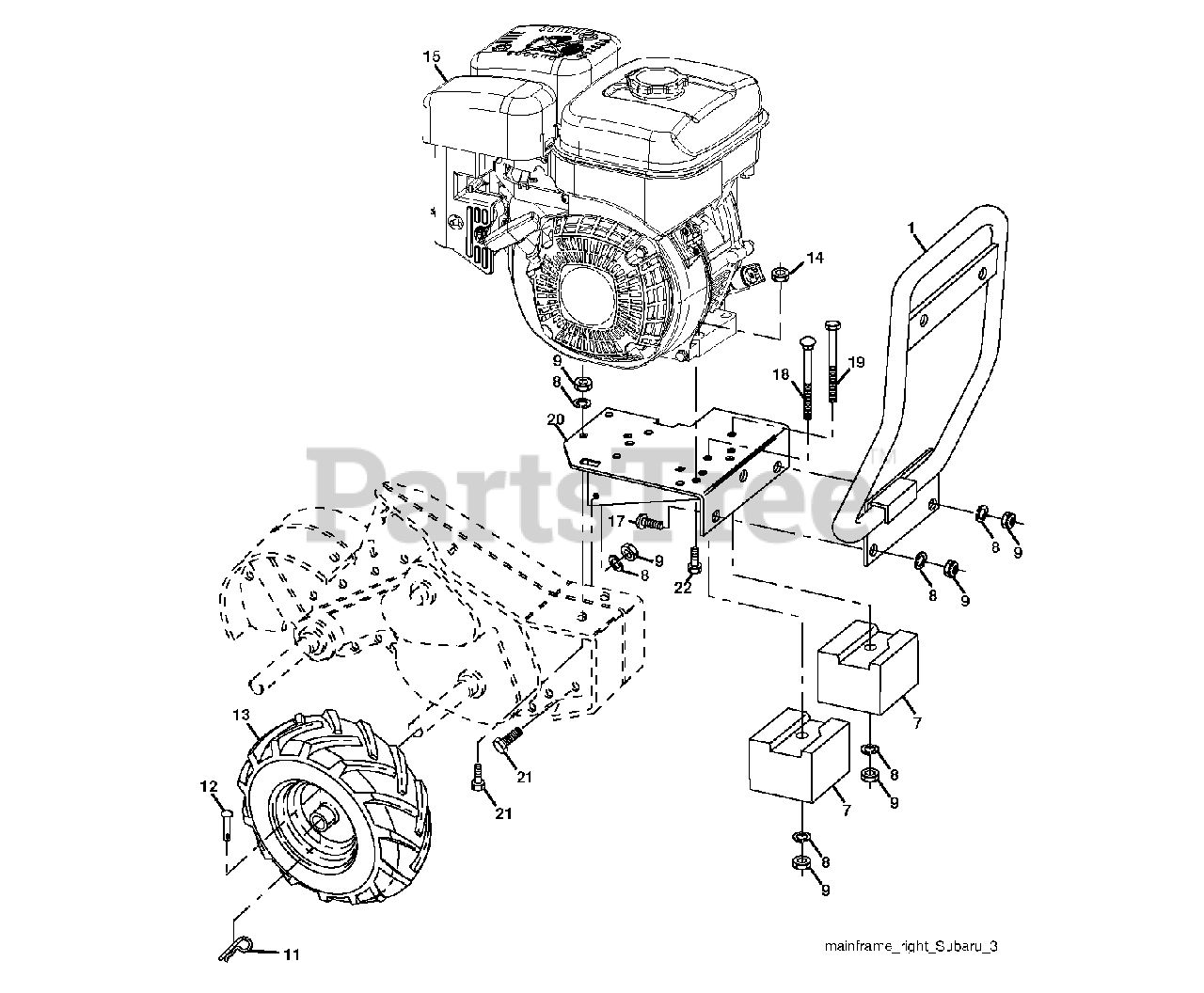

MAINFRAME RIGHT SIDE Parts Diagram

  • Title

1

Husqvarna 532175624

BUMPER.ASM.9HP.TILLER
(Superseded to 584461101)

$

$

Not available

7

Husqvarna 532180275

COUNTERWEIGHT
(Superseded to 583099901)

$109.99

$

Usually ships in 3-10 days

0

8

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 2 left!

0

11

Husqvarna 532124961

SPRING TI
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

12

Husqvarna 532004929

RIVET TI

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532005015

TIRE.16X4-8.CHEVRON.TILLER

$145.99

$

In Stock, only 2 left!

0

--

Husqvarna 532005014

RIM 2.75 X 8.0 X 1"ID.TILLER

$169.99

$

Usually ships in 3-10 days

0

--

Husqvarna 532124718

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

14

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

15

000000000

Note: ENGINE SUBARU MODEL EX210DP0243

$

$

Not available

17

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 872470636

BOLT, CARRIAGE 3/8-16X4-1/2

$14.99

$

Usually ships in 3-10 days

0

19

Husqvarna 874760672

BOLT, HEX 3/8-16X4-1/2

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532432105

Base Engine

$

$

Currently unavailable

21

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 874760524

BOLT
(Superseded to 874780524)

$

$

Not available
