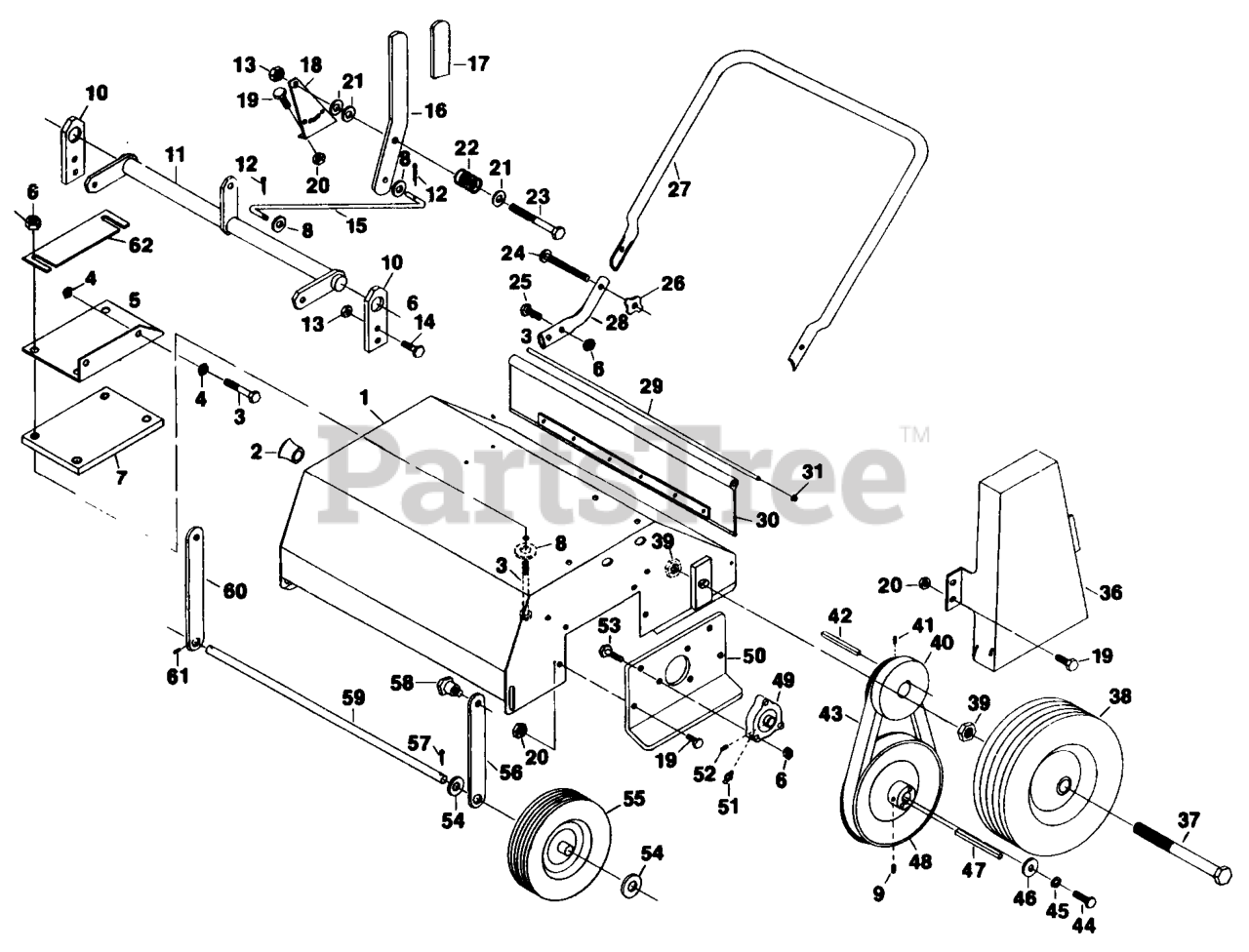

TR-5000 - Exmark Walk-Behind Turf Rake (SN: 030000 - 039999) (1988) Main Deck Parts Diagram

Walk-Behind Turf Rake

Main Deck Parts Diagram

  • Title

1

Exmark 1-502004-01

DISCONTINUED (EXMARK)

$

$

Not available

2

Exmark 1-503080

DISCONTINUED (EXMARK)

$

$

Not available

3

Exmark 1-800277

322-10
(Superseded to 322-10)

$0.99

$

In Stock, Qty 5

0

4

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-503116

DISCONTINUED (EXMARK)

$

$

Not available

6

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

7

Exmark 1-503019

DISCONTINUED (EXMARK)

$

$

Not available

8

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

9

Exmark 1-803310

SCREW-SET

$2.99

$

In Stock, only 1 left!

0

10

Exmark 1-503103

DISCONTINUED

$

$

Not available

11

Exmark 1-502013

DISCONTINUED (EXMARK)

$

$

Not available

12

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

13

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

14

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

15

Exmark 1-503073

DISCONTINUED (EXMARK)

$

$

Not available

16

Exmark 1-503074

DISCONTINUED (EXMARK)

$

$

Not available

17

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

18

Exmark 1-503075

DISCONTINUED

$

$

Not available

19

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

20

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 12

0

21

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

22

Exmark 1-303160

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

23

Exmark 1-800296

323-10
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

24

Exmark 1-807500

DISCONTINUED (EXMARK)

$

$

Not available

25

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

26

Exmark 1-213126

DISCONTINUED (EXMARK)

$

$

Not available

27

Exmark 1-503124-03

DISCONTINUED (EXMARK)

$

$

Not available

28

Exmark 1-503060-03

DISCONTINUED (EXMARK)

$

$

Not available

29

Exmark 1-503102

DISCONTINUED

$

$

Not available

30

Exmark 1-502016

DISCONTINUED (EXMARK)

$

$

Not available

31

Exmark 1-803001

NUT-PUSH

$1.49

$

In Stock, Qty 20+

0

36

Exmark 1-502017-03

DISCONTINUED (EXMARK)

$

$

Not available

37

Exmark 1-800856

DISCONTINUED (EXMARK)

$

$

Not available

38

Exmark 1-503006

ASM,WHEEL & TIRE

$

$

Not available

39

Exmark 1-804756

DISCONTINUED (EXMARK)

$

$

Not available

40

Exmark 1-503015

DISCONTINUED (EXMARK)

$

$

Not available

41

Exmark 1-803304

DISCONTINUED (EXMARK)

$

$

Not available

42

Exmark 1-807265

DISCONTINUED (EXMARK)

$

$

Not available

43

Exmark 1-503016

BELT,RAKE

$

$

Not available

44

Exmark 1-800504

DISCONTINUED

$

$

Not available

45

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

46

Exmark 1-503033

WASHER-RETAINER, PULLEY

$5.49

$

Usually ships in 3-6 days

0

47

Exmark 1-807255

5-1077
(Superseded to 5-1077)

$6.99

$

In Stock, only 3 left!

0

48

Exmark 1-503017

DISCONTINUED

$

$

Not available

49

Exmark 1-503023

DISCONTINUED (EXMARK)

$

$

Not available

50

Exmark 1-503021

DISCONTINUED (EXMARK)

$

$

Not available

51

Exmark 1-811004

DISCONTINUED

$

$

Not available

52

Exmark 1-803300

3245-35
(Superseded to 3245-35)

$0.99

$

In Stock, Qty 10

0

53

Exmark 1-800274

322-6
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

54

Exmark 1-805265

DISCONTINUED

$

$

Not available

55

Exmark 1-503012

ASM,WHEEL & TIRE

$31.99

$

Usually ships in 3-6 days

0

56

Exmark 1-503066

1-503071
(Superseded to 1-503071)

$

$

Not available

57

Exmark 1-806763

3272-12
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 17

0

58

Exmark 1-503109

DISCONTINUED (EXMARK)

$

$

Not available

59

Exmark 1-503107

DISCONTINUED (EXMARK)

$

$

Not available

60

Exmark 1-503071

DISCONTINUED (EXMARK)

$

$

Not available

61

Exmark 1-803282

DISCONTINUED (EXMARK)

$

$

Not available

62

Exmark 1-503121

DISCONTINUED (EXMARK)

Note: (not shown)

$

$

Not available
