TR 430 (960910034-01) - Husqvarna Rear-Tine Tiller (2017-11) MAINFRAME, LEFT SIDE Parts Diagram

Rear-Tine Tiller

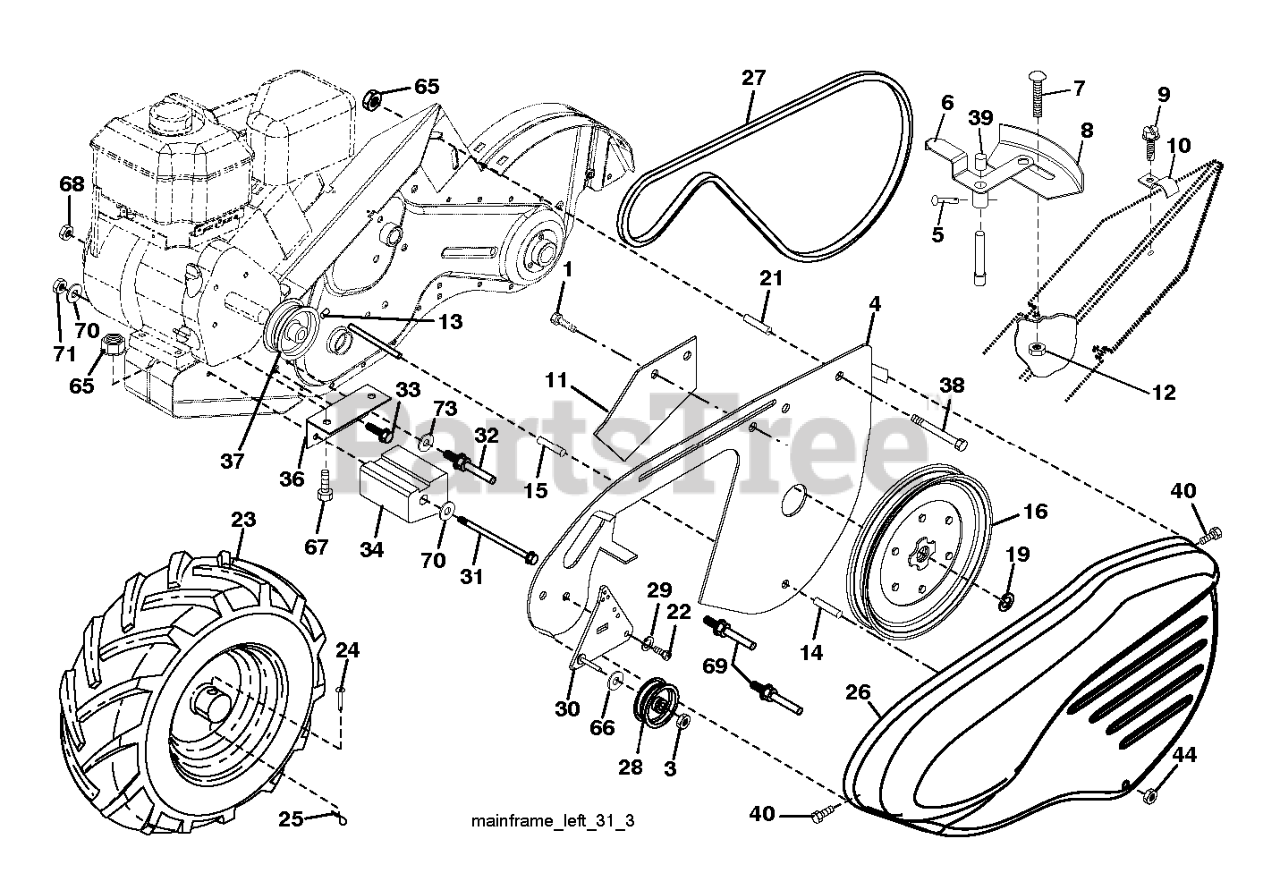

MAINFRAME, LEFT SIDE Parts Diagram

  • Title

40

Husqvarna 532170488

SCREW.HEX.WSH.SLT.#10-24X.50

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

68

Husqvarna 873510600

NUT

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532189241

SCREW.HEX.WASH.HD.TAPPING

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532104679

PULLEY-IDLER TI

$18.99

$

In Stock, only 1 left!

0

22

Husqvarna 874770508

BOLT

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 872110404

BOLT

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 583879201

PANEL.INDICATOR.SHIFT.BLACK.
(Superseded to 532161530)

$

$

Not available

10

Husqvarna 532446045

CLIP.PLATED
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

21

Husqvarna 585830801

SPACER SPLIT .420 X .327

$13.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532140062

CAP.PLUNGER.BLACK

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532156117

SPACER-SPLIT.327 X .42

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532145102

SHEAVE, TRANSMISSION

$68.99

$

In Stock, only 3 left!

0

9

Husqvarna 532086777

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

3

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 581747201

BOLT.FIN.HEX.3/8-16UNC X 11.5

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 581864801

BRACKET.REINFORCEMENT.LH.PNT
(Superseded to 584366901)

$13.99

$

Usually ships in 3-10 days

0

71

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532164173

KEEPER.BELT.ENGINE

$8.99

$

Usually ships in 3-10 days

0

66

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 585831201

SPACER

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 581509902

WHEEL.ASM.DRT.13X5-6.LT.SILVER

$145.99

$

Usually ships in 3-10 days

0

13

Husqvarna 823230506

SET SCREW

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 8

0

30

Husqvarna 584289201

BRACKET.IDLER.ASM.LONG

$

$

Not available

12

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

4

Husqvarna 583877701

SHIELD.INNER.BELT.GUARD.RT.BLA
(Superseded to 532432420)

$79.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532164329

PIN.SPIROL.FLARED

$7.49

$

In Stock, Qty 8

0

24

Husqvarna 532171271

RIVET
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

73

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

70

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 582032001

PULLEY ENGINE 4L 2.50

$22.99

$

Usually ships in 3-10 days

0

65

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 874760544

BOLT
(Superseded to 874780544)

$

$

Not available

32

Husqvarna 532102141

SHIFT ARM CRT

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 587836101

GUARD.RT TILLER.CRT/DRT.CE

$

$

Not available

67

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0

34

Husqvarna 581010601

COUNTERWEIGHT.LH

$102.99

$

Usually ships in 3-10 days

0

33

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532162756

LEVER.ASM.SHIFT.RED

$17.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532132801

V-BELT
(Superseded to 591372401)

$17.99

$

In Stock, only 3 left!

0

29

Husqvarna 812000032

KLIP RING

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532440438

GUARD.BELT.TILLER.ORANGE

$54.99

$

In Stock, only 1 left!

0
