TR 430 (960910032-00) - Husqvarna Rear-Tine Tiller (2017-11) HANDLE Parts Diagram

Rear-Tine Tiller

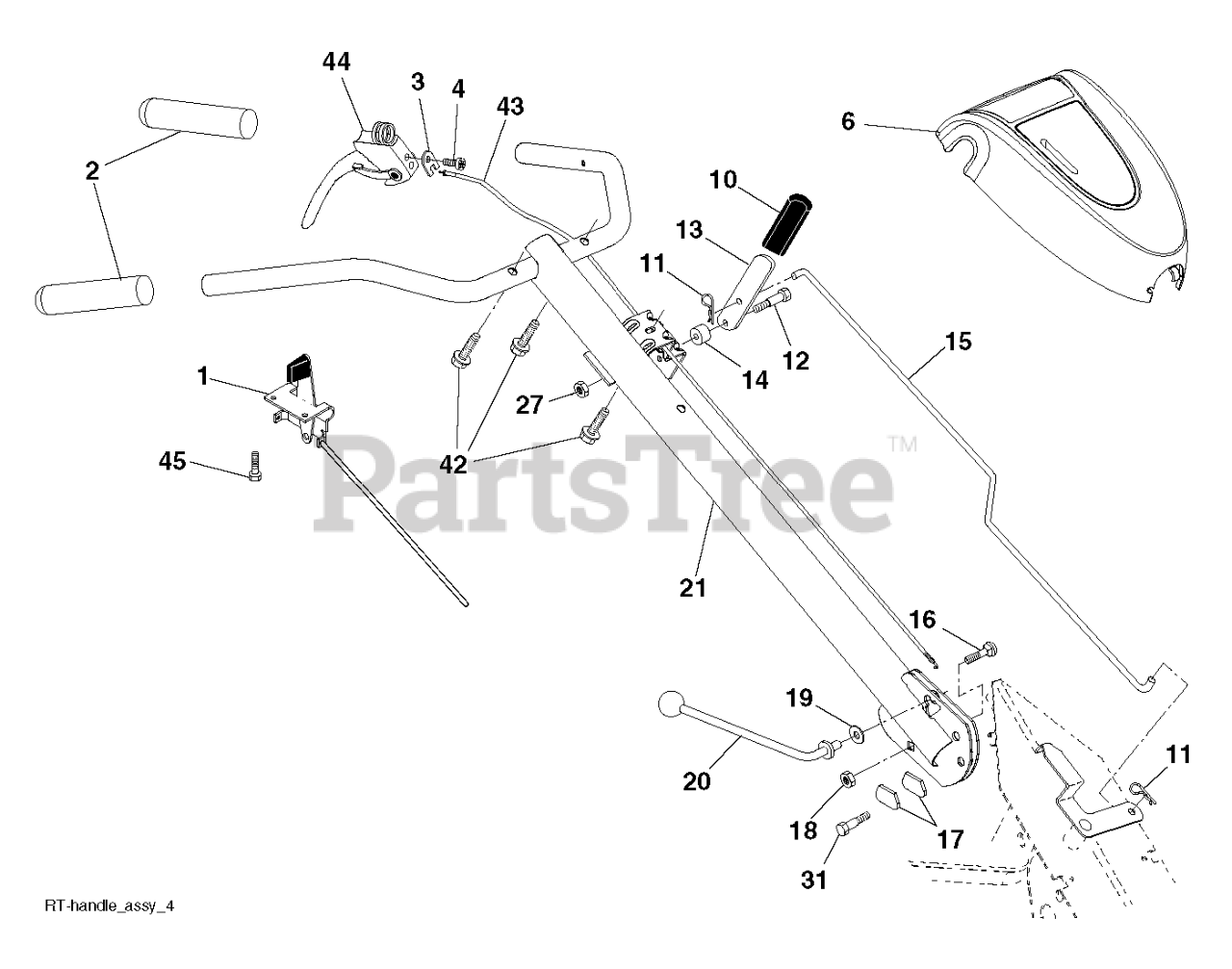

HANDLE Parts Diagram

  • Title

31

Husqvarna 532150696

BOLT.PIVOT

$7.49

$

In Stock, only 3 left!

0

15

Husqvarna 501721301

ROD SHIFT RT UNIVERSAL

$14.99

$

Usually ships in 3-10 days

0

4

Husqvarna 818101008

SCREW.TORX.#10-14X1/2

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532421756

SCREW.#10 X 0.500

$

$

Not available

2

Husqvarna 532427643

GRIP.1X5.06
(Superseded to 532165787)

$6.99

$

In Stock, only 2 left!

0

3

Husqvarna 589284102

CLIP.RETAINER.CABLE.BZP

$3.49

$

Usually ships in 3-10 days

0

43

Husqvarna 588167002

CABLE.HANDLE.TINE.CONTROL.CE

$20.99

$

Usually ships in 3-10 days

0

6

Husqvarna 501857112

CONSOLE HUSQVARNA W/THROTTLE T

$

$

Not available

44

Husqvarna 532438782

CONTROL.HANDLE.TWO.FUNCTION.CE
(Superseded to 583534201)

$26.99

$

Usually ships in 3-10 days

0

Husqvarna 581640202

BAG.OF.PARTS.PLOW.REAR TILLER

Note: NOT SHOWN

$14.99

$

In Stock, only 2 left!

0

12

Husqvarna 532081328

SHOULDER BOLT ST

$6.49

$

In Stock, only 1 left!

0

17

Husqvarna 532109229

LOCK.HANDLE.CRT

$7.49

$

In Stock, only 3 left!

0

20

Husqvarna 532109228

LEVER.LOCK.CRT

$13.99

$

In Stock, only 1 left!

0

21

Husqvarna 532446156

HANDLE.ASM.HUSQ/P.PRO.GREY

$

$

Not available

16

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 532124797

GRIP T
(Superseded to 532008206)

$11.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532109313

GROMMET.RUBBER.CRT.TILLER

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

1

Husqvarna 592928301

CABLE ASSY THROTTLE
(Superseded to 595529901)

$37.99

$

Usually ships in 3-10 days

0

19

Husqvarna 819131611

WASHER CRT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 581960601

HANDLE.SHIFT.TILLER.498

$

$

Not available

42

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

27

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0
