TR 430 (960910018-03) - Husqvarna Rear-Tine Tiller (2013-03) TINE ASSEMBLY Parts Diagram

Rear-Tine Tiller

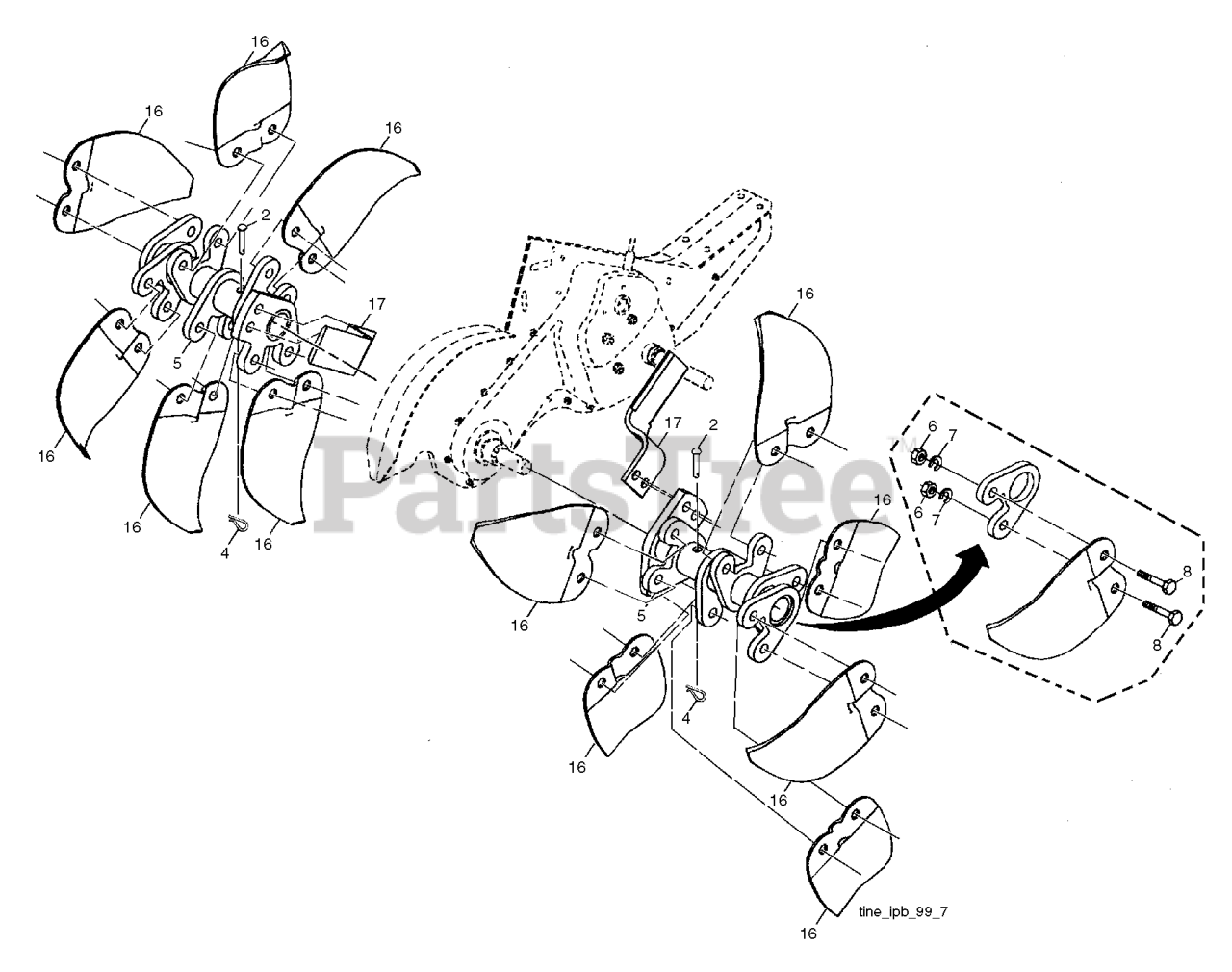

TINE ASSEMBLY Parts Diagram

  • Title
17

Husqvarna 532163500

TINE.CLEANING BLACK

$109.99

$

In Stock, Qty 20+

0

5

Husqvarna 532188845

HUB.ASM.DRT17.2004 (CMPL KIT)

$

$

Not available

2

Husqvarna 532132673

PIN RETAINING SCREW

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

16

Husqvarna 532163499

TINE.SPADE

$

$

Not available

8

Husqvarna 874610616

BOLT.HEX.001X20.37-24X1.ZINC

$7.49

$

In Stock, Qty 20+

0

4

Husqvarna 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 873610600

NUT
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0
