TR 430 (960910016-05) - Husqvarna Rear-Tine Tiller (2014-09) MAINFRAME RIGHT SIDE Parts Diagram

Rear-Tine Tiller

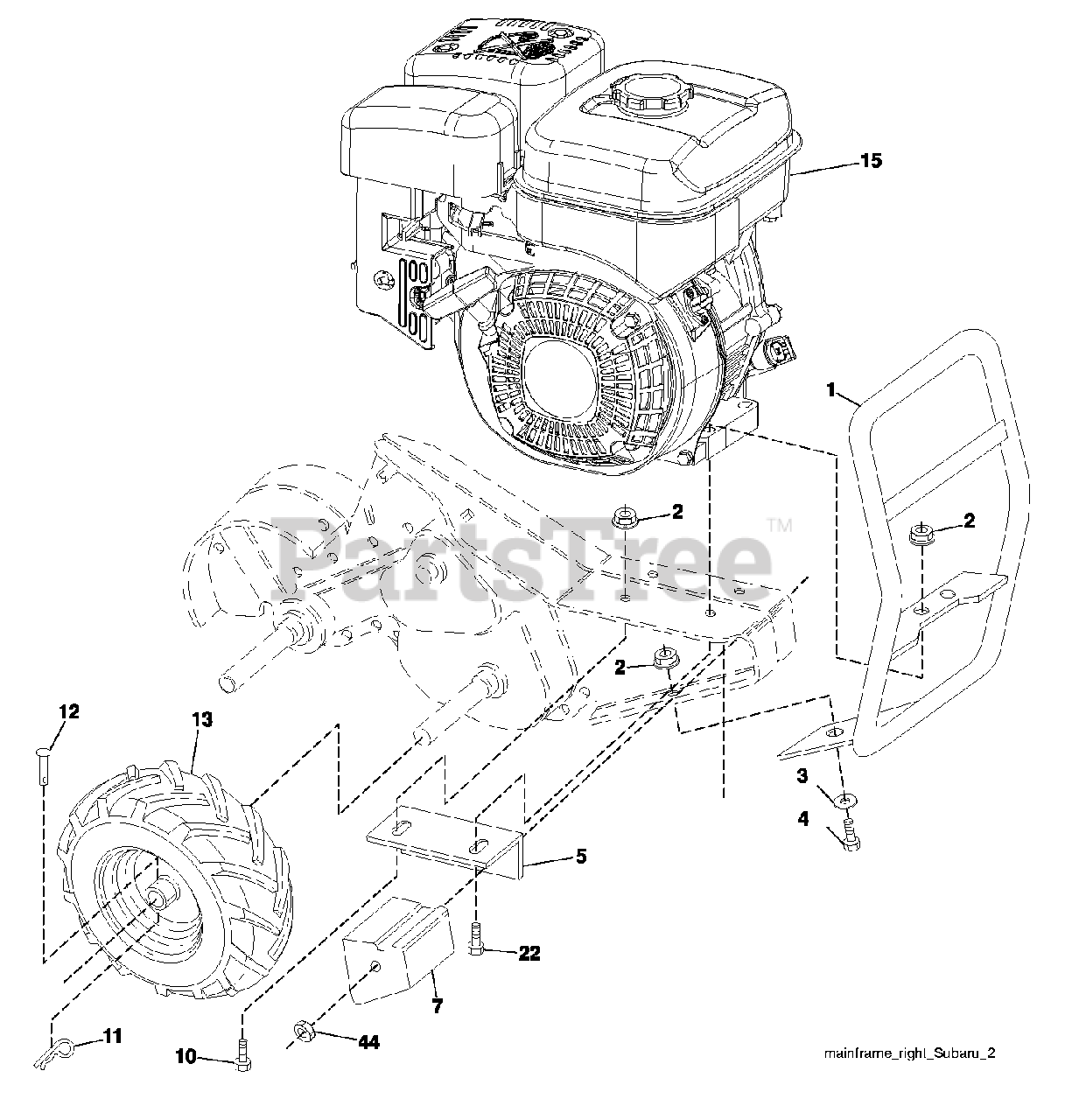

MAINFRAME RIGHT SIDE Parts Diagram

  • Title

1

Husqvarna 583879301

BUMPER.ASM.TILLER.BLACK

$96.99

$

Usually ships in 3-10 days

0

2

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 581864701

BRACKET.REINFORCEMENT.RH.BLACK

$

$

Not available

7

Husqvarna 581010401

COUNTERWEIGHT.RH

$56.99

$

Usually ships in 3-10 days

0

10

Husqvarna 874760524

BOLT
(Superseded to 874780524)

$

$

Not available

11

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Husqvarna 532171271

RIVET
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

13

Husqvarna 581576401

WHEEL 16X4X8.DR TILLER RH.417

$169.99

$

Usually ships in 3-10 days

0

15

000000000

Note: SUBARU EX170DT1071 FOR SERVICE PARTS 1-800-277-6246

$

$

Not available

22

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0

44

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0
