TR 262 - Husqvarna Rear-Tine Tiller (2019-09) WALKING CASE Parts Diagram

Rear-Tine Tiller

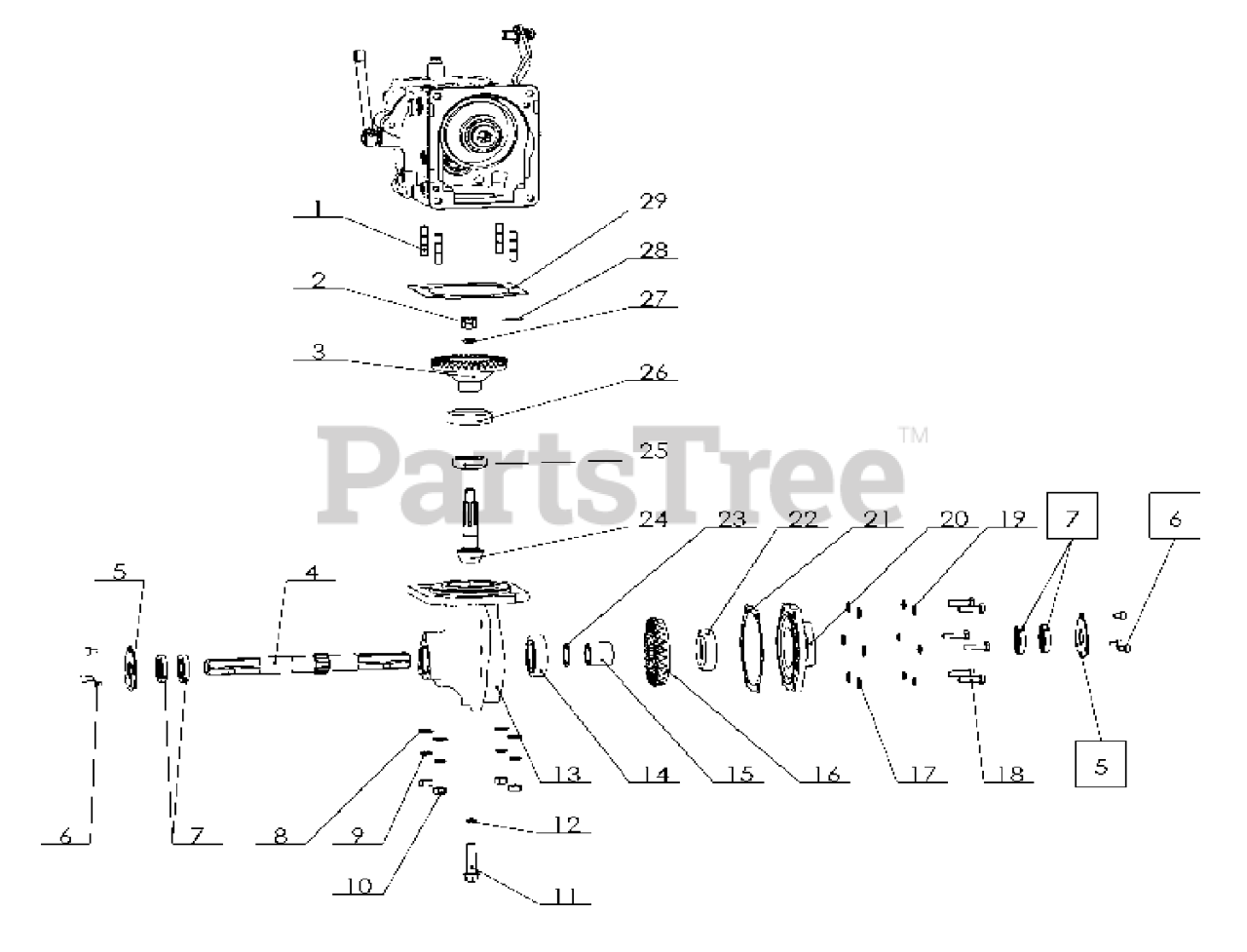

WALKING CASE Parts Diagram

  • Title
11

Husqvarna 598684197

NEEDS DESCRIPTION

Note: Drain bolt M12×1.25-12

$

$

Currently unavailable

24

Husqvarna 598684180

NEEDS DESCRIPTION

Note: Umbrella gear axles

$

$

Currently unavailable

12

Husqvarna 598684326

NEEDS DESCRIPTION

Note: O-ring 10.2×2.65

$

$

Currently unavailable

25

Husqvarna 598684190

NEEDS DESCRIPTION

Note: Tapered roller bearings 30204

$

$

Currently unavailable

13

Husqvarna 598684239

NEEDS DESCRIPTION

Note: Walking case

$

$

Currently unavailable

19

Husqvarna 588009201

NEEDS DESCRIPTION

Note: Spring washer 8

$

$

Currently unavailable

14

Husqvarna 598684187

NEEDS DESCRIPTION

Note: Deep groove ball bearing 6305

$

$

Currently unavailable

6

Husqvarna 598684352

NEEDS DESCRIPTION

Note: Screw M6x10

$

$

Currently unavailable

9

Husqvarna 598684389

NEEDS DESCRIPTION

Note: Spring washer 10

$

$

Currently unavailable

26

Husqvarna 588447001

NEEDS DESCRIPTION

Note: Tapered roller bearings 30206

$

$

Currently unavailable

20

Husqvarna 598684254

NEEDS DESCRIPTION

Note: Walking case end cover

$

$

Currently unavailable

28

Husqvarna 598684332

NEEDS DESCRIPTION

Note: Cotter Pin 2×25

$

$

Currently unavailable

23

Husqvarna 588456001

NEEDS DESCRIPTION

Note: Washer

$

$

Currently unavailable

2

Husqvarna 598684319

NEEDS DESCRIPTION

Note: Nut M12

$

$

Currently unavailable

5

Husqvarna 598684342

NEEDS DESCRIPTION

Note: Pressing plate

$

$

Currently unavailable

10

Husqvarna 598684315

NEEDS DESCRIPTION

Note: Nut M10

$

$

Currently unavailable

27

Husqvarna 598684390

NEEDS DESCRIPTION

Note: Spring washer 12

$

$

Currently unavailable

8

Husqvarna 598684396

NEEDS DESCRIPTION

Note: Flat washer 10

$

$

Currently unavailable

4

Husqvarna 598684367

NEEDS DESCRIPTION

Note: Hexagonal Output Shaft

$

$

Currently unavailable

15

Husqvarna 598684231

NEEDS DESCRIPTION

Note: Spacer bush

$

$

Currently unavailable

7

Husqvarna 598684355

NEEDS DESCRIPTION

Note: Oil seal 25×42×7

$

$

Currently unavailable

21

Husqvarna 598684276

NEEDS DESCRIPTION

Note: End cover gasket

$

$

Currently unavailable

29

Husqvarna 598684274

NEEDS DESCRIPTION

Note: Combination gasket

$

$

Currently unavailable

3

Husqvarna 598684285

NEEDS DESCRIPTION

Note: Driven umbrella gear

$

$

Currently unavailable

17

Husqvarna 598684394

NEEDS DESCRIPTION

Note: Flat washer 8

$

$

Currently unavailable

1

Husqvarna 598684225

NEEDS DESCRIPTION

Note: Stud bolt M10×45

$

$

Currently unavailable

16

Husqvarna 598684286

NEEDS DESCRIPTION

Note: Walking umbrella gear

$

$

Currently unavailable

18

Husqvarna 598684206

NEEDS DESCRIPTION

Note: Bolt M10×30

$

$

Currently unavailable
