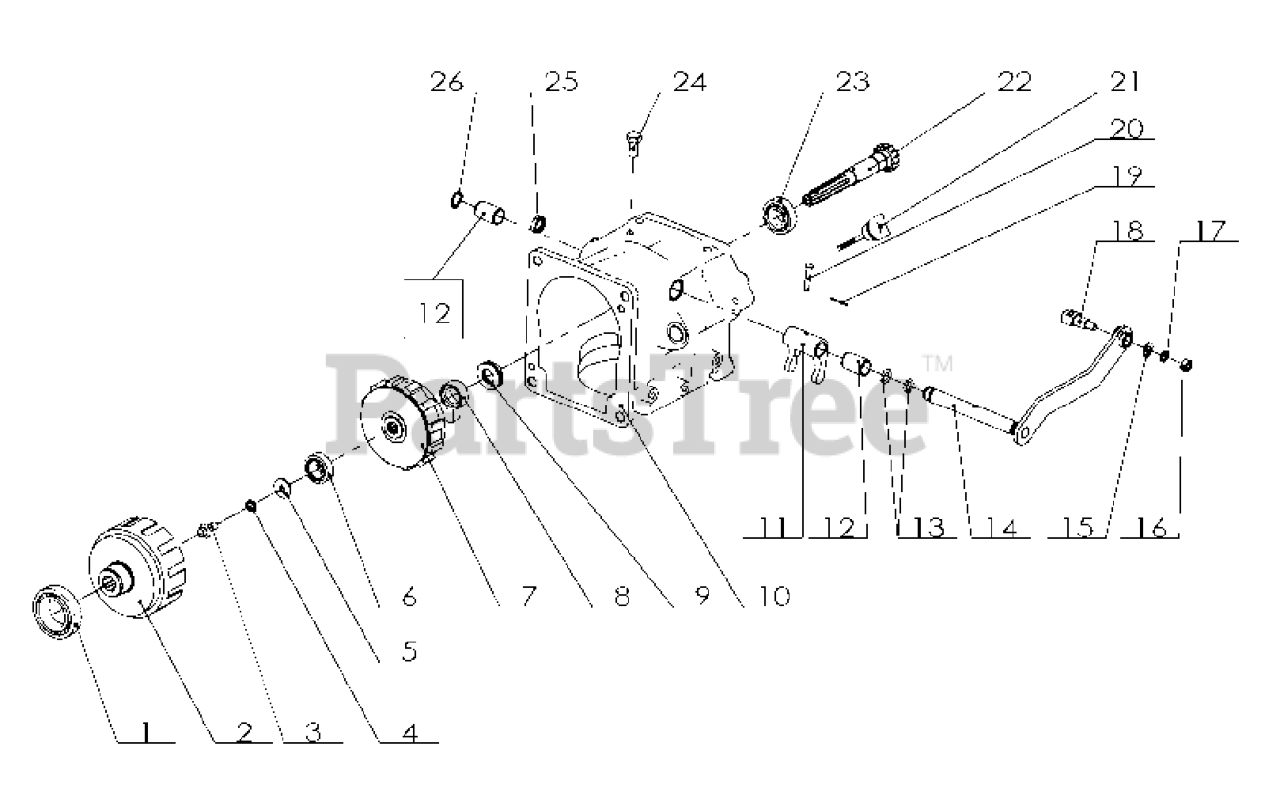

TR 262 - Husqvarna Rear-Tine Tiller (2019-09) TRANSMISSION 3 Parts Diagram

Rear-Tine Tiller

TRANSMISSION 3 Parts Diagram

  • Title
18

Husqvarna 588009201

NEEDS DESCRIPTION

Note: Spring washer 8

$

$

Currently unavailable

17

Husqvarna 588009101

NEEDS DESCRIPTION

Note: Nut M8

$

$

Currently unavailable

27

Husqvarna 588444201

NEEDS DESCRIPTION

Note: Circlip 16

$

$

Currently unavailable

14

Husqvarna 598684327

NEEDS DESCRIPTION

Note: O-ring 11×2.8

$

$

Currently unavailable

21

Husqvarna 588416901

NEEDS DESCRIPTION

Note: Pin 6×30

$

$

Currently unavailable

13

Husqvarna 590349501

NEEDS DESCRIPTION

Note: Sleeve 16×20×30

$

$

Currently unavailable

24

Husqvarna 598684184

NEEDS DESCRIPTION

Note: Deep groove ball bearing 6004

$

$

Currently unavailable

2

Husqvarna 598684251

NEEDS DESCRIPTION

Note: Clutch cover assy

$

$

Currently unavailable

23

Husqvarna 598684176

NEEDS DESCRIPTION

Note: Main axle

$

$

Currently unavailable

22

Husqvarna 598684266

NEEDS DESCRIPTION

Note: Dipstick Assy

$

$

Currently unavailable

8

Husqvarna 598684252

NEEDS DESCRIPTION

Note: Clutch core assy

$

$

Currently unavailable

20

Husqvarna 598684333

NEEDS DESCRIPTION

Note: Split pin 2×20

$

$

Currently unavailable

5

Husqvarna 588413301

NEEDS DESCRIPTION

Note: Big washer 8

$

$

Currently unavailable

3

Husqvarna 598684211

NEEDS DESCRIPTION

Note: Bolt M8×20

$

$

Currently unavailable

11

Husqvarna 598684227

NEEDS DESCRIPTION

Note: Front gear box

$

$

Currently unavailable

16

Husqvarna 588413301

NEEDS DESCRIPTION

Note: Big washer 8

$

$

Currently unavailable

12

Husqvarna 588417001

NEEDS DESCRIPTION

Note: Clutch shift fork

$

$

Currently unavailable

9

Husqvarna 598684371

NEEDS DESCRIPTION

Note: Pad sleeve

$

$

Currently unavailable

6

Husqvarna 587940201

NEEDS DESCRIPTION

Note: Bearing 6202

$

$

Currently unavailable

4

Husqvarna 588413201

NEEDS DESCRIPTION

Note: Washer 8

$

$

Currently unavailable

10

Husqvarna 598684267

NEEDS DESCRIPTION

Note: T26 friction disc

$

$

Currently unavailable

1

Husqvarna 588413001

NEEDS DESCRIPTION

Note: Deep groove ball bearing 6007

$

$

Currently unavailable

15

Husqvarna 598684177

NEEDS DESCRIPTION

Note: Fork axle

$

$

Currently unavailable

25

Husqvarna 598684209

NEEDS DESCRIPTION

Note: Bolt M10×20

$

$

Currently unavailable

19

Husqvarna 598684297

NEEDS DESCRIPTION

Note: Wire holder

$

$

Currently unavailable

26

Husqvarna 598684350

NEEDS DESCRIPTION

Note: Oil plug 20x6

$

$

Currently unavailable
