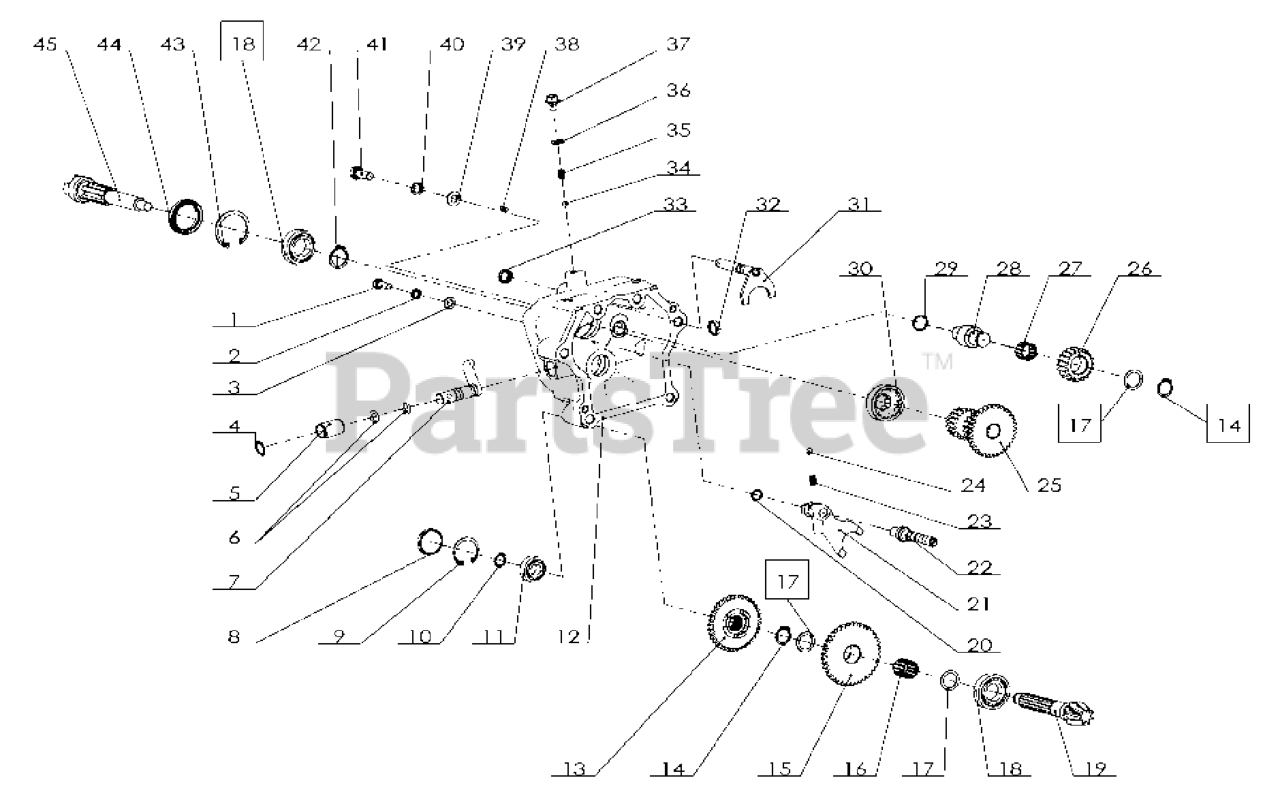

TR 262 - Husqvarna Rear-Tine Tiller (2019-09) TRANSMISSION Parts Diagram

Rear-Tine Tiller

TRANSMISSION Parts Diagram

  • Title
43

Husqvarna 598684242

NEEDS DESCRIPTION

Note: Circlip 47

$

$

Currently unavailable

45

Husqvarna 598684366

NEEDS DESCRIPTION

Note: PTO output shaft

$

$

Currently unavailable

13

Husqvarna 598684284

NEEDS DESCRIPTION

Note: Shifting gear A

$

$

Currently unavailable

32

Husqvarna 598684350

NEEDS DESCRIPTION

Note: Oil plug 20x6

$

$

Currently unavailable

40

Husqvarna 598684389

NEEDS DESCRIPTION

Note: Spring washer 10

$

$

Currently unavailable

20

Husqvarna 598684325

NEEDS DESCRIPTION

Note: O-ring 11.8×1.8

$

$

Currently unavailable

44

Husqvarna 598684358

NEEDS DESCRIPTION

Note: Oil seal 35x47x7

$

$

Currently unavailable

38

Husqvarna 598684330

NEEDS DESCRIPTION

Note: Pin 5x10

$

$

Currently unavailable

29

Husqvarna 598684328

NEEDS DESCRIPTION

Note: O-ring 18×1.8

$

$

Currently unavailable

12

Husqvarna 598684257

NEEDS DESCRIPTION

Note: Back gearbox cover

$

$

Currently unavailable

14

Husqvarna 598684246

NEEDS DESCRIPTION

Note: Circlip 20

$

$

Currently unavailable

17

Husqvarna 598684384

NEEDS DESCRIPTION

Note: Adjustment washer 20×27×1

$

$

Currently unavailable

2

Husqvarna 588009201

NEEDS DESCRIPTION

Note: Spring washer 8

$

$

Currently unavailable

3

Husqvarna 598684394

NEEDS DESCRIPTION

Note: Flat washer 8

$

$

Currently unavailable

1

Husqvarna 598684204

NEEDS DESCRIPTION

Note: Bolt M8×20

$

$

Currently unavailable

37

Husqvarna 598684210

NEEDS DESCRIPTION

Note: Bolt M8×20

$

$

Currently unavailable

28

Husqvarna 598684361

NEEDS DESCRIPTION

Note: Reverse gear shaft

$

$

Currently unavailable

10

Husqvarna 590038401

NEEDS DESCRIPTION

Note: Circlip 15

$

$

Currently unavailable

26

Husqvarna 598684282

NEEDS DESCRIPTION

Note: Reverse gear

$

$

Currently unavailable

36

Husqvarna 598684386

NEEDS DESCRIPTION

Note: Ø8 Washer

$

$

Currently unavailable

33

Husqvarna 598684353

NEEDS DESCRIPTION

Note: Oil seal WD12×18×4

$

$

Currently unavailable

27

Husqvarna 598684191

NEEDS DESCRIPTION

Note: Needle bearing K20×24×13

$

$

Currently unavailable

30

Husqvarna 598684268

NEEDS DESCRIPTION

Note: PTO driven disk

$

$

Currently unavailable

18

Husqvarna 587941801

NEEDS DESCRIPTION

Note: Deep groove ball bearing 6005

$

$

Currently unavailable

5

Husqvarna 590349501

NEEDS DESCRIPTION

Note: Sleeve 16×20×30

$

$

Currently unavailable

6

Husqvarna 598684327

NEEDS DESCRIPTION

Note: O-ring 11×2.8

$

$

Currently unavailable

24

Husqvarna 590352501

NEEDS DESCRIPTION

Note: Ø8 steel ball

$

$

Currently unavailable

19

Husqvarna 598684362

NEEDS DESCRIPTION

Note: Vice shaft

$

$

Currently unavailable

22

Husqvarna 598684360

NEEDS DESCRIPTION

Note: Shift gear fork shaft

$

$

Currently unavailable

8

Husqvarna 598684348

NEEDS DESCRIPTION

Note: Oil plug 35x6

$

$

Currently unavailable

39

Husqvarna 598684396

NEEDS DESCRIPTION

Note: Flat washer 10

$

$

Currently unavailable

23

Husqvarna 598684376

NEEDS DESCRIPTION

Note: Shift gear spring

$

$

Currently unavailable

7

Husqvarna 598684309

NEEDS DESCRIPTION

Note: Rocker Lever

$

$

Currently unavailable

9

Husqvarna 587979601

NEEDS DESCRIPTION

Note: Circlip 35

$

$

Currently unavailable

42

Husqvarna 598684244

NEEDS DESCRIPTION

Note: Circlip 25

$

$

Currently unavailable

25

Husqvarna 598684291

NEEDS DESCRIPTION

Note: Triple gear

$

$

Currently unavailable

34

Husqvarna 587945301

NEEDS DESCRIPTION

Note: Ø6.35 steel ball

$

$

Currently unavailable

15

Husqvarna 598684287

NEEDS DESCRIPTION

Note: Transmission dual gear

$

$

Currently unavailable

16

Husqvarna 598684192

NEEDS DESCRIPTION

Note: Needle bearing K20×24×20

$

$

Currently unavailable

41

Husqvarna 598684214

NEEDS DESCRIPTION

Note: Bolt M10×25

$

$

Currently unavailable

4

Husqvarna 588444201

NEEDS DESCRIPTION

Note: Circlip 16

$

$

Currently unavailable

35

Husqvarna 587945201

NEEDS DESCRIPTION

Note: Spring

$

$

Currently unavailable

11

Husqvarna 587940201

NEEDS DESCRIPTION

Note: Bearing 6202

$

$

Currently unavailable

21

Husqvarna 598684272

NEEDS DESCRIPTION

Note: Shift gear fork

$

$

Currently unavailable

31

Husqvarna 598684363

NEEDS DESCRIPTION

Note: PTO fork shaft assy

$

$

Currently unavailable
