TR 262 - Husqvarna Rear-Tine Tiller (2019-09) REAR WHEEL Parts Diagram

Rear-Tine Tiller

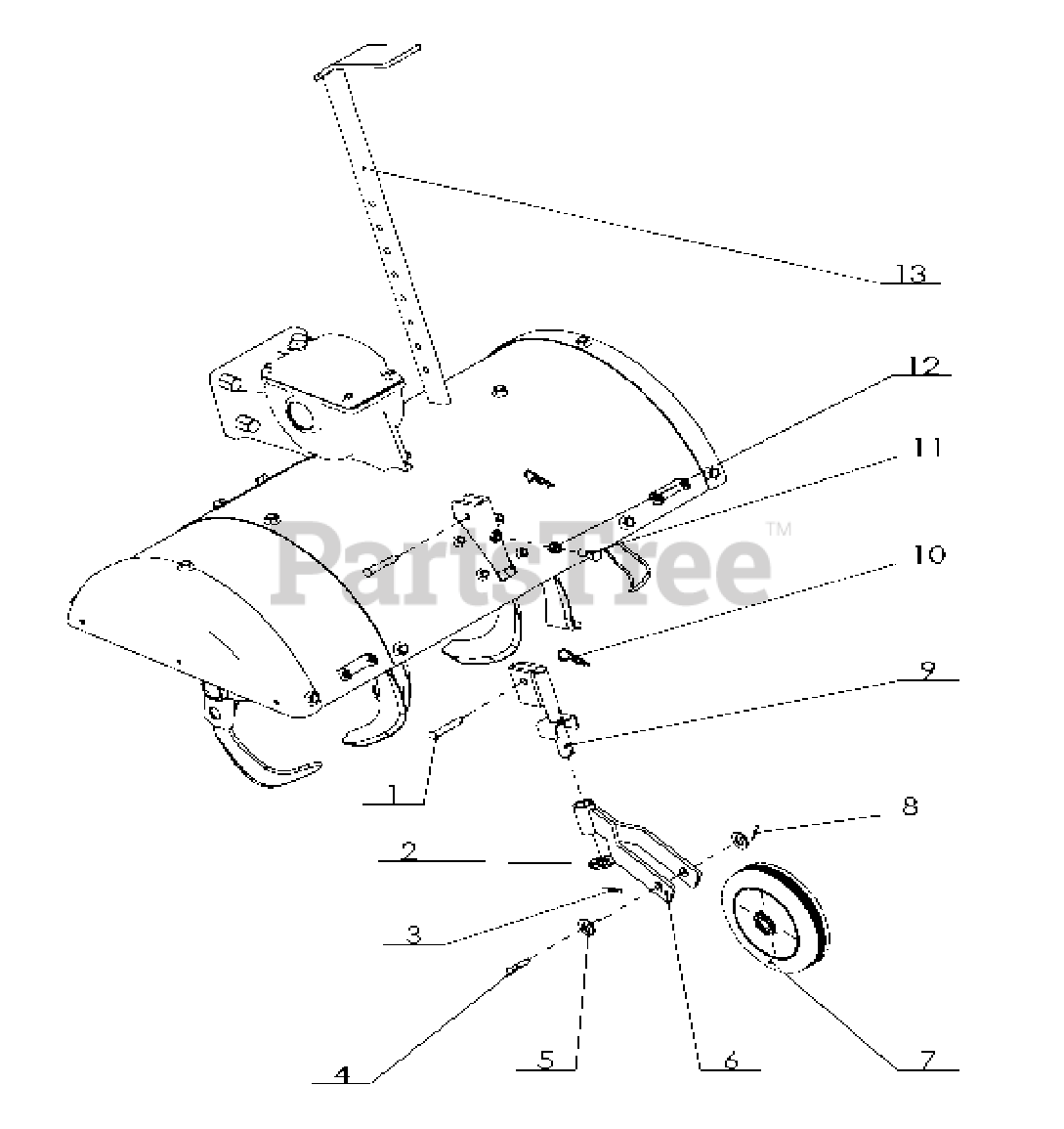

REAR WHEEL Parts Diagram

  • Title
11

Husqvarna 598684199

NEEDS DESCRIPTION

Note: Bolt M8x25

$

$

Currently unavailable

9

Husqvarna 598684381

NEEDS DESCRIPTION

Note: Back wheel support

$

$

Currently unavailable

10

Husqvarna 587952601

NEEDS DESCRIPTION

Note: Circlip B

$

$

Currently unavailable

3

Husqvarna 598684334

NEEDS DESCRIPTION

Note: Cotter Pin 2.5×30

$

$

Currently unavailable

2

Husqvarna 598684397

NEEDS DESCRIPTION

Note: Flat washer 16

$

$

Currently unavailable

8

Husqvarna 598684333

NEEDS DESCRIPTION

Note: Split pin 2×20

$

$

Currently unavailable

13

Husqvarna 598684181

NEEDS DESCRIPTION

Note: Drag bar

$

$

Currently unavailable

4

Husqvarna 598684339

NEEDS DESCRIPTION

Note: Pin 12x60

$

$

Currently unavailable

6

Husqvarna 598684249

NEEDS DESCRIPTION

Note: Back wheel connector

$

$

Currently unavailable

12

Husqvarna 588009101

NEEDS DESCRIPTION

Note: Nut M8

$

$

Currently unavailable

1

Husqvarna 598684337

NEEDS DESCRIPTION

Note: Pin 8×43

$

$

Currently unavailable

5

Husqvarna 598684393

NEEDS DESCRIPTION

Note: Flat washer 12

$

$

Currently unavailable

7

Husqvarna 598684402

NEEDS DESCRIPTION

Note: Back wheel

$

$

Currently unavailable
