TR 262 - Husqvarna Rear-Tine Tiller (2019-09) ENGINE Parts Diagram

Rear-Tine Tiller

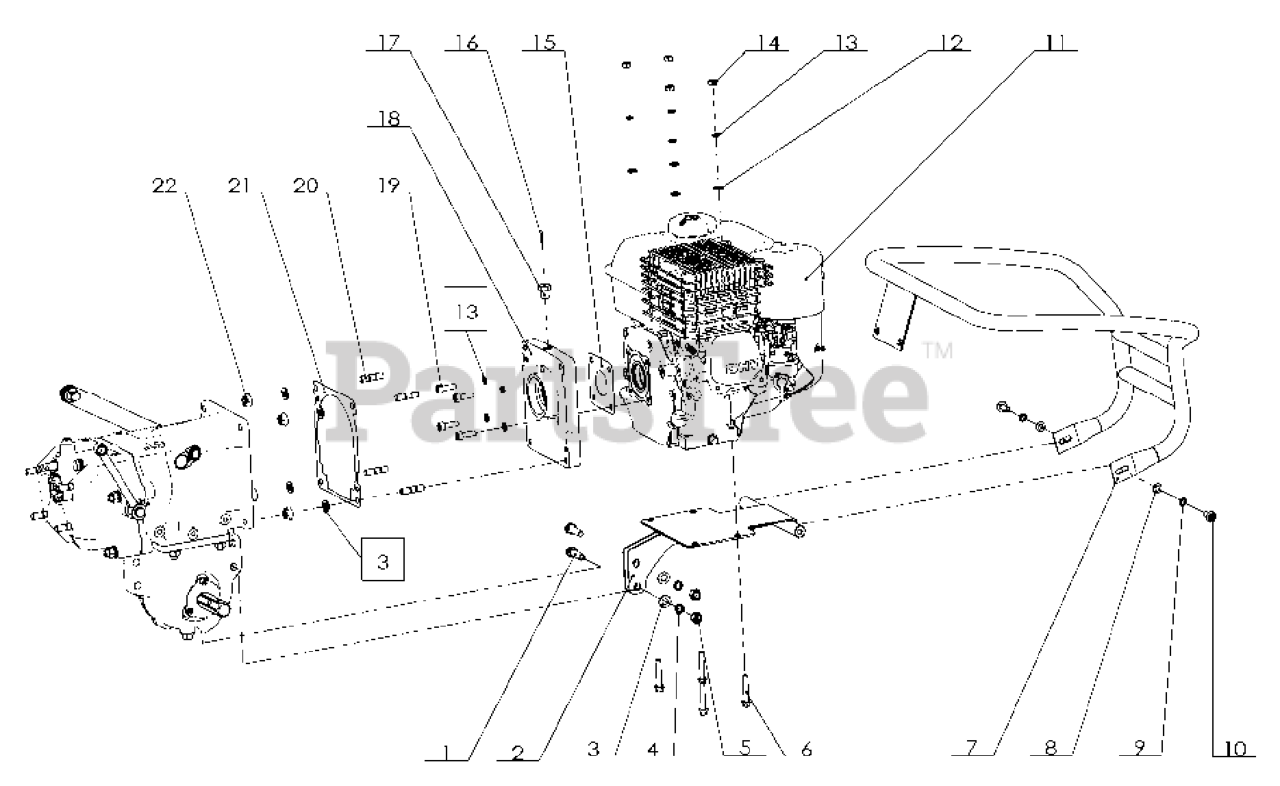

ENGINE Parts Diagram

  • Title
7

Husqvarna 598684230

NEEDS DESCRIPTION

Note: Bumper

$

$

Currently unavailable

13

Husqvarna 588009201

NEEDS DESCRIPTION

Note: Spring washer 8

$

$

Currently unavailable

19

Husqvarna 598684351

NEEDS DESCRIPTION

Note: Screw M8x25

$

$

Currently unavailable

18

Husqvarna 598684329

NEEDS DESCRIPTION

Note: PIN, DOWEL, Ø8×14

$

$

Currently unavailable

8

Husqvarna 598684395

NEEDS DESCRIPTION

Note: Flat washer 8

$

$

Currently unavailable

3

Husqvarna 598684396

NEEDS DESCRIPTION

Note: Flat washer 10

$

$

Currently unavailable

2

Husqvarna 598684229

NEEDS DESCRIPTION

Note: Engine bracket

$

$

Currently unavailable

20

Husqvarna 598684224

NEEDS DESCRIPTION

Note: Bolt 10x35

$

$

Currently unavailable

10

Husqvarna 598684198

NEEDS DESCRIPTION

Note: Bolt M8×20

$

$

Currently unavailable

1

Husqvarna 598684201

NEEDS DESCRIPTION

Note: Bolt M10×35

$

$

Currently unavailable

11

Husqvarna 598684271

NEEDS DESCRIPTION

Note: Engine

$

$

Currently unavailable

4

Husqvarna 598684389

NEEDS DESCRIPTION

Note: Spring washer 10

$

$

Currently unavailable

6

Husqvarna 598684213

NEEDS DESCRIPTION

Note: Bolt M8x40

$

$

Currently unavailable

22

Husqvarna 598684318

NEEDS DESCRIPTION

Note: Nut M10

$

$

Currently unavailable

21

Husqvarna 598684278

NEEDS DESCRIPTION

Note: Gasket

$

$

Currently unavailable

14

Husqvarna 588009101

NEEDS DESCRIPTION

Note: Nut M8

$

$

Currently unavailable

17

Husqvarna 598684226

NEEDS DESCRIPTION

Note: Drain bolt M12×1.25x15

$

$

Currently unavailable

12

Husqvarna 598684394

NEEDS DESCRIPTION

Note: Flat washer 8

$

$

Currently unavailable

16

Husqvarna 598684332

NEEDS DESCRIPTION

Note: Cotter Pin 2×25

$

$

Currently unavailable

5

Husqvarna 598684315

NEEDS DESCRIPTION

Note: Nut M10

$

$

Currently unavailable

15

Husqvarna 598684279

NEEDS DESCRIPTION

Note: GASKET

$

$

Currently unavailable

9

Husqvarna 589017201

NEEDS DESCRIPTION

Note: Spring washer 8

$

$

Currently unavailable
