TR 262 - Husqvarna Rear-Tine Tiller (2019-09) CRANKCASE COVER Parts Diagram

Rear-Tine Tiller

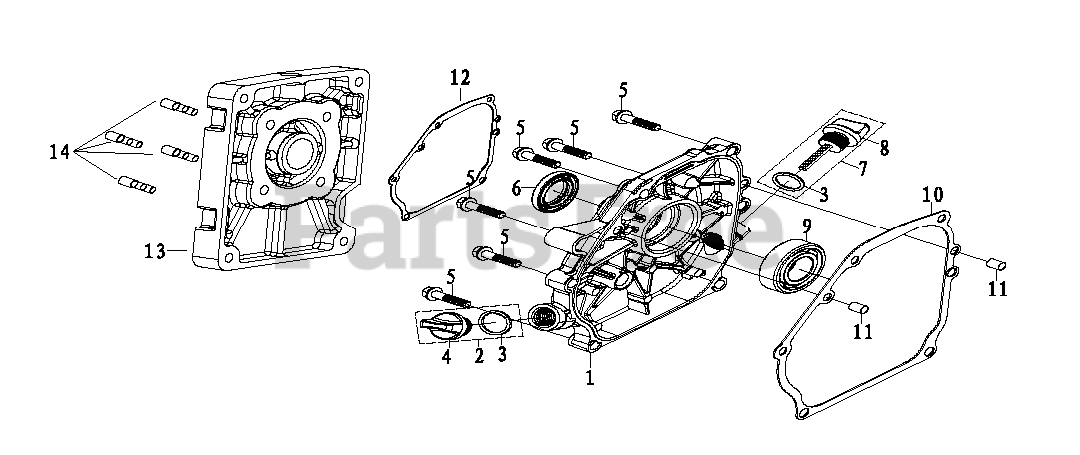

CRANKCASE COVER Parts Diagram

  • Title

5

Husqvarna 589911601

NEEDS DESCRIPTION

Note: BOLT M8×32

$

$

Currently unavailable

1

Husqvarna 588002001

NEEDS DESCRIPTION

Note: COVER, CRANKCASE

$

$

Currently unavailable

2

Husqvarna 588002101

NEEDS DESCRIPTION

Note: OIL FILLER PLUG ASSY

$

$

Currently unavailable

6

Husqvarna 596604401

NEEDS DESCRIPTION

Note: OIL SEAL

$

$

Currently unavailable

3

Husqvarna 590832701

NEEDS DESCRIPTION

Note: DIPSTICK SEALING RING

$

$

Currently unavailable

7

Husqvarna 588002401

NEEDS DESCRIPTION

Note: DIPSTICK ASSY

$

$

Currently unavailable

12

Husqvarna 598684279

NEEDS DESCRIPTION

Note: GASKET

$

$

Currently unavailable

4

Husqvarna 598684345

NEEDS DESCRIPTION

Note: OIL FILLER PLUG

$

$

Currently unavailable

10

Husqvarna 588002701

NEEDS DESCRIPTION

Note: GASKET, CASE COVER

$

$

Currently unavailable

9

Husqvarna 587942101

Bearings

Note: BEARING GB/T276/6205

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 590832601

NEEDS DESCRIPTION

Note: DIPSTICK

$

$

Currently unavailable
