TR 2350 S - RedMax String Trimmer (SN: 90200101 - 90801411) (2010-04) 002 - DRIVE UNIT Parts Diagram

String Trimmer

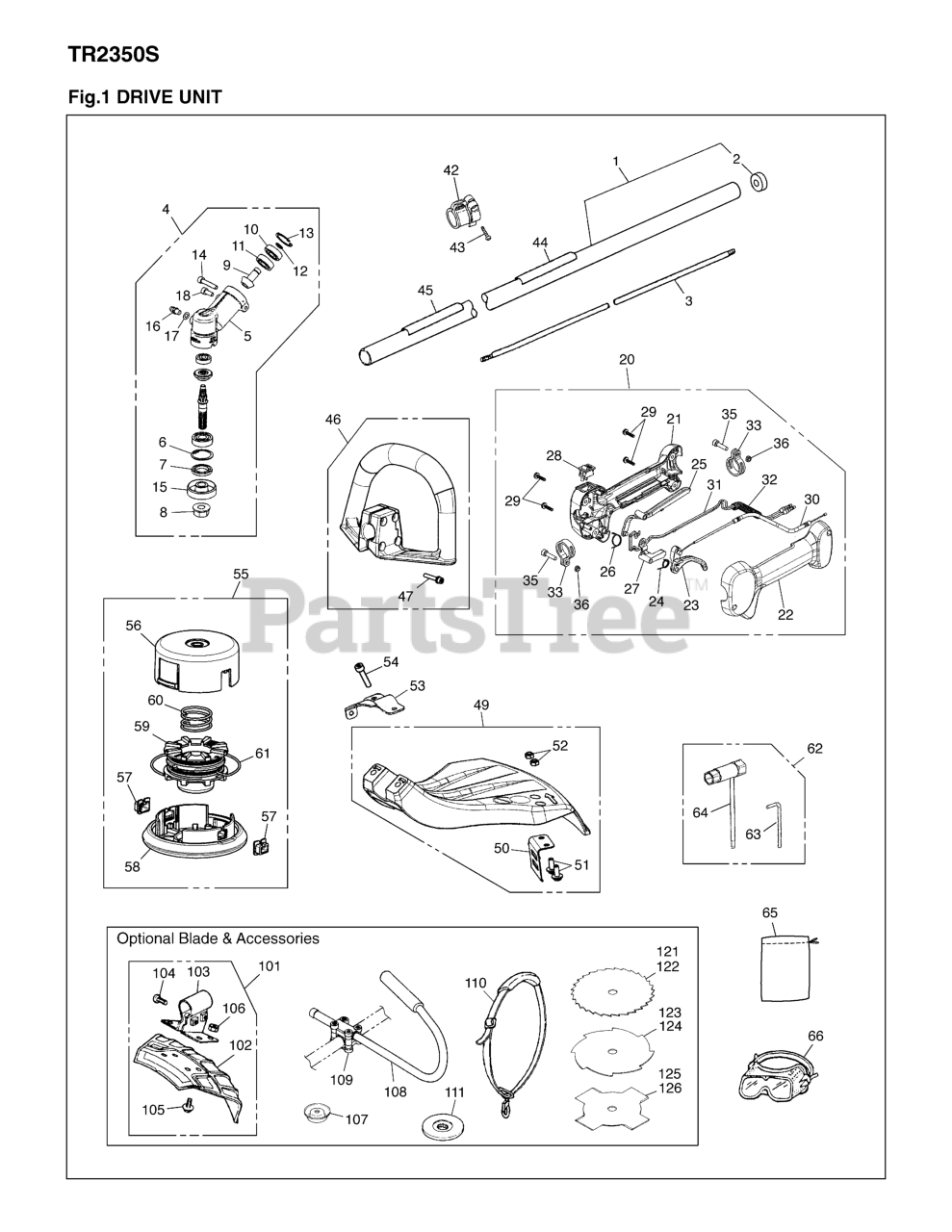

002 - DRIVE UNIT Parts Diagram

  • Title
1

RedMax 848J8S5820

PIPE COMP.
(Superseded to 528868901)

$66.99

$

Usually ships in 3-10 days

0

2

RedMax T340012130

SEAL
(Superseded to 521825401)

$4.99

$

In Stock, only 2 left!

0

3

RedMax 352012213

SHAFT
(Superseded to 514344201)

$53.99

$

Usually ships in 3-10 days

0

4

RedMax 848JC06100

GEARCASE ASSY.
(Superseded to 574716301)

$121.99

$

In Stock, only 1 left!

0

5

RedMax 644013122

GEARCASE
(Superseded to 575477101)

$

$

Not available

6

RedMax 0406502612

SNAP RING
(Superseded to 516125501)

$4.99

$

In Stock, only 2 left!

0

7

RedMax 356513130

SEAL
(Superseded to 521197001)

$7.49

$

In Stock, only 1 left!

0

8

RedMax T300213260

NUT
(Superseded to 521804001)

$4.99

$

In Stock, only 3 left!

0

9

RedMax 848JC061D0

PINION
(Superseded to 521653001)

$28.99

$

Usually ships in 3-10 days

0

10

RedMax T330013531

BEARING
(Superseded to 516129701)

$8.99

$

In Stock, only 3 left!

0

11

RedMax T340313530

BEARING
(Superseded to 505169201)

$9.99

$

In Stock, Qty 5

0

12

RedMax T330013330

SNAP RING
(Superseded to 520910501)

$3.49

$

Usually ships in 3-10 days

0

13

RedMax 0406502412

RING, SNAP, M24 x 1.2
(Superseded to 505169401)

$3.99

$

Usually ships in 3-10 days

0

14

RedMax T495052500

BOLT
(Superseded to 512845701)

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 644013242

HOLDER (A)
(Superseded to 515632501)

$31.99

$

Usually ships in 3-10 days

0

16

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

17

RedMax 0164120608

WASHER, FITTING
(Superseded to 505171601)

$3.99

$

Usually ships in 3-10 days

0

18

RedMax T495051200

BOLT
(Superseded to 521861101)

$4.99

$

In Stock, Qty 20+

0

20

RedMax 8488R40600

GRIP ASSY
(Superseded to 574390302)

$93.99

$

In Stock, only 1 left!

0

21

$

$

Not available

22

$

$

Not available

23

RedMax 8488RC0600

LEVER, THROTTLE
(Superseded to 529258801)

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 8488RJ0600

SPRING, THROTTLE
(Superseded to 529259601)

$7.49

$

In Stock, only 2 left!

0

25

RedMax 8488RD0600

LEVER, SAFETY
(Superseded to 578778001)

$4.99

$

In Stock, only 1 left!

0

26

$

$

Not available

27

RedMax 8488RE0600

LEVER, JOINT

$

$

Not available

28

RedMax T450652110

SWITCH
(Superseded to 521851601)

$11.99

$

In Stock, only 3 left!

0

29

RedMax 8488241600

SCREW
(Superseded to 521517701)

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 8488P40550

CABLE COMP
(Superseded to 529257101)

$12.99

$

In Stock, only 2 left!

0

31

RedMax 8488M10820

CORD COMP
(Superseded to 529256101)

$7.49

$

Usually ships in 3-10 days

0

32

RedMax T300314510

TUBE
(Superseded to 521805501)

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

35

RedMax 482013180

BOLT TORX
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

$

$

Not available

42

RedMax T330017202

HANGER COMP.
(Superseded to 521822101)

$

$

Not available

43

RedMax 8488052000

SCREW
(Superseded to 521515301)

$4.99

$

In Stock, only 2 left!

0

44

RedMax 848J7G90R0

LABEL, NAME

$

$

Not available

45

RedMax 8488X10040

LABEL, CAUTION
(Superseded to 510962901)

$7.49

$

Usually ships in 3-10 days

0

46

RedMax T319514002

HANDLE ASSY
(Superseded to 526056401)

$26.99

$

In Stock, only 3 left!

0

47

RedMax T496053030

SCREW
(Superseded to 521863101)

$3.49

$

In Stock, Qty 11

0

49

RedMax 574474501

GUARD ASSY FOR T
(Superseded to 578403401)

$34.99

$

In Stock, only 2 left!

0

50

$6.99

$

In Stock, only 1 left!

0

51

RedMax 521862901

SCREW
(Superseded to 502843901)

$6.49

$

In Stock, Qty 11

0

$4.99

$

In Stock, Qty 6

0

53

$6.99

$

Usually ships in 3-10 days

0

54

RedMax 512846401

BOLT, TORX

$8.99

$

In Stock, only 4 left!

0

55

RedMax PT104 PLUS

TAP HEAD COMP.

$

$

Not available

56

RedMax 848BU369M4

CASE
(Superseded to 521540701)

$20.99

$

In Stock, only 2 left!

0

57

RedMax T318915191

EYELET
(Superseded to 512549801)

$5.99

$

In Stock, Qty 5

0

58

RedMax T318915132

COVER
(Superseded to 521819401)

$22.99

$

In Stock, only 4 left!

0

59

RedMax T318915142

CORD HOLDER
(Superseded to 521819501)

$17.99

$

In Stock, Qty 13

0

60

RedMax T318915160

SPRING
(Superseded to 521819601)

$4.99

$

In Stock, Qty 5

0

$

$

Not available

62

RedMax 8488U00140

TOOL SET
(Superseded to 510958901)

$13.99

$

Usually ships in 3-10 days

0

63

RedMax 354091110

BAR
(Superseded to 521176101)

$3.49

$

Usually ships in 3-10 days

0

64

$3.25

$

Usually ships in 3-10 days

0

$1.00

$

Usually ships in 3-10 days

0

66

RedMax 848A5692C0

GOGGLE
(Superseded to 510989401)

$

$

Not available

101

RedMax 576424000

GUARD ASSY.
(Superseded to 521387001)

$

$

Not available

102

RedMax 576624110

GUARD
(Superseded to 515476201)

$11.99

$

Usually ships in 3-10 days

0

103

$6.80

$

Usually ships in 3-10 days

0

104

RedMax 022510620

BOLT
(Superseded to 516089301)

$3.49

$

Usually ships in 3-10 days

0

105

RedMax 026330614

SCREW
(Superseded to 516111001)

$

$

Not available

106

RedMax 028010605

NUT M6
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

107

RedMax 354013283

COVER
(Superseded to 514358301)

$10.99

$

In Stock, only 2 left!

0

108

RedMax 636714200

HANDLE, J

$

$

Not available

109

RedMax 358314101

BRACKET
(Superseded to 521210301)

$22.99

$

Usually ships in 3-10 days

0

110

RedMax 848J823610

STRAP ASSY
(Superseded to 521651101)

$15.99

$

In Stock, only 2 left!

0

111

RedMax 601913250

HOLDER (B)
(Superseded to 515511401)

$13.99

$

Usually ships in 3-10 days

0

121

RedMax SST229

BLADE, 9
(Superseded to 574159301)

$

$

Not available

122

RedMax SST249

BLADE, 9
(Superseded to 574159401)

$

$

Not available

123

RedMax SGB088

BLADE, 8
(Superseded to 574158501)

$

$

Not available

124

RedMax SGB089

BLADE, 9
(Superseded to 574158601)

$31.99

$

Usually ships in 3-10 days

0

125

RedMax SGB048

BLADE, 8
(Superseded to 574158301)

$

$

Not available

126

RedMax SGB049

BLADE, 9
(Superseded to 574158401)

$

$

Not available
