TR 2301 S - RedMax String Trimmer (SN: 70100101 & Above) (2008-03) 004 - CARBURETOR Parts Diagram

String Trimmer

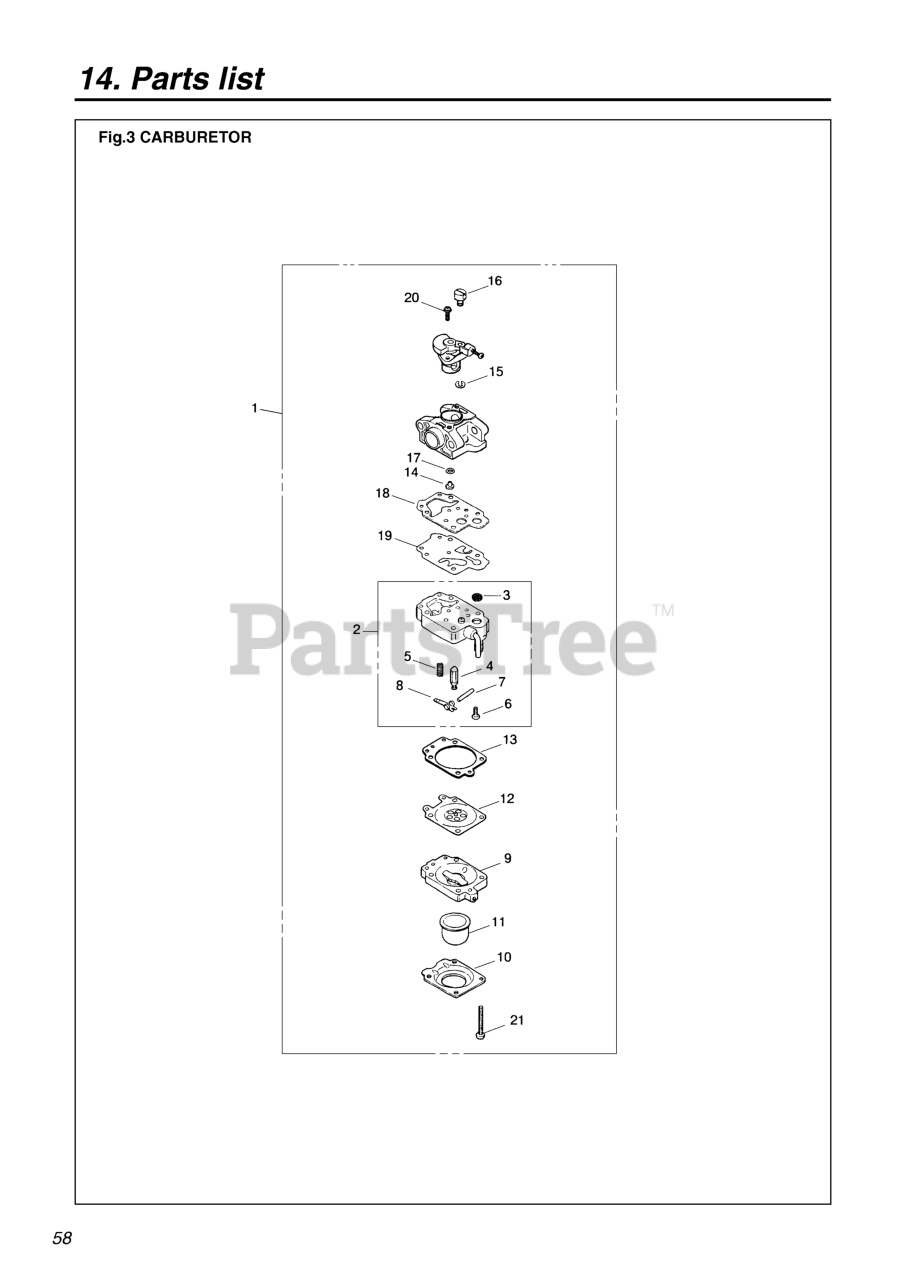

004 - CARBURETOR Parts Diagram

  • Title

1

RedMax 848E488100

CARBURETOR-A
(Superseded to 521600901)

$113.99

$

In Stock, only 1 left!

0

2

RedMax 179481450

BODY, PUMP
(Superseded to 516535501)

$72.99

$

Usually ships in 3-10 days

0

3

RedMax 330681380

SCREEN

$1.22

$

Usually ships in 3-10 days

0

4

RedMax 335681310

VALVE, INLET
(Superseded to 574024901)

$

$

Not available

5

RedMax 179481270

SPRING

$

$

Not available

6

RedMax 185081220

SCREW, METERING LEVER PIN

$2.54

$

Usually ships in 3-10 days

0

7

RedMax 331081250

PIN, METERING LEVER
(Superseded to 520977401)

$6.49

$

Usually ships in 3-10 days

0

8

RedMax 331081230

LEVER
(Superseded to 574024401)

$7.49

$

Usually ships in 3-10 days

0

9

RedMax 185081490

BODY, PURGE
(Superseded to 516543801)

$7.99

$

In Stock, only 1 left!

0

10

RedMax 185081520

COVER, PUMP
(Superseded to 516543901)

$6.49

$

In Stock, Qty 8

0

11

RedMax 175181510

PUMP, PRIMING
(Superseded to 505306701)

$9.49

$

In Stock, only 1 left!

0

12

RedMax 481081260

DIAPHRAGM (RPLS 3310-81260)
(Superseded to 505056401)

$17.99

$

In Stock, only 1 left!

0

13

RedMax 185081470

GASKET, DIAPHRAGM
(Superseded to 506740801)

$10.99

$

In Stock, only 3 left!

0

14

RedMax 8488J13600

JET
(Superseded to 521524801)

$21.99

$

Usually ships in 3-10 days

0

15

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 188181140

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

17

RedMax 175181240

RING, O
(Superseded to 505307501)

$6.49

$

In Stock, only 1 left!

0

18

RedMax 481081410

GASKET, PUMP
(Superseded to 521343801)

$10.99

$

Usually ships in 3-10 days

0

19

RedMax 106581420

DIAPHRAGM
(Superseded to 506689801)

$6.49

$

In Stock, Qty 5

0

20

RedMax 585081110

181750
(Superseded to 181750)

$2.99

$

Usually ships in 3-10 days

0

21

RedMax 185081530

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 1 left!

0
