TPP 720 (41CJPA-C902) - TrimmerPlus Pole Saw Attachment General Assembly Parts Diagram

Pole Saw Attachment

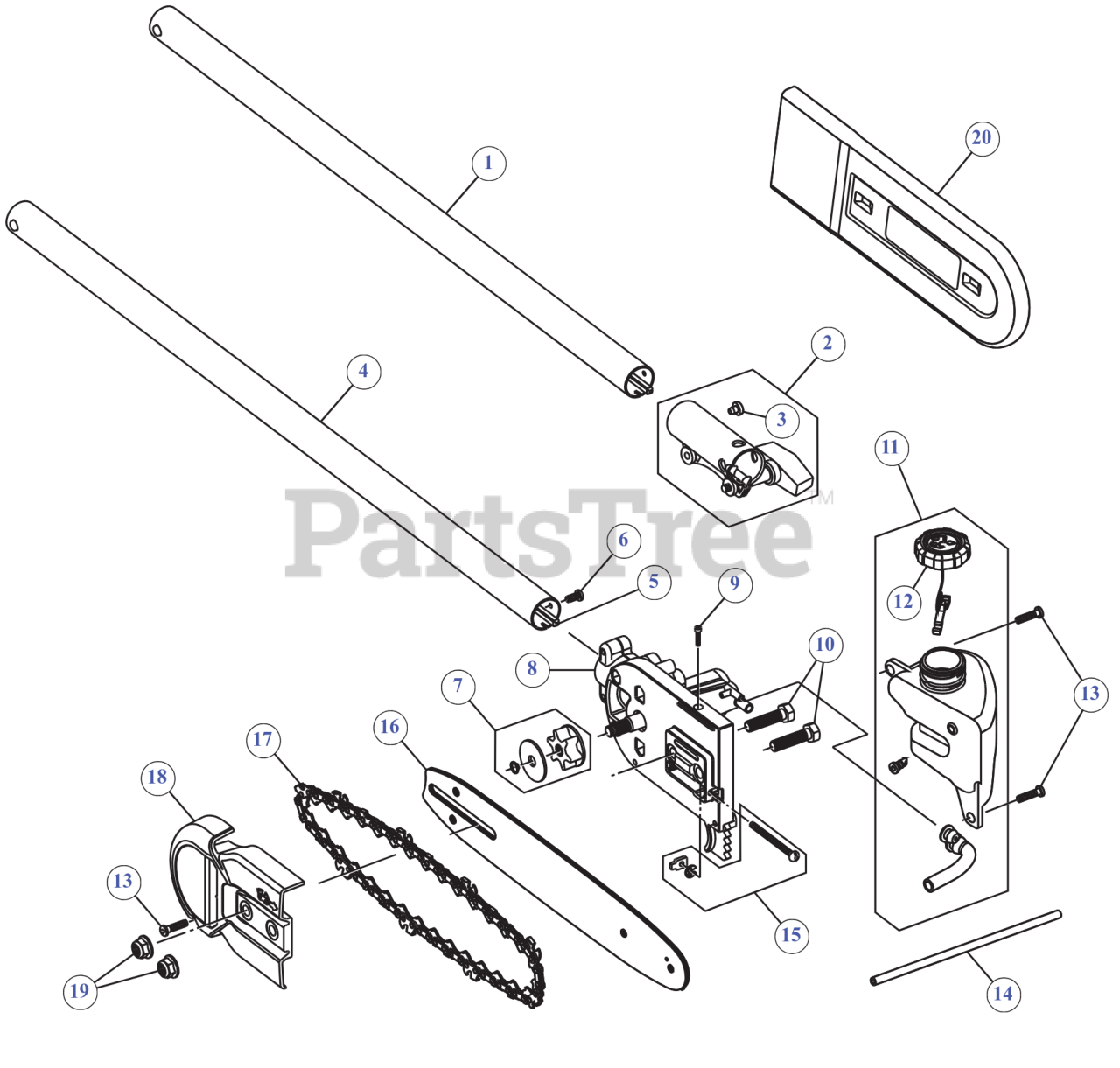

General Assembly Parts Diagram

  • Title

1

MTD 753-09226

EXTENSION BOOM ASSEMBLY

$22.99

$

Usually ships in 3-6 days

0

2

MTD 753-1190

SPLIT BOOM COUPLER KIT

Note: (Incl. 3)

$23.99

$

In Stock, only 3 left!

0

3

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

Usually ships in 3-6 days

0

4

MTD 753-11237

LOWER DRIVE SHAFT HOUSING

Note: (Incl. 5)

$38.99

$

Usually ships in 3-6 days

0

5

MTD 753-11123

FLEXIBLE DRIVE SHAFT

$65.99

$

Usually ships in 3-6 days

0

6

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

7

MTD 753-05595

SPROCKET ASSEMBLY

$11.99

$

In Stock, Qty 10

0

8

MTD 753-05599

GEAR BOX ASSEMBLY

Note: (Incl. 7 & 9)

$106.99

$

In Stock, only 2 left!

0

9

MTD 710-04696

SCREW 4X40X.50

$3.99

$

In Stock, only 2 left!

0

10

MTD 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

11

MTD 753-11360

OIL TANK

Note: (Incl. 12)

$28.99

$

Usually ships in 3-6 days

0

12

MTD 753-11375

OIL CAP

$7.99

$

Usually ships in 3-6 days

0

13

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 5

0

14

MTD 753-05588

OIL LINE

$9.99

$

Usually ships in 3-6 days

0

15

MTD 753-05597

CHAIN TENSION HDW

$10.99

$

In Stock, only 2 left!

0

16

MTD 795-00442

BAR 10"

$18.99

$

In Stock, only 1 left!

0

17

MTD 713-05156

CHAIN 10"

$15.99

$

In Stock, only 1 left!

0

18

MTD 753-05593

CHAIN GUARD RED

$13.99

$

Usually ships in 3-6 days

0

19

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

MTD 731-25531-2

SCABBARD

$6.49

$

Usually ships in 3-6 days

0

MTD 731-08926

HANGER

$2.99

$

In Stock, Qty 8

0

MTD 791-682075B

STRAP ASSEMBLY-SHOULDER

$38.99

$

Usually ships in 3-6 days

0

MTD 797-00056

ALLEN WRENCH

$10.99

$

Usually ships in 3-6 days

0
