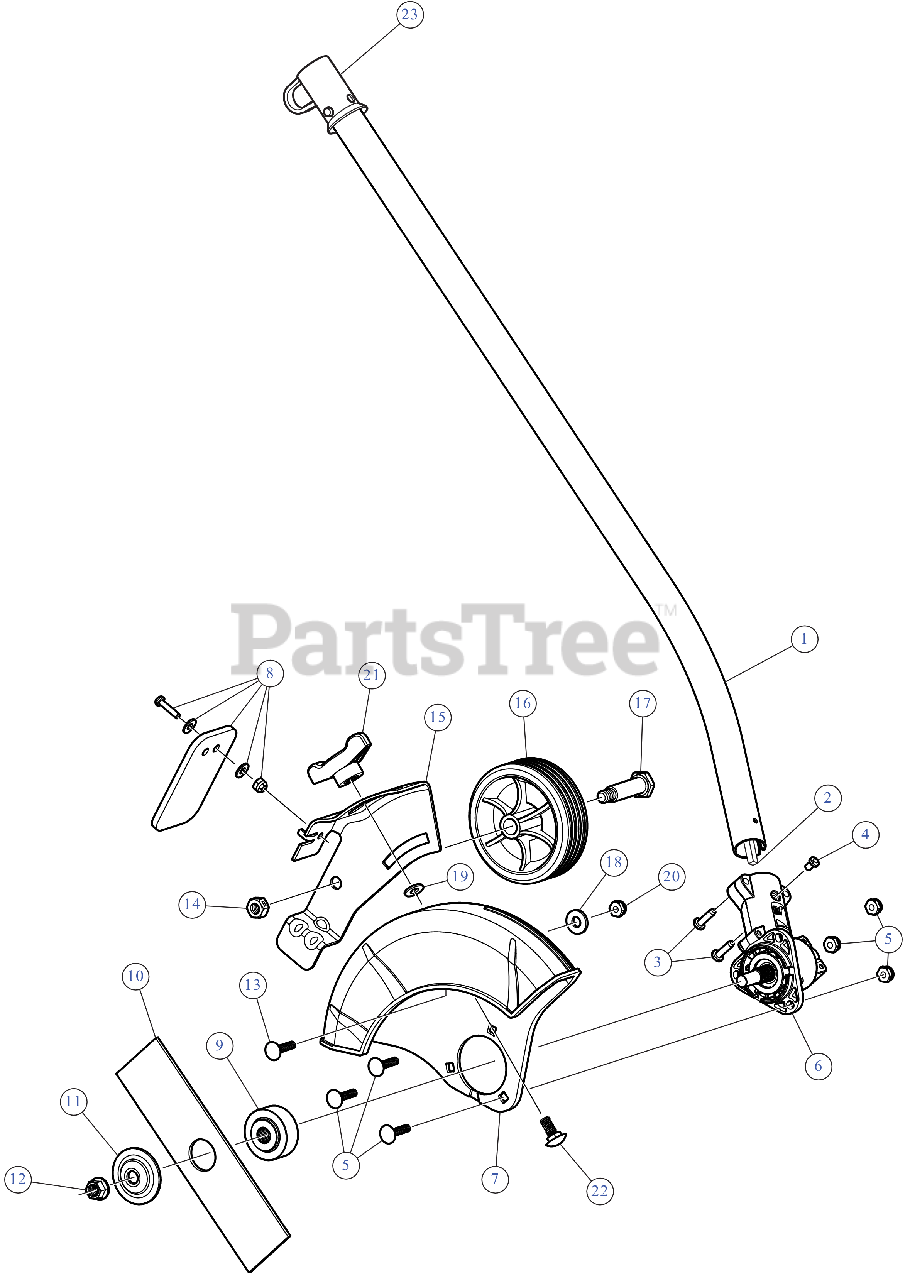

TPE 720 (41AJEA-C902) - Troy-Bilt Trimmer Plus Edger Attachment General Assembly Parts Diagram

Trimmer Plus Edger Attachment

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-08036

BOOM ASSEMBLY LE

$20.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 791-182195

SCREW #

$7.49

$

In Stock, only 1 left!

0

4

Troy-Bilt 791-182519

SCREW, 8-32 x .312 P

$4.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-1217

HDWR ASM:GUARD MT

$3.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 753-04258

GRBX ASSEMBLY

$108.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 753-08019

GUARD

$7.99

$

In Stock, only 3 left!

0

8

Troy-Bilt 753-08020

DEFLECTOR W/HDW

$3.99

$

In Stock, Qty 11

0

9

Troy-Bilt 792-10785

SPACER

$2.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 791-613223B

EDGER BLADE
(Superseded to 797-00045)

$5.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 791-147490

WASHER-BLADE CLAMP BRUSH CUT

$11.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 712-04105

BLADE LOCK NUT

$10.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-04270

BOLT:WHEEL MT BRACKET

$4.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 912-3000

LOCK NUT 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

15

Troy-Bilt 753-08021

BRACKET GUARD

$10.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 6356

WHEEL 3.75" (WHITE)

$5.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-180776

BOLT
(Superseded to 5556)

$1.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 791-182216

WASH, FLAT .734 OD

$

$

Not available

19

Troy-Bilt 736-04107

WASHER .406X1.0X.095

$4.49

$

In Stock, only 1 left!

0

20

Troy-Bilt 712-0324

NYLON LOCK NUT

$3.99

$

In Stock, Qty 17

0

21

Troy-Bilt 720-04124

WING KNOB 5/16-18

$4.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 731-08926

HANGER

$2.99

$

In Stock, only 3 left!

0
