TP 720 R (41AJTP-B034) - Ryobi Trimmer Plus Tree Pruner Attachment Tree Pruner Add-On Parts Diagram

Trimmer Plus Tree Pruner Attachment

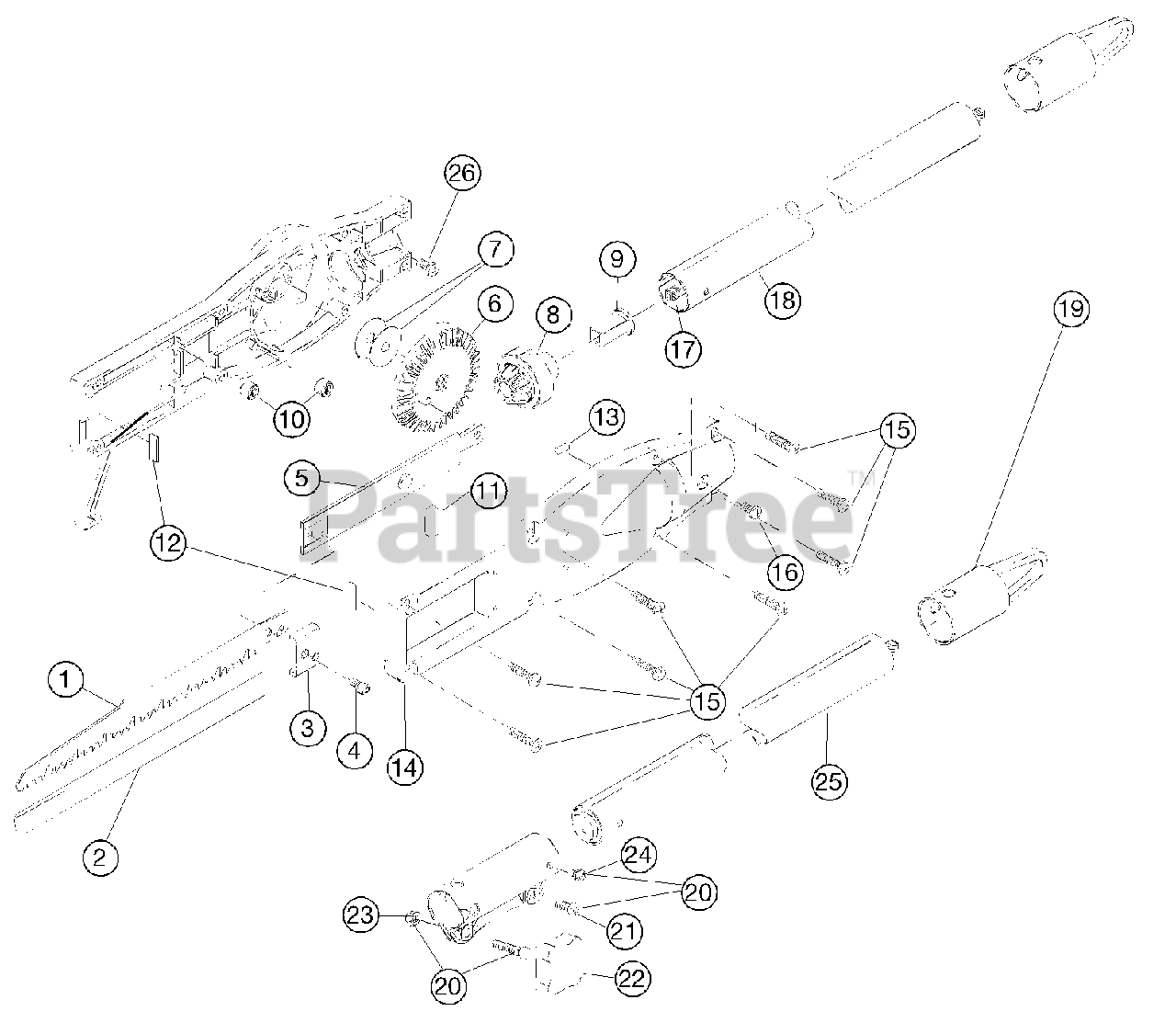

Tree Pruner Add-On Parts Diagram

  • Title

1

MTD 791-180966B

Blade (2 pack)

$

$

Not available

2

MTD 791-181153

Blade Cover

$

$

Not available

3

MTD 791-181155

Blade Clamp

$

$

Not available

4

MTD 791-181156

Blade Clamp Screw and Washer Assembly

$

$

Not available

5

MTD 791-181874

Arbor Assembly

$

$

Not available

6

MTD 791-181875

Bevel Gear

$

$

Not available

7

MTD 791-181876

Washer

$

$

Not available

8

MTD 791-181877

Pinion Bevel Gear

$

$

Not available

9

MTD 791-181851

Insulator

$7.49

$

In Stock, Qty 6

0

10

MTD 791-181878

Slide Bushing

$

$

Not available

11

MTD 791-181879

Felt Seal

$

$

Not available

12

MTD 791-181880

Slider (2-pack)

$

$

Not available

13

MTD 791-181881

Rubber Plug

$

$

Not available

14

MTD 791-181882

Housing set

$

$

Not available

15

MTD 791-181345

Housing Screw

Note: (8 required)

$4.49

$

In Stock, only 4 left!

0

16

MTD 791-181883

Anti-Rotation Screw

$

$

Not available

17

MTD 791-181166

Drive Shaft Assembly

$28.99

$

Usually ships in 3-6 days

0

18

MTD 791-181992

Drive Shaft Housing Assembly

$

$

Not available

19

MTD 791-612605

Hanger
(Superseded to 731-08926)

$2.99

$

In Stock, only 3 left!

0

20

MTD 791-181616B

Coupler
(Superseded to 753-1190)

Note: (includes items 21-24)

$23.99

$

In Stock, only 1 left!

0

21

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

22

MTD 791-181618B

Adjustment Knob
(Superseded to 791-181981)

$

$

Not available

23

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

24

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 7

0

25

MTD 753-04352

Extension Boom and Flex Shaft Assembly

$80.99

$

In Stock, Qty 5

0

26

MTD 753-1214

Anti-Rotation Screw

$

$

Not available

MTD 791-181167

Allen Wrench 9/64"

Note: Not Shown

$

$

Not available

MTD 791-682075B

Shoulder Harness

Note: Not Shown

$38.99

$

Usually ships in 3-6 days

0
