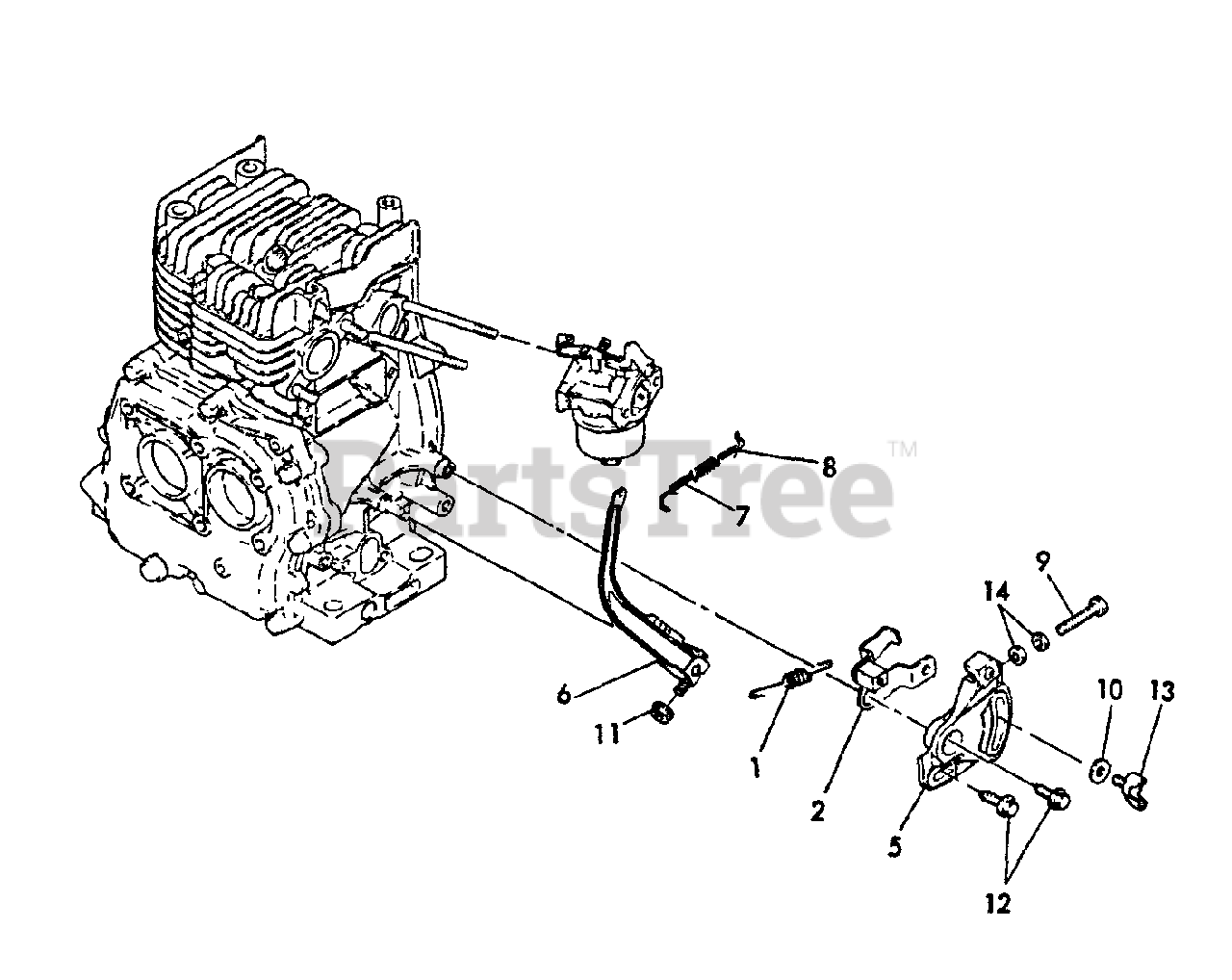

TP-3000 - Echo Trash Pump Throttle, Governor Lever Parts Diagram

Trash Pump

Throttle, Governor Lever Parts Diagram

  • Title
1

Echo Y16071066020

SPRING, REGULATOR
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16065066050

REGULATOR HANDLE ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16061066100

BRACKET, REGULATOR
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16071066151

LEVER, GOVERNOR
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16061066201

LINK, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

8

Echo Y16071066220

SPRING
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16061166440

BOLT
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16072013730

WASHER - 6
(Superseded to Discontinued)

$

$

Not available

11

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

12

Echo Y26476060202

BOLT - 6X20
(Superseded to Discontinued)

$

$

Not available

13

Echo Y26645060152

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

14

Echo Y26756060002

LOCKNUT - 6 -- PLATED
(Superseded to Discontinued)

$

$

Not available
