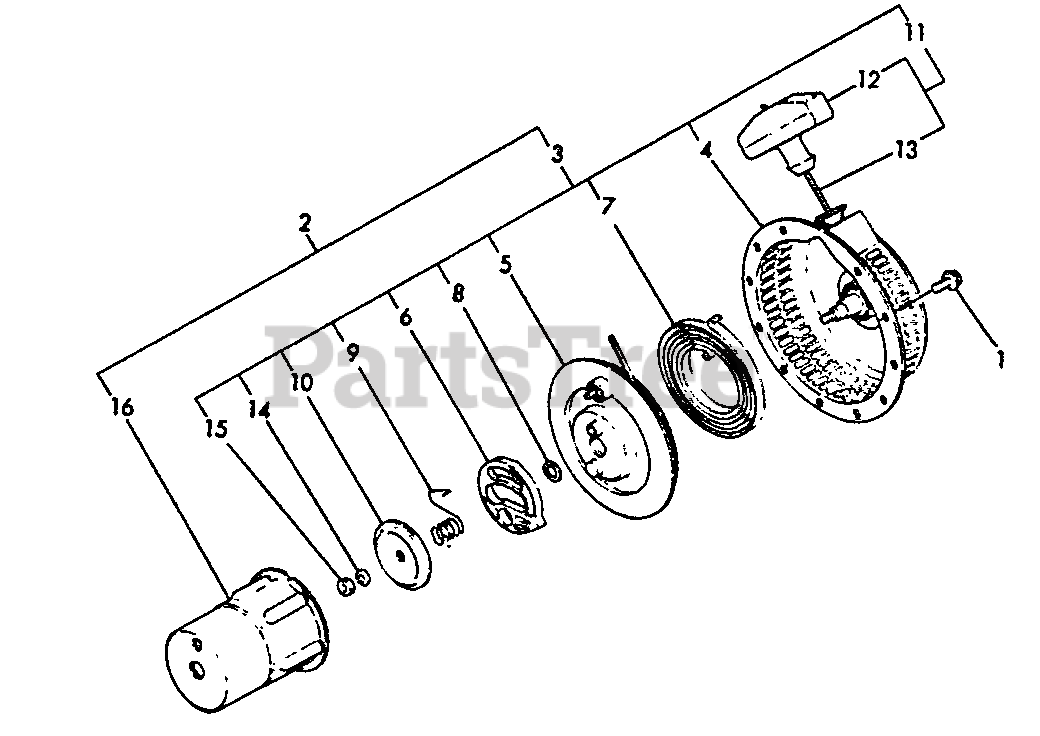

TP-3000 - Echo Trash Pump Starter Parts Diagram

Trash Pump

Starter Parts Diagram

  • Title

1

Echo Y26106060082

BOLT - 6X8 -- PLATED

$0.99

$

Usually ships in 2-4 days

0

2

Echo Y16074076050

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16074076250

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16074076510

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16071076520

PULLEY
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16061076530

RATCHET

$12.99

$

In Stock, only 1 left!

0

7

Echo Y16071076540

SPRING

$39.99

$

Usually ships in 2-4 days

0

8

Echo Y16061076550

WASHER, THRUST
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16074076560

SPRING, FRICTION

$2.49

$

Usually ships in 2-4 days

0

10

Echo Y16061076580

PLATE, FRICTION
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16026076610

STARTER ROPE ASSY
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16026076620

GRIP, STARTER
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16026076630

ROPE, STARTER
(Superseded to Discontinued)

$

$

Not available

14

Echo Y22217060000

LOCKWASHER - 6
(Superseded to Discontinued)

$

$

Not available

15

Echo Y26716060002

NUT - 6
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16071076590

PULLEY, STARTER
(Superseded to Discontinued)

$

$

Not available
