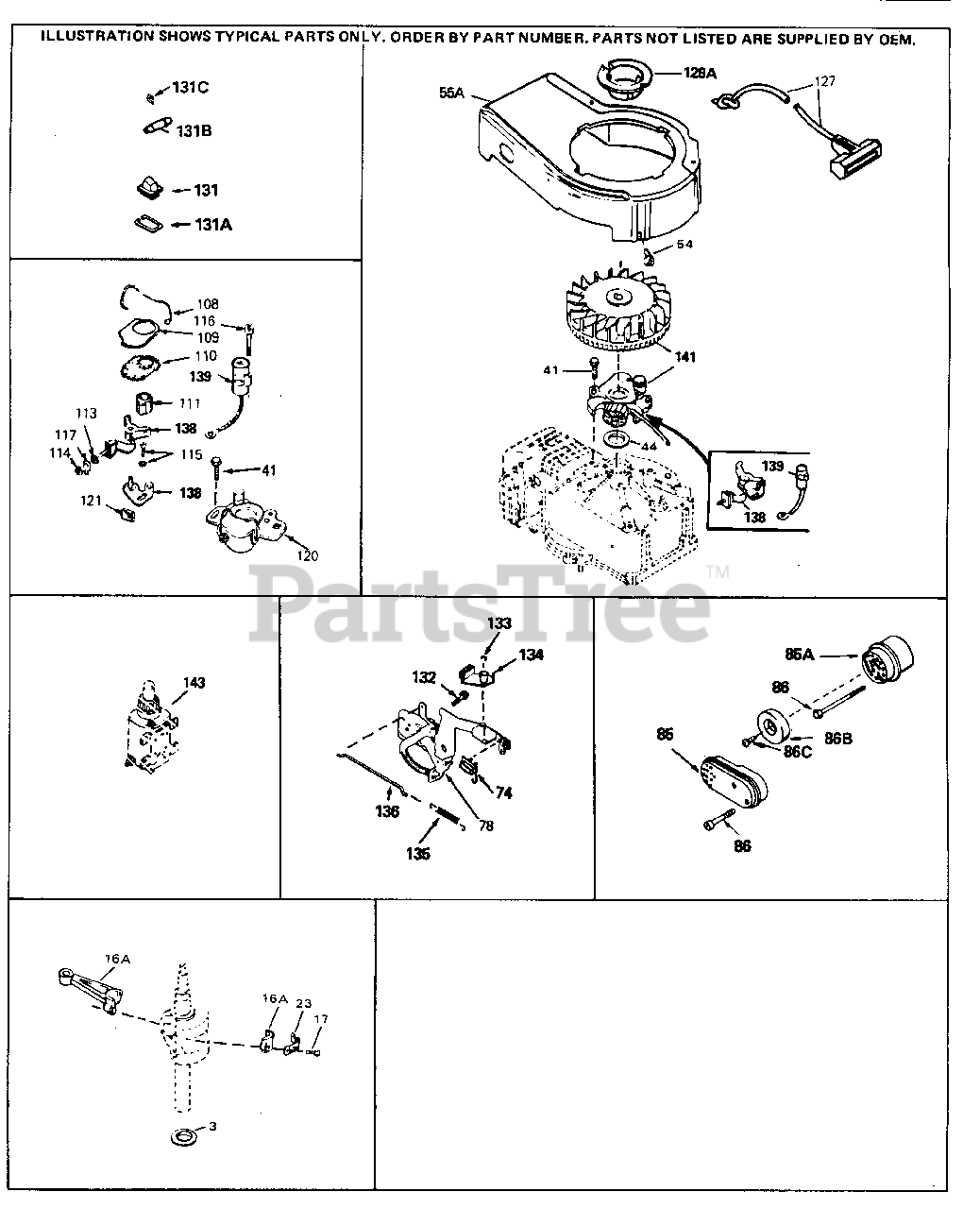

TNT120-12004 - Tecumseh Engine Engine Parts List #2 Parts Diagram

Engine

Engine Parts List #2 Parts Diagram

  • Title

3

Tecumseh 32323

Washer, Thrust

$8.49

$

Usually ships in 3-12 days

0

16A

Tecumseh 32875

Rod Assy., Connecting (Incl. 17)
(Superseded to 32875A)

$47.99

$

In Stock, only 1 left!

0

17

Tecumseh 32610A

Bolt, Connecting rod

$1.99

$

In Stock, Qty 6

0

23

Tecumseh 32609

Plate, Lock Used on early production with No. 32610 connecting rod bolt. D onot use with No. 32610A locking type bolt.

$0.99

$

Usually ships in 3-12 days

0

41

Tecumseh 650489

Screw, 1/4-20 x 5/8"

$

$

Not available

54

Tecumseh 650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

55A

Tecumseh 33907A

Housing, Blower

$

$

Not available

74

Tecumseh 610973

Terminal Assy. (Use as required)

$3.99

$

In Stock, Qty 5

0

127

Tecumseh 590343

Rope Assy., Starter

$5.49

$

Usually ships in 3-12 days

0

128A

Tecumseh 33914

Cup Early production only, not w/650 791

$

$

Currently unavailable

138

Tecumseh 30547A

Breaker Points (also available in Pac kaged Part #740037B)

$18.99

$

In Stock, only 1 left!

0

139

Tecumseh 30548B

Condenser (also available in Packaged Part #740037B)

$13.99

$

In Stock, Qty 9

0

141

Tecumseh 610900

Magneto (w/ring gear) NOTE: The comp lete magneto is not available as an a ssembly. The magneto number is shown for reference purposes only. Order componentparts individually, as shown in parts list. (Refer to Division 5, Section B, page 30 for br

$

$

Currently unavailable

143

Electric Starter Kit Supplied by OEM

$

$

Not available
